LevelOne 5-Port Gigabit PoE Switch, 61.6W, 802.3af PoE, 4 PoE Outputs, power adapter included

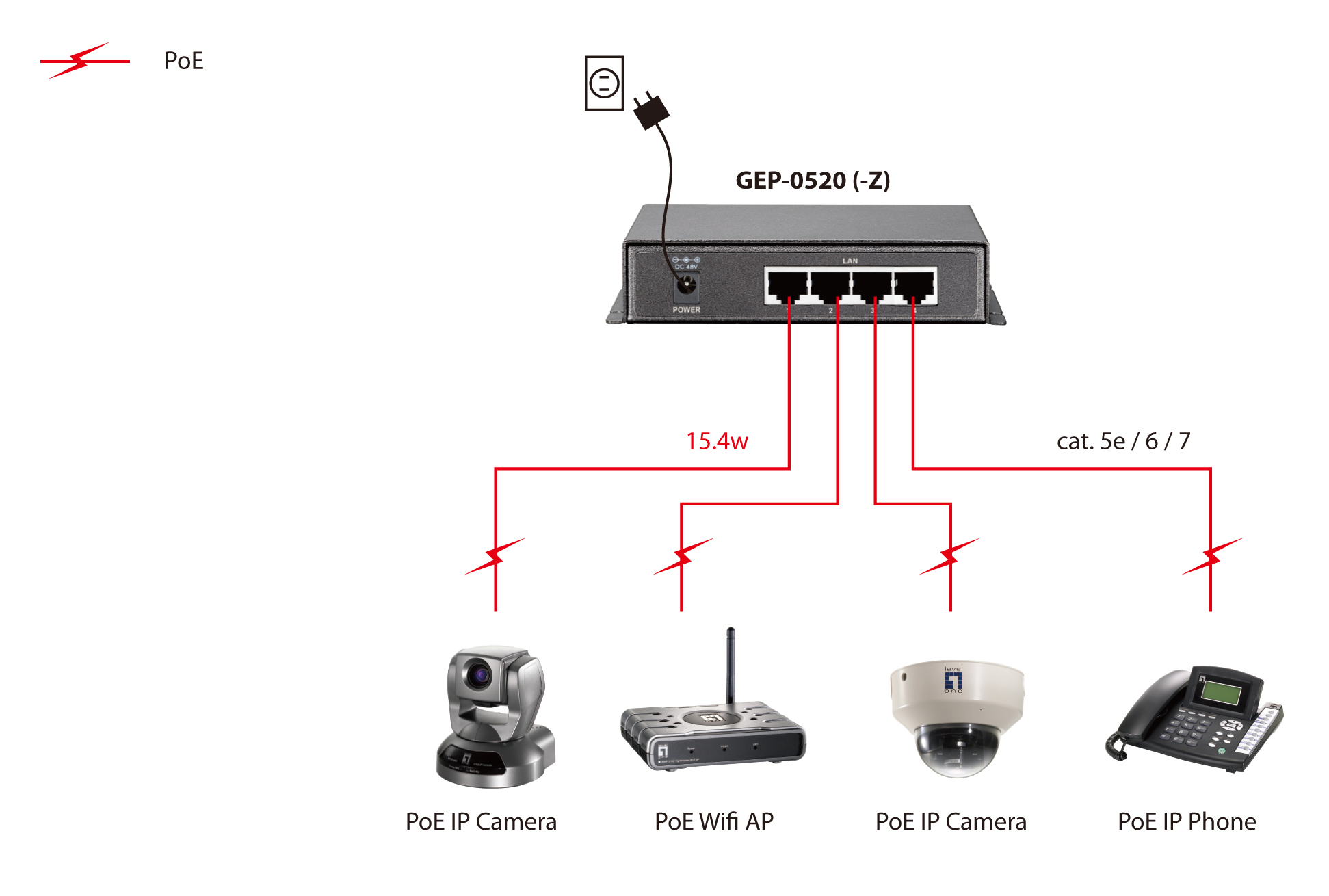

The LevelOne GEP-0520 provides 5 x 10/100/1000Mbps ports with IEEE 802.3af PoE supported. This switch is IEEE 802.3af compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 61.6W, up to 15.4W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially low power consumption during periods of low-link utilization. Moreover, it supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an inexpensive solution for PoE deploying infrastructure.- IEEE 802.3af PoE compliant to simplify deployment and installation- 10/100/1000Mbps wire speed transmission and reception- 9K jumbo frames to increase data transfer rates- Auto-detection and protection of non-standard PoE devices- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission- Total PoE power budget: 61.6W, up to 15.4W per port- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	5
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Power connector:	DC-in jack
Network
Networking standards:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
10G support:
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported:	Cat5, Cat5e, Cat6, Cat7
Data transmission
MAC address table:	2048 entries
Switching capacity:	10 Gbit/s
Store-and-forward:
Jumbo frames support:
Jumbo frames:	9000
Packet forwarding rate (1 Gbps):	1488000 pps
Packet forwarding rate (100 Mbps):	148000 pps
Packet forwarding rate (10 Mbps):	14880 pps
Design
Rack mounting:
Stackable:
Product colour:	Black
LED indicators:	Uplink, LAN, PoE, Power
Country of origin:	Taiwan
Certification:	FCC, CE
Power
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Power consumption (typical):	65 W
Power protection features:	Over current, Short circuit
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Power over Ethernet (PoE) ports quantity:	4
Power over Ethernet (PoE) power per port:	15.4 W
Total Power over Ethernet (PoE) budget:	61.6 W
Operational conditions
Operating temperature (T-T):	0 - 45 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	10 - 90%
Weight & dimensions
Width:	90 mm
Depth:	120 mm
Height:	28 mm
Weight:	800 g
Packaging data
Quick start guide:
AC adapter included:
Package width:	150 mm
Package depth:	80 mm
Package height:	235 mm
Package weight:	1.04 kg
Logistics data
Harmonized System (HS) code:	85176990
