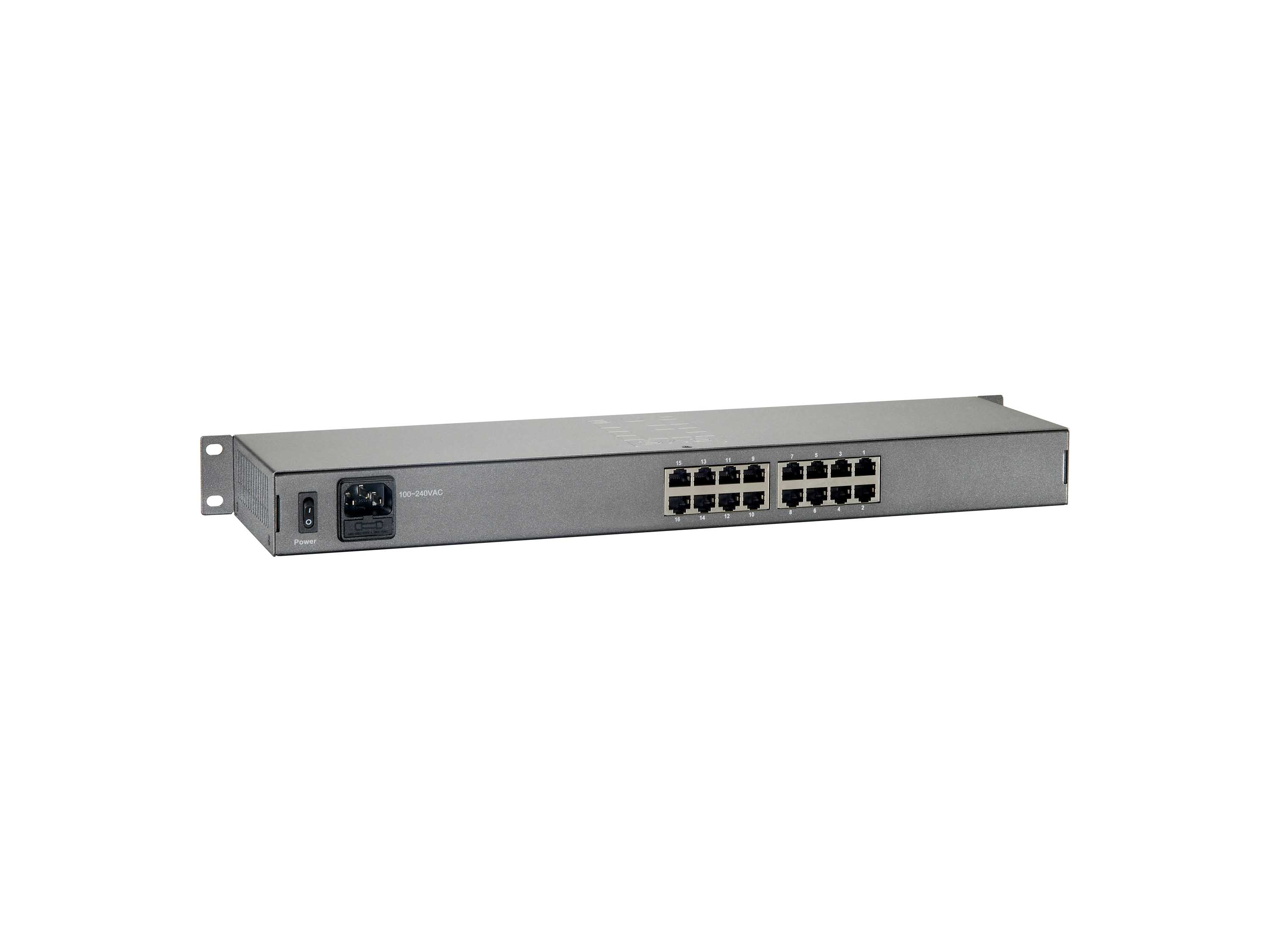

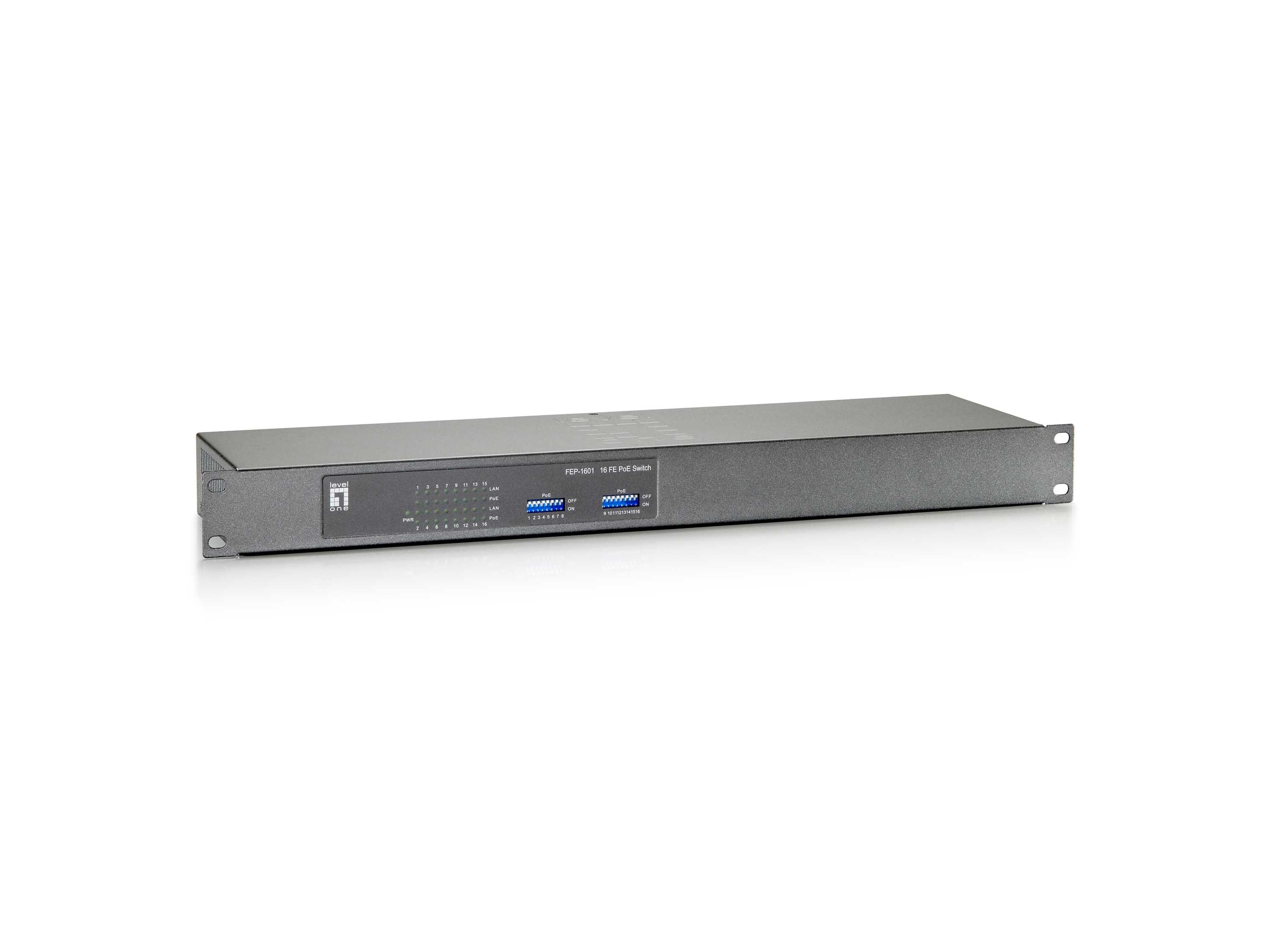

LevelOne 16-Port Fast Ethernet PoE Switch, 120W

FEP-1601 is a 16-port 10/100Mbps Fast Ethernet Switch with Power over Ethernet (PoE) capability. With 16 dip switches, each PoE port can be manually set for On-Off control. FEP-1601 supports up to 30W on each LAN port when the DIP switch is in the ON position . Using a LevelOne PoE repeater, it is possible to extend the connection a further 100 meters, or even daisy-chain several PoE repeaters together for greater distances. Dual 10/100Mbps ports can connect with other edge switches or NVR as uplink ports Key Features- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX- PoE on/off control per port by dip switches- 19-inch metal housing

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	16
Basic switching RJ-45 Ethernet ports type:	Fast Ethernet (10/100)
Network
Networking standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support:
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX
Full duplex:
Flow control support:
Auto MDI/MDI-X:
Auto-negotiation:
Data transmission
MAC address table:	4000 entries
Switching capacity:	3.2 Gbit/s
Store-and-forward:
Packet forwarding rate (100 Mbps):	148000 pps
Packet forwarding rate (10 Mbps):	14880 pps
Design
Rack mounting:
Product colour:	Grey
LED indicators:	Activity, PoE, Power
On/off switch:
Country of origin:	Taiwan
Certification:	FCC, CE, RoHS
Performance
Buffer size:	160 KB
Power
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Input current:	5 A
Power consumption (typical):	120 W
Power protection features:	Over current
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Power over Ethernet (PoE) ports quantity:	16
Power over Ethernet (PoE) power per port:	30 W
Total Power over Ethernet (PoE) budget:	112 W
Operational conditions
Operating temperature (T-T):	0 - 45 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	10 - 90%
Weight & dimensions
Width:	480 mm
Depth:	118 mm
Height:	44 mm
Weight:	2.2 kg
Packaging data
Cables included:	AC
Manual:
Package type:	Box
Package width:	222 mm
Package depth:	146 mm
Package height:	78 mm
Package weight:	400 g
Logistics data
Master (outer) case width:	420 mm
Master (outer) case length:	310 mm
Master (outer) case height:	260 mm
Harmonized System (HS) code:	85176990
Master (outer) case gross weight:	17 kg
Products per master (outer) case:	10 pc(s)
