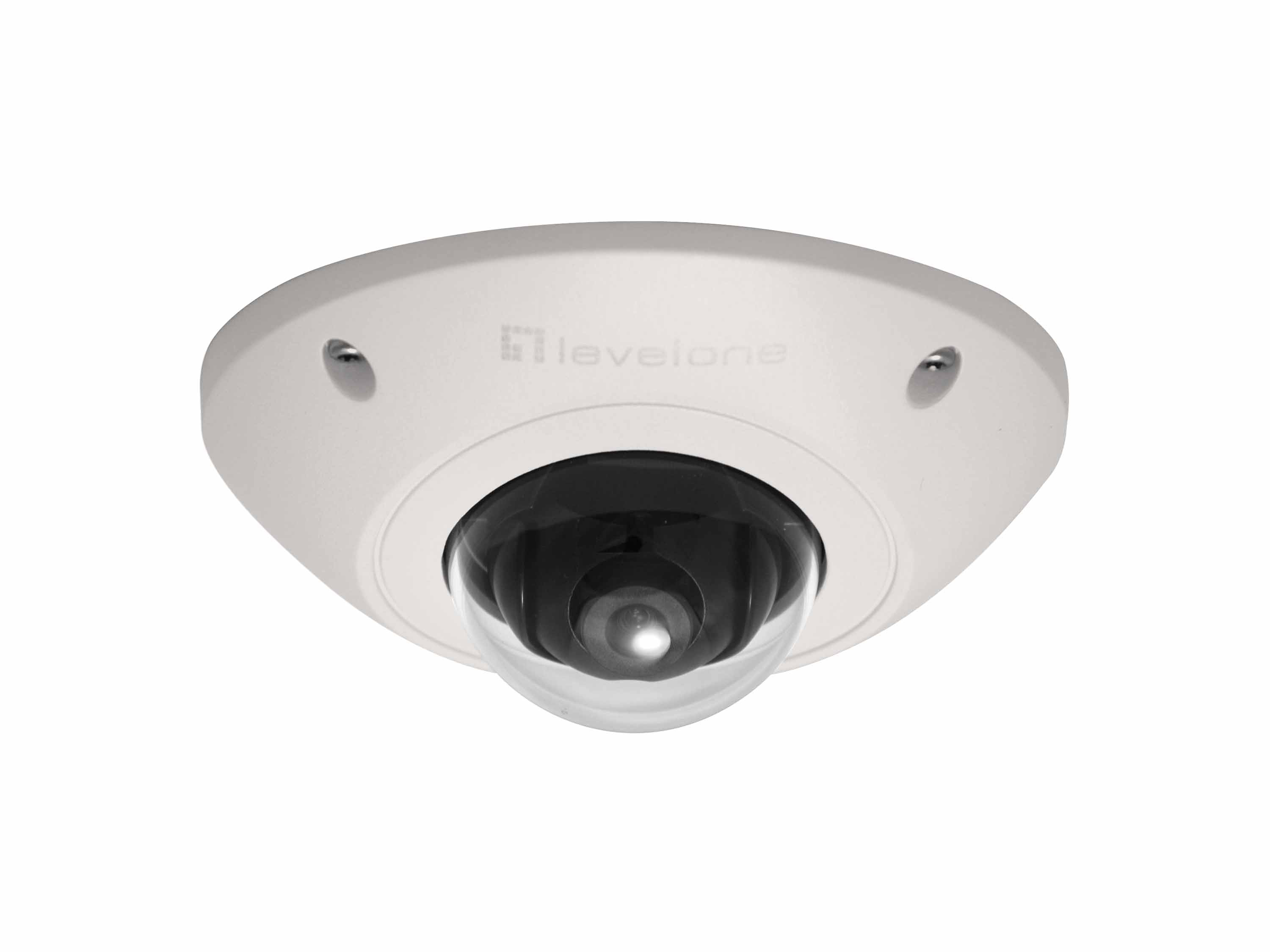

LevelOne GEMINI Fixed Dome IP Network Camera, 2-Megapixel, 802.3af PoE, Vandalproof, Indoor/Outdoor

The LevelOne FCS-3073 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP66 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3073 offers 2-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.

Performance
Type:	IP security camera
Placement supported:	Indoor & outdoor
Connectivity technology:	Wired
PTZ control:
Wide Dynamic Range (WDR):
Day/night mode:
Certification:	CE, FCC, ONVIF
Design
Mounting type:	Ceiling
Product colour:	White
Form factor:	Dome
Protection features:	Vandal proof
International Protection (IP) code:	IP66
IK code:	IK10
Weatherproof:
Country of origin:	China
Camera
Minimum illumination:	0.001 lx
Field of view (FOV) angle:	78°
Camera shutter speed:	1 - 1/10000 s
Image sensor
Sensor type:	CMOS
Optical sensor size:	25.4 / 2.8 mm (1 / 2.8")
Progressive scan:
Lens system
Number of lenses:	1
Focus adjustment:	2.0
Fixed focal length:	6 mm
Night vision
Night vision:
Video
Maximum resolution:	1920 x 1080 pixels
Total megapixels:	2 MP
Video formats supported:	AVI
Video compression formats:	H.264, M-JPEG
Supported graphics resolutions:	1280 x 1024 (SXGA), 1920 x 1080 (HD 1080)
Supported video modes:	1080p
Frame rate:	30 fps
Video streaming:
Noise reduction:
Full HD:
Image quality adjustment:	Brightness, Contrast, Saturation, Sharpness
Flip & mirror:
Portrait mode:
Privacy masking:
Time stamp overlay:
Text caption overlay:
Back Light Compensation (BLC):
Network
Ethernet LAN:
Wi-Fi:
Bluetooth:
Ethernet interface type:	Fast Ethernet
Networking standards:	IEEE 802.3, IEEE 802.3af, IEEE 802.3u
Supported network protocols:	IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS
Cabling technology:	10/100Base-T(X)
Number of users:	20 user(s)
Quality of Service (QoS) support:
Storage
Built-in HDD:
Card reader integrated:
Compatible memory cards:	MicroSD (TransFlash), MicroSDHC, SD
Maximum memory card size:	16 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports:	1
Security
Video motion detection:
Active tampering alarm:
IP address filtering:
HTTPS encryption:
Motion sensor:
Management features
Reset button:
Power
Power source type:	PoE
Power consumption (typical):	3.5 W
Power over Ethernet (PoE):
Operational conditions
Operating temperature (T-T):	-30 - 60 °C
Operating relative humidity (H-H):	10 - 90%
System requirements
Windows operating systems supported:	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Weight & dimensions
Width:	111 mm
Depth:	111 mm
Height:	82 mm
Weight:	500 g
Package width:	134 mm
Package depth:	134 mm
Package height:	108 mm
Package weight:	500 g
Package type:	Box
Packaging content
Number of cameras:	1
Screws included:
Resource CD:
Technical details
Sustainability certificates:	RoHS
Logistics data
Harmonized System (HS) code:	85258900
Master (outer) case width:	345 mm
Master (outer) case length:	288 mm
Master (outer) case height:	568 mm
Products per master (outer) case:	24 pc(s)
