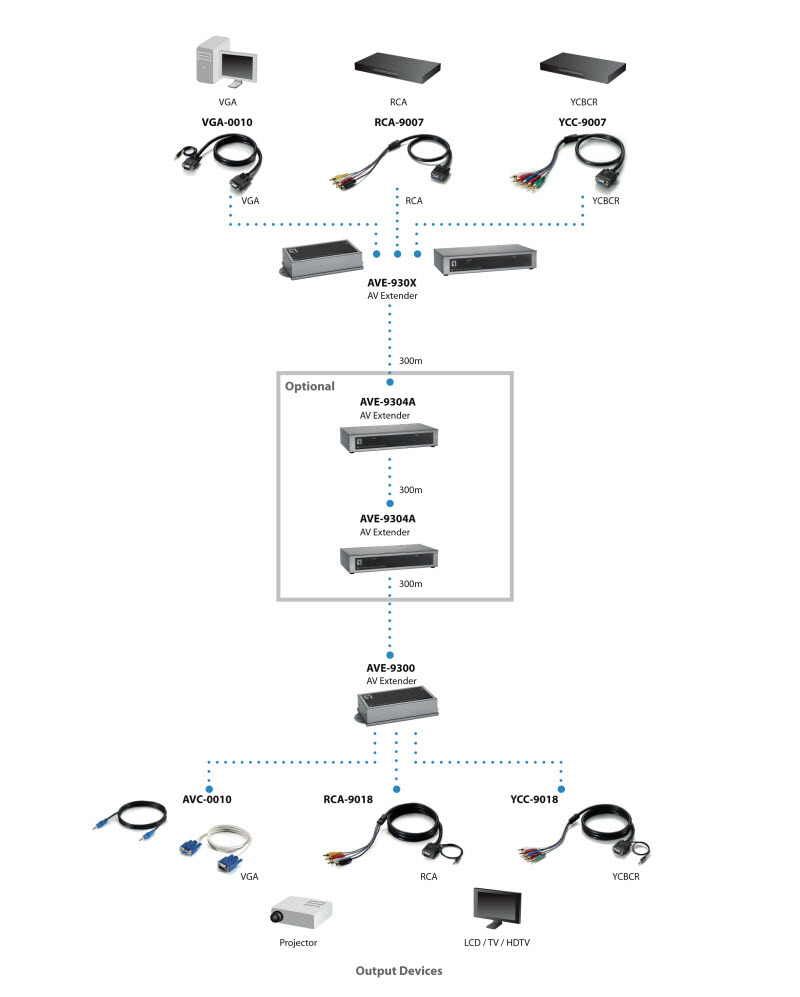

Product OverviewThe LevelOne AVE-93xx series of Cat.5 Audio/Video Extenders is an ideal PC, DVD player broadcast solution to transmit audio and video signals via Cat.5/6/7 cabling to multiple remote plasma or LCD monitor/screen.Cost-effective Audio/Video Broadcasting over EthernetThe AVE-93xx series make use of inexpensive Ethernet cabling to transmit and receive HDTV audio and video signals. Signals can be transmitted up to 300 meters away from the transmitting unit.Flexible Multi-Location Audio/Video BroadcastingThe AVE-9301, AVE-9304, AVE-9308 and AVE-9316 transmit Audio/Video from the controlling unit (player) via Cat. 5/6/7 cabling to remote monitors. The AVE-9300 receives the signal and translates it back to its original form making it possible for the remote monitor/screen to display the original signal.Cable Kits for Different ApplicationsThe units support VGA/SVGA/XGA TFT-LCD, LCDTV, PDP and DDC2B enabled projectors by using different format cable kits.- PC Cable KitVGA A/V with support for all VGA standards Max Resolution: 2048x1536 at 300m- TV Cable KitComposite/S-Video A/VSupports: 480i, 480p and 720i video formatEasy InstallationThe compact Cat.5/6/7 Audio/Video extenders easily fit on a desk or where space is limited. No software or interface cards are needed. All repeaters and transmitters are plug-and-play orientated for quick installation.The AVE-9304A can be cascaded to three levels to expand broadcasting locations and broadcasting distances up to 900 meters. The AVE-9304A and AVE-9300 features adjustable video gain and focus control for adjusting video signals that are extended over this distance.- Broadcast Audio/Video signals over Ethernet Cable- Supports 2048x1536 VGA resolution over 300m- Flexible multi-location Audio/Video broadcasting- Flexible cable kit choices for different video applications- Units can be stacked into 3 layer stackable units for extending broadcast signal to 900m away- Repeater and Receiver units feature Video Gain and Focus control
| Features | |
| Type: | AV transmitter |
| Maximum resolution: | 2048 x 1536 pixels |
| Cable types supported: | Cat5, Cat6, Cat7 |
| Maximum transfer distance: | 300 m |
| Audio system: | stereo |

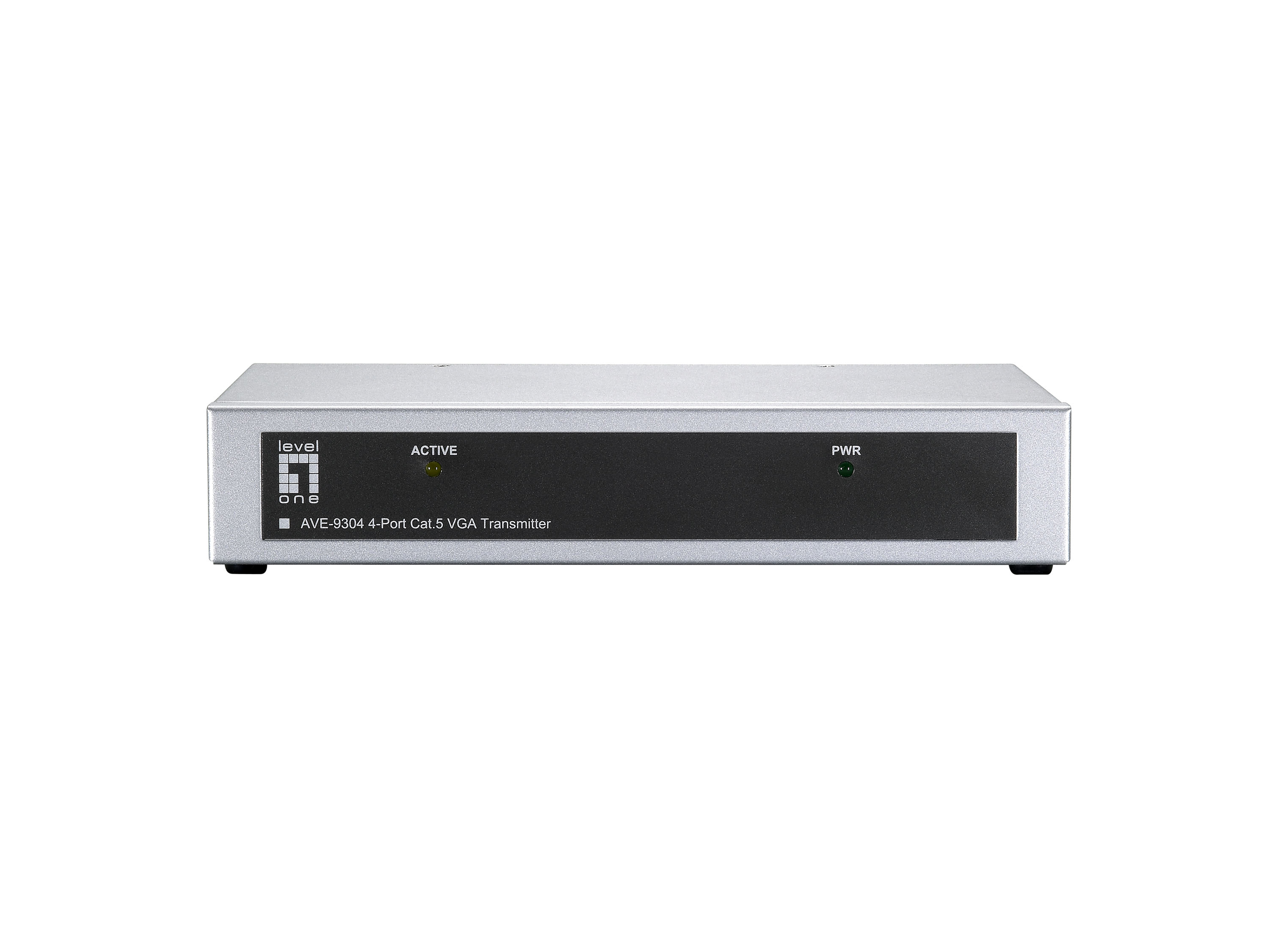

| LED indicators: | Activity, Power |
| Supported video modes: | 480i, 480p, 720p, 1080p |
| Product colour: | Black, Silver |
| Ports & interfaces | |

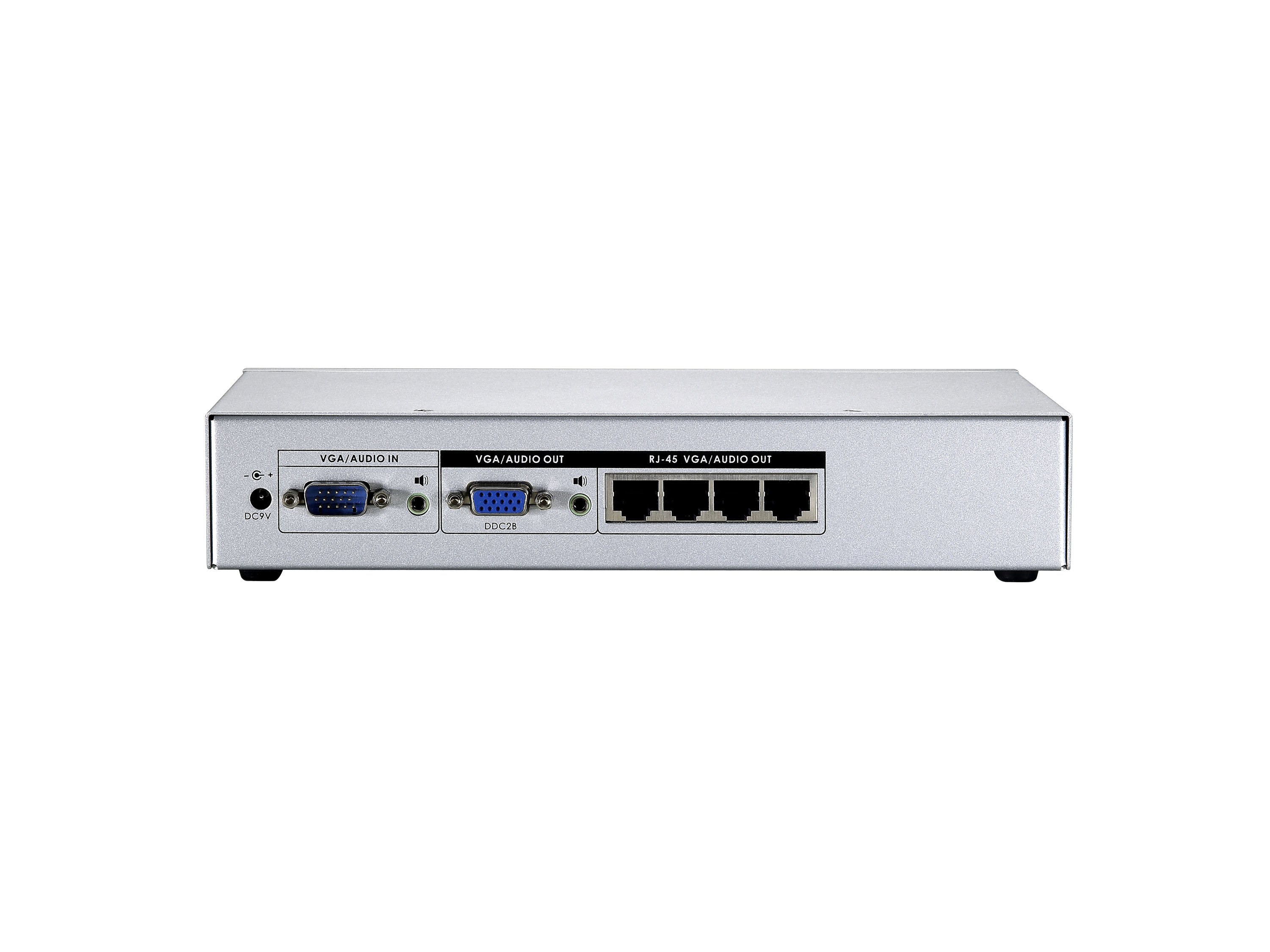

| RJ-45 output ports: | 4 |
| VGA (D-Sub) input ports: | 1 |
| VGA (D-Sub) output ports: | 1 |
| Audio input: | 1 |
| Audio output: | 1 |
| Power | |
| Operating voltage: | 5 V |
| Current: | 2 A |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Weight & dimensions | |
| Transmitter dimensions (WxDxH): | 240 x 130 x 144 mm |
| Packaging data | |
| Package width: | 195 mm |
| Package depth: | 370 mm |
| Package height: | 85 mm |
| Package weight: | 2.18 kg |
| Packaging content | |
| AC adapter included: |  |
| Manual: | |
| Technical details | |
| Country of origin: | Taiwan |
