Lenovo 7ZT7A00546 network card Internal Fiber 10000 Mbit/s

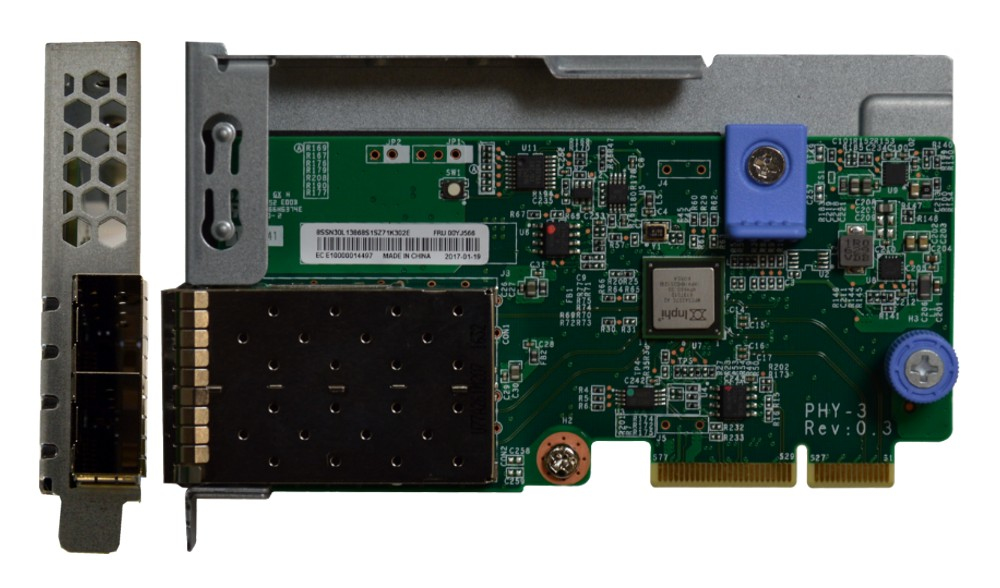

The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.

Ports & interfaces
Connectivity technology:	Wired
Host interface:	PCI Express
Interface:	Fiber
Fiber ports quantity:	2
Network
Maximum data transfer rate:	10000 Mbit/s
Networking standards:	IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x
Ethernet LAN:
Ethernet LAN data rates:	10000 Mbit/s
Security algorithms:	SNMP
Jumbo frames support:
Jumbo frames:	9728
Quality of Service (QoS) support:
VLAN tagging:
Design
Internal:
Product colour:	Green, Metallic
Chipset:	Intel® C624
Certification:	UL recognized to UL60950-1 2nd Edition FCC Rules, Part 15, Class A Australian EMC Framework (RCM) Japan VCCI, Class A Industry Canada, ICES-003, Class A EU (CE Mark) Korea KC-RRA, Class A
Compatible products:	SR630 SR650 SR850 SR860 SR950
System requirements
Other operating systems supported:	VMware vSphere ESXi
Server operating systems supported:	SUSE Linux Enterprise Server 11, SUSE Linux Enterprise Server 12, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2016
Sustainability
Sustainability certificates:	RoHS
Logistics data
Harmonized System (HS) code:	85176990
Other features
Flow control support:
Number of VLANs:	4096
Intel Virtual Machine Device Queues (VMDq):
PCI-SIG* SR-IOV Capable:
Intel Data Direct I/O Technology:
Receive Side Scaling (RSS):
