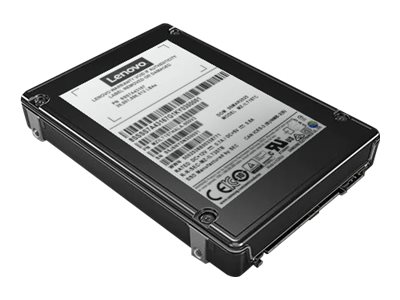

Lenovo 4XB7A80319 internal solid state drive 2.5" 1920 GB SAS V-NAND TLC

The ThinkSystem PM1653 Read Intensive SAS 24Gb SSDs, in capacities of up to 30.72 TB, are next-generation high-performance 24Gb SAS self-encrypting SSDs (SEDs) suitable for a wide range of applications of running on ThinkSystem servers.Unlike 6 Gb/s SATA drives, the 24 Gb/s SAS interface on these drives supports full duplex data transfer for higher performance, and enterprise-level error recovery for better availability. By combining the enhanced reliability of Samsung NAND flash memory silicon with NAND Flash management technologies, PM1653 SSDs deliver endurance of up to 1 drive writes per day (DWPD) for 5 years, which is suitable for many enterprise applications with read-intensive storage characteristics.Self-encrypting drives (SEDs) provide benefits by encrypting data on-the-fly at the drive level with no performance impact, by providing instant secure erasure thereby making the data no longer readable, and by enabling auto-locking to secure active data if a drive is misplaced or stolen from a system while in use. These features are essential for many businesses, especially those storing customer data.

Features
SSD form factor:	2.5"
SSD capacity:	1920 GB
Interface:	SAS
Memory type:	V-NAND TLC
NVMe:
Component for:	Server/workstation
Hardware encryption:
Data transfer rate:	24 Gbit/s
Random read (4KB):	420000 IOPS
Random write (4KB):	95000 IOPS
Read latency:	120 µs
Write latency:	45 µs
S.M.A.R.T. support:
Hot-swap:
Mean time between failures (MTBF):	2000000 h
Certification:	UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI
Power
Power consumption (read):	11.5 W
Power consumption (write):	14.7 W
Operational conditions
Operating temperature (T-T):	0 - 70 °C
Storage temperature (T-T):	-40 - 85 °C
Operating relative humidity (H-H):	5 - 95%
Maximum operating altitude:	4572 m
Technical details
Sustainability certificates:	RoHS
Weight & dimensions
Width:	70 mm
Depth:	100 mm
Height:	15 mm
Weight:	160 g
