Products description

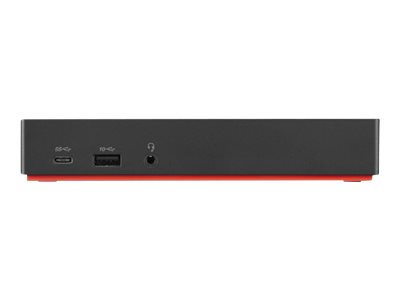

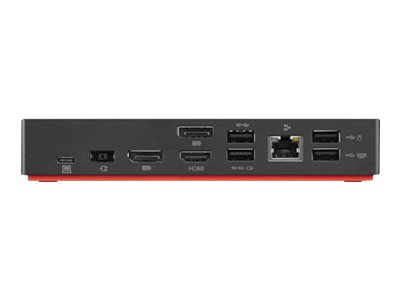

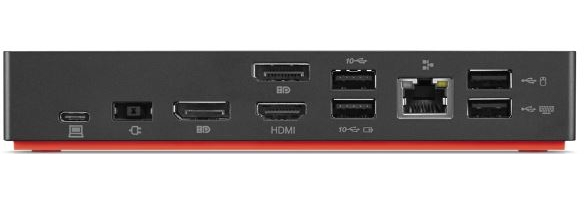

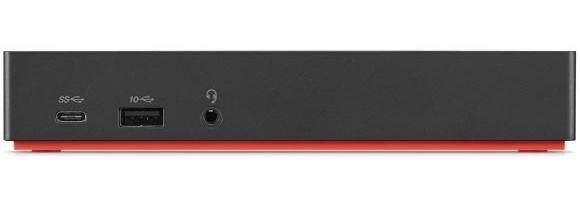

ThinkPad USB-C Dock Gen 2 (40AS), next generation of USB-C one-cable universal docking solutions. Supports vivid 4K displays or multiple 1080p screens, charge your notebook, connect legacy USB peripherals, wired networks and rapidly charge your mobile devices.
| Ports & interfaces | |
| Connectivity technology: | Wired |
| Host interface: | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| HDMI ports quantity: | 1 |
| Microphone in: | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI version: | 2.0 |
| DisplayPorts quantity: | 2 |
| Combo headphone/mic port: | Yes |
| Headphone connectivity: | 3.5 mm |
| Network | |
| Ethernet LAN: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Wake-on-LAN ready: | Yes |
| Performance | |
| Product colour: | Black |
| Card reader integrated: | No |
| Data transfer rate: | 10 Gbit/s |
| HD type: | 4K Ultra HD |
| Maximum digital resolution: | 3840 x 2160 pixels |
| Number of displays supported: | 3 |
| Cable lock slot: | Yes |
| Plug and Play: | Yes |
| Brand compatibility: | Lenovo |
| Compatibility: | ThinkPad T490 (20N2, 20N3, 20Q9, 20QH), ThinkPad T590 (20N4, 20N5), ThinkPad X280 (20KE,20KF), ThinkPad T480 (20L5,20L6), ThinkPad X1 Carbon 6th (20KH, 20KG), ThinkPad X270 (20HM, 20HN, 20K5, 20K6), ThinkPad T480s (20L7,20L8) |
| Certification: | FCC/ICES, CE, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Serbia Kvalitet, LoA, Israel SII, Ukraine DoC, NOM |
| Power | |
| Power source type: | DC |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| Power supply: | 90 W |
| Software | |
| Windows operating systems supported: | Windows 10, Windows 7 |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 35 °C |
| Operating relative humidity (H-H): | 20 - 95% |
| Weight & dimensions | |
| Width: | 171 mm |
| Depth: | 80 mm |
| Height: | 30.8 mm |
| Weight: | 325 g |
| Packaging data | |
| Quantity per pack: | 1 pc(s) |
| Package width: | 210 mm |
| Package depth: | 158 mm |
| Package height: | 75 mm |
| Package weight: | 960 g |
| Packaging content | |

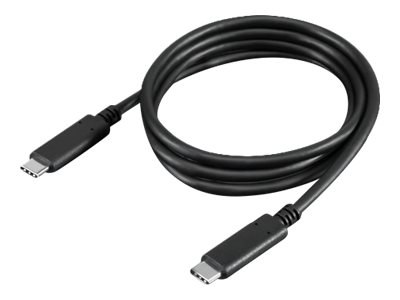

| Cables included: | AC, USB Type-C |
| AC adapter included: | Yes |
| Manual: | Yes |
| Logistics data | |
| Harmonized System (HS) code: | 84733020 |
