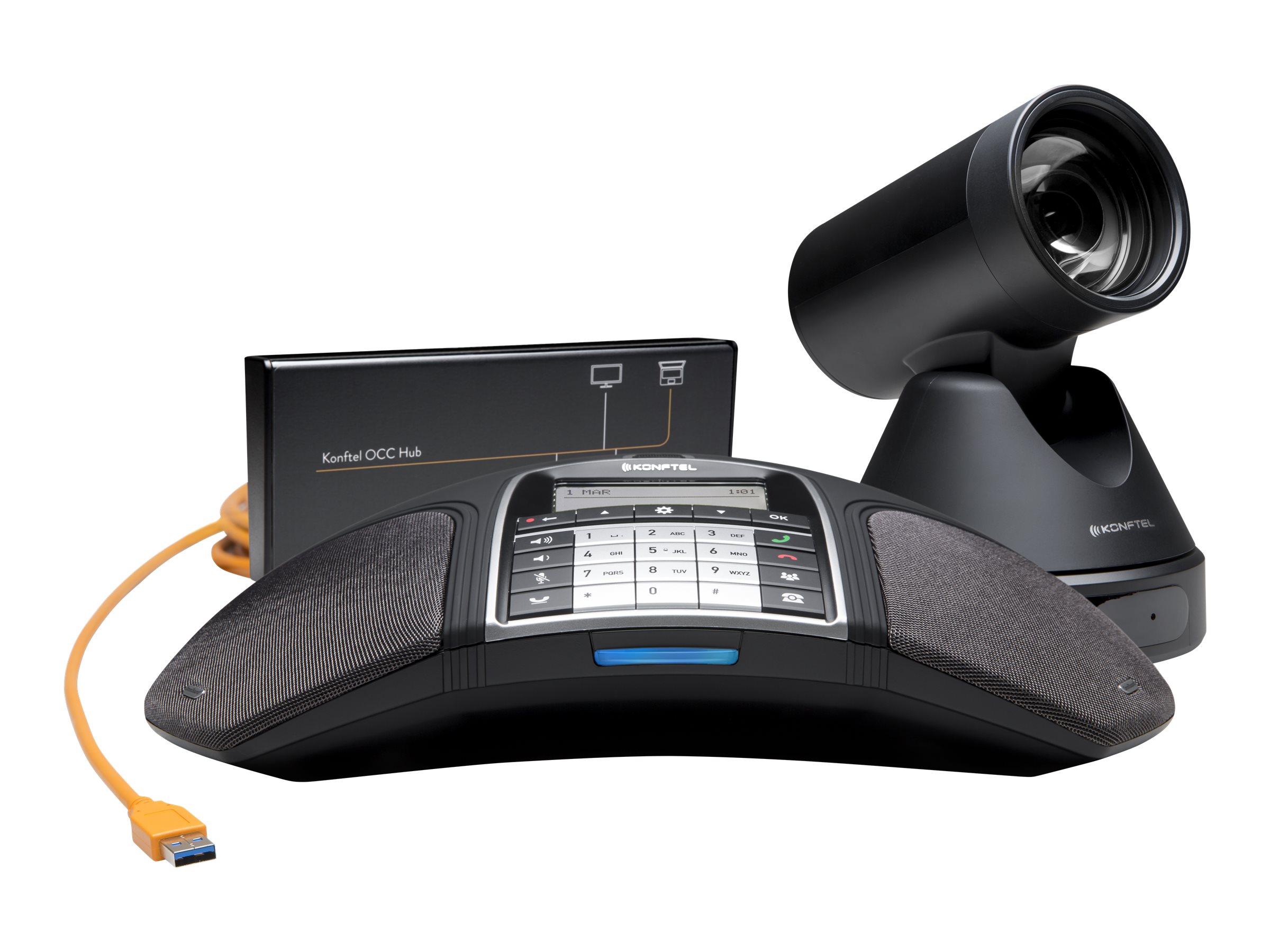

Konftel C50300IPx Hybrid (video kit EU)

Konftel C50300IPx Hybrid is a flexible range of premium video collaboration solutions for small to medium meeting rooms, combining the Konftel Cam50 PTZ conference camera and a Konftel 300IPx with OmniSound® audio quality. Optional audio expansion caters for up to extra large rooms. The Konftel OCC Hub brings the whole kit together, so a single USB cable is all you need to connect the camera, the conference phone and the room s screen to the collaboration app on your laptop. The hybrid concept also delivers the freedom to welcome participants via regular phone calls.

Performance
Product type:	Group video conferencing system
Number of persons:	20 person(s)
Product colour:	Black
Pan range:	0 - 170°
Tilt angle range:	0 - 60°
PTZ control:
Video
HD type:	Full HD
Supported video modes:	1080p
Supported graphics resolutions:	1920 x 1080 (HD 1080)
Maximum frame rate:	60 fps
Video formats supported:	H.264, MJPG, YUY2
Resolution at capture speed:	1920x1080@60fps
Audio
Noise reduction:
Echo cancellation:
Ports & interfaces
USB connector type:	Mini-USB B
USB 2.0 ports quantity:	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity:	1
Interface module
Interface module HDMI ports quantity:	1
Interface module USB 2.0 ports quantity:	1
Network
Ethernet LAN:
Ethernet LAN data rates:	10,100 Mbit/s
Networking standards:	IEEE 802.3ab, IEEE 802.3af
Security algorithms:	EAP-TLS, HTTPS
Camera
Megapixel (approx.):	2 MP
Image sensor size:	1/2.7"
Optical zoom:	12x
Diagonal field of view:	72.5°
Focus adjustment:	Auto
Number of camera presets:	255
Display
Built-in display:
Display:	LCD
Display resolution:	128 x 64 pixels
Microphone
Microphone frequency:	200 - 20000 Hz
Microphone direction type:	Omnidirectional
Sound pressure level (max):	90 dB
Logistics data
Harmonized System (HS) code:	85176990
Sustainability
Sustainability certificates:	Low Voltage Directive (LVD), REACH, RoHS, WEEE
Operational conditions
Operating temperature (T-T):	5 - 40 °C
Operating relative humidity (H-H):	20 - 80%
Power
AC input voltage:	100 - 240 V
Certificates
Certification:	EMC: 2014/30/EU, EMC Regulations 2016, LVD: 2014/35/EU, Electrical Equipment (Safety) Regulations 2016, WEEE: 2012/19/EC, RoHS: 2011/65/EU, REACH: EC 1907/2006
Weight & dimensions
Speaker dimensions (WxDxH):	240 x 240 x 77 mm
Camera dimensions (WxDxH):	128.5 x 118 x 156.2 mm
Camera weight:	910 g
Weight:	3.97 kg
Package width:	400 mm
Package depth:	340 mm
Package height:	310 mm
Package weight:	5.78 kg
Packaging content
External interface module included:
Speaker included:
Camera included:
Manual:
Quick start guide:
