Konftel C20Ego (video kit)

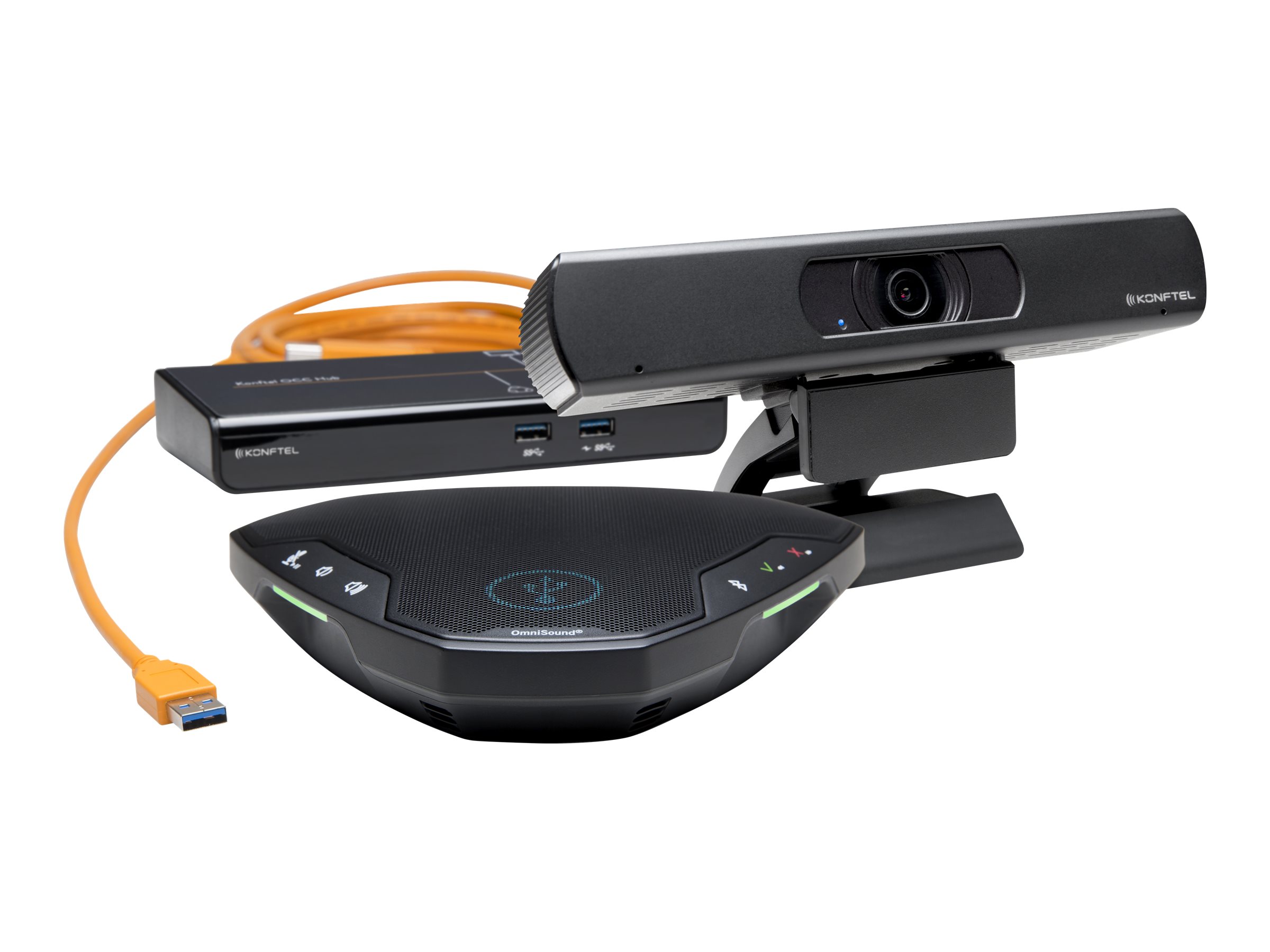

Konftel C20Ego is the perfect video collaboration solution for personal work spaces up to huddle rooms, combining the Konftel Cam20 4K conference camera and the brilliant Konftel Ego speakerphone with OmniSound® audio quality. The Konftel OCC Hub brings everything together into one convenient kit, so a single USB cable is all you need to connect the camera, the sound unit and the room s screen to the collaboration app on your laptop.

Performance
Product type:	Group video conferencing system
Number of persons:	6 person(s)
Product colour:	Black
On Screen Display (OSD) languages:	Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Bluetooth:
Bluetooth version:	4.0
PTZ control:
Video
HD type:	4K Ultra HD
Supported video modes:	2160p
Supported graphics resolutions:	3840 x 2160
Maximum frame rate:	30 fps
Video formats supported:	H.264, NV12, YUY2
Resolution at capture speed:	3840x2160@30fps
Video codecs:	H.264, MJPEG
Audio
Frequency range:	50 - 24000 Hz
Noise reduction:
Echo cancellation:
Ports & interfaces
USB connector type:	USB Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity:	1
Headphone outputs:	1
Camera
Digital zoom:	8x
Diagonal field of view:	123°
Focus adjustment:	Auto
Number of camera presets:	255
Display
Built-in display:
Display:	LCD
Display resolution:	128 x 60 pixels
Touchscreen:
Microphone
Microphone direction type:	Omnidirectional
Features
Telepresence:
Logistics data
Harmonized System (HS) code:	85176990
Sustainability
Sustainability certificates:	Low Voltage Directive (LVD), REACH, RoHS, WEEE
Operational conditions
Operating temperature (T-T):	5 - 40 °C
Operating relative humidity (H-H):	20 - 80%
Power
AC input voltage:	100 - 240 V
DC input voltage:	14 V
Certificates
Certification:	EN 60950-1:2006/A1:2010. EN 60950-1:2006/A12:2011. EN 60950-1:2006/A2:2013. IEC 60950-1:2005/A1:2009/A2:2013; EN 55022:2010. EN 55024:2010. EN 55032:2012. EN 61000-3-2:2014. EN 61000-3-3:2013. EN 300 328 V1.9.1:2015. EN 301 489-1 V1.9.2:2011. EN 301 489-17 V2.2.1:2012. EN 300 330
Weight & dimensions
Camera dimensions (WxDxH):	194 x 34 x 42 mm
Width:	145 mm
Depth:	135 mm
Height:	32 mm
Weight:	1.62 kg
Package width:	260 mm
Package depth:	300 mm
Package height:	150 mm
Package weight:	2.1 kg
Packaging content
Cables included:	USB
Remote control included:
Camera included:
Manual:
Quick start guide:
