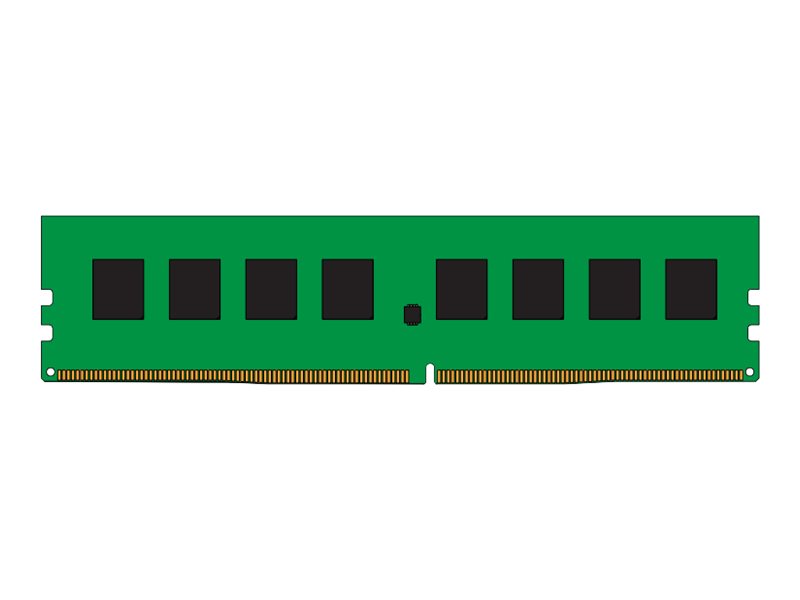

Kingston Technology KVR32N22S8/8BK memory module 8 GB 1 x 8 GB DDR4 3200 MHz

ValueRAM's KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Features
Internal memory:	8 GB
Memory layout (modules x size):	1 x 8 GB
Internal memory type:	DDR4
Memory clock speed:	3200 MHz
Component for:	PC/Server
Memory form factor:	288-pin DIMM
ECC:	No
Buffered memory type:	Unregistered (unbuffered)
CAS latency:	22
Memory ranking:	1
Memory voltage:	1.2 V
Module configuration:	1024M x 64
Row cycle time:	45.75 ns
Refresh row cycle time:	350 ns
Row active time:	32 ns
Programming power voltage (VPP):	2.5 V
JEDEC standard:	Yes
Operational conditions
Operating temperature (T-T):	0 - 85 °C
Storage temperature (T-T):	-55 - 100 °C
Sustainability
Sustainability certificates:	RoHS
Doesn't contain:	Halogen
Weight & dimensions
Width:	133.3 mm
Height:	31.2 mm
Logistics data
Harmonized System (HS) code:	84733020
