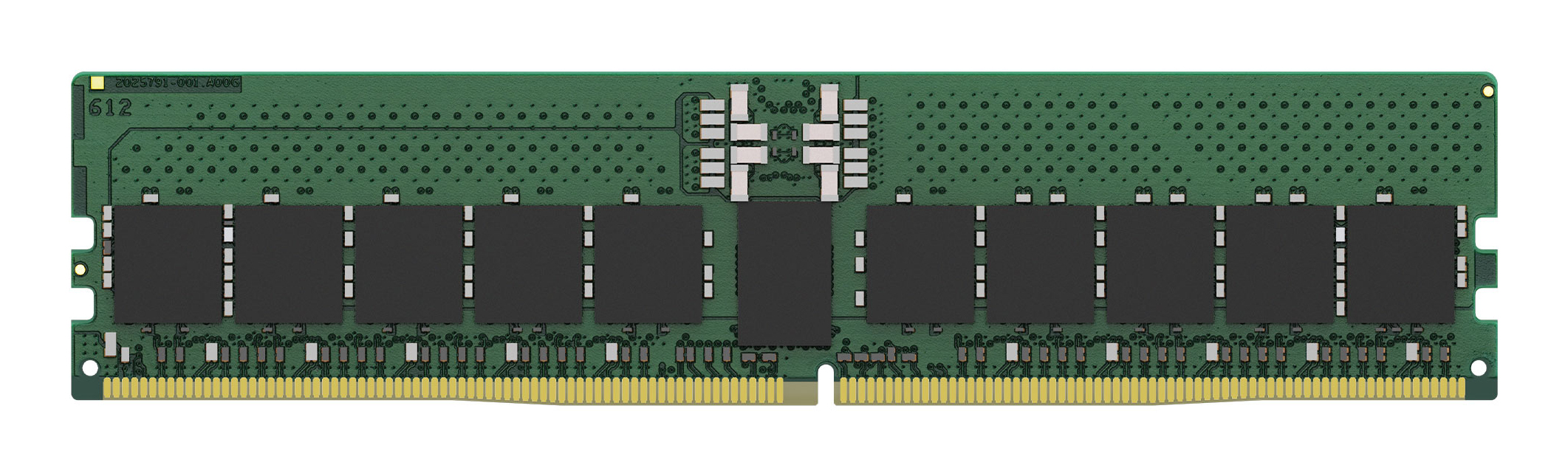

Kingston Technology 32GB DDR5 6400MT/s ECC Registered DIMM

Kingston's KSM64R52BD8-32MD is a 4G x 80-bit (32GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
Internal memory:	32 GB
Memory layout (modules x size):	1 x 32 GB
Internal memory type:	DDR5
Memory data transfer rate:	6400 MT/s
Component for:	Server
Memory form factor:	288-pin DIMM
ECC:	Yes
Buffered memory type:	Registered (buffered)
On-Die ECC:	No
CAS latency:	52
Memory ranking:	2
Memory voltage:	1.1 V
Row cycle time:	48 ns
Refresh row cycle time:	295 ns
Row active time:	32 ns
Row Precharge Time (TRP):	16
SPD profile:	Yes
Programming power voltage (VPP):	1.8 V
Lead plating:	Gold
JEDEC standard:	Yes
Operational conditions
Operating temperature (T-T):	0 - 95 °C
Storage temperature (T-T):	-55 - 100 °C
Technical details
Compliance certificates:	RoHS
Sustainability
Doesn't contain:	Halogen
Weight & dimensions
Width:	133.3 mm
Height:	31.2 mm
Other features
Chips organisation:	2Rx8
