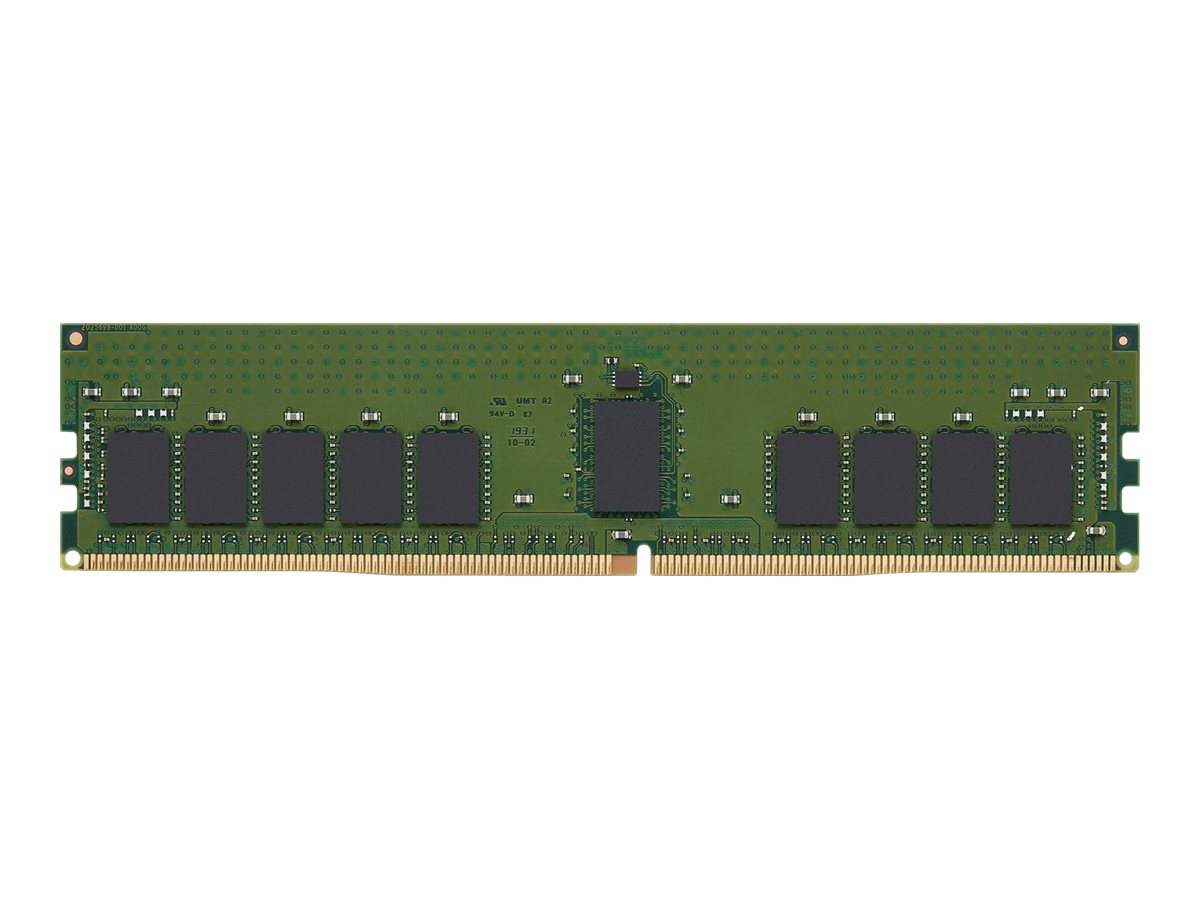

Kingston Technology KSM26RD8/16MRR memory module 16 GB 1 x 16 GB DDR4 2666 MHz ECC

Kingston's KSM26RD8/16MRR is a 2G x 72-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM) registered w/ parity, 2Rx8, ECC, memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Features
Internal memory:	16 GB
Memory layout (modules x size):	1 x 16 GB
Internal memory type:	DDR4
Memory clock speed:	2666 MHz
Component for:	PC/Server
Memory form factor:	288-pin DIMM
ECC:
Buffered memory type:	Registered (buffered)
CAS latency:	19
Memory ranking:	2
Memory voltage:	1.2 V
Module configuration:	2048M x 72
Row cycle time:	46.25 ns
Refresh row cycle time:	350 ns
Row active time:	32 ns
Programming power voltage (VPP):	2.5 V
Lead plating:	Gold
Operational conditions
Operating temperature (T-T):	0 - 85 °C
Storage temperature (T-T):	-55 - 100 °C
Sustainability
Sustainability certificates:	RoHS
Weight & dimensions
Width:	133.3 mm
Height:	31.2 mm
