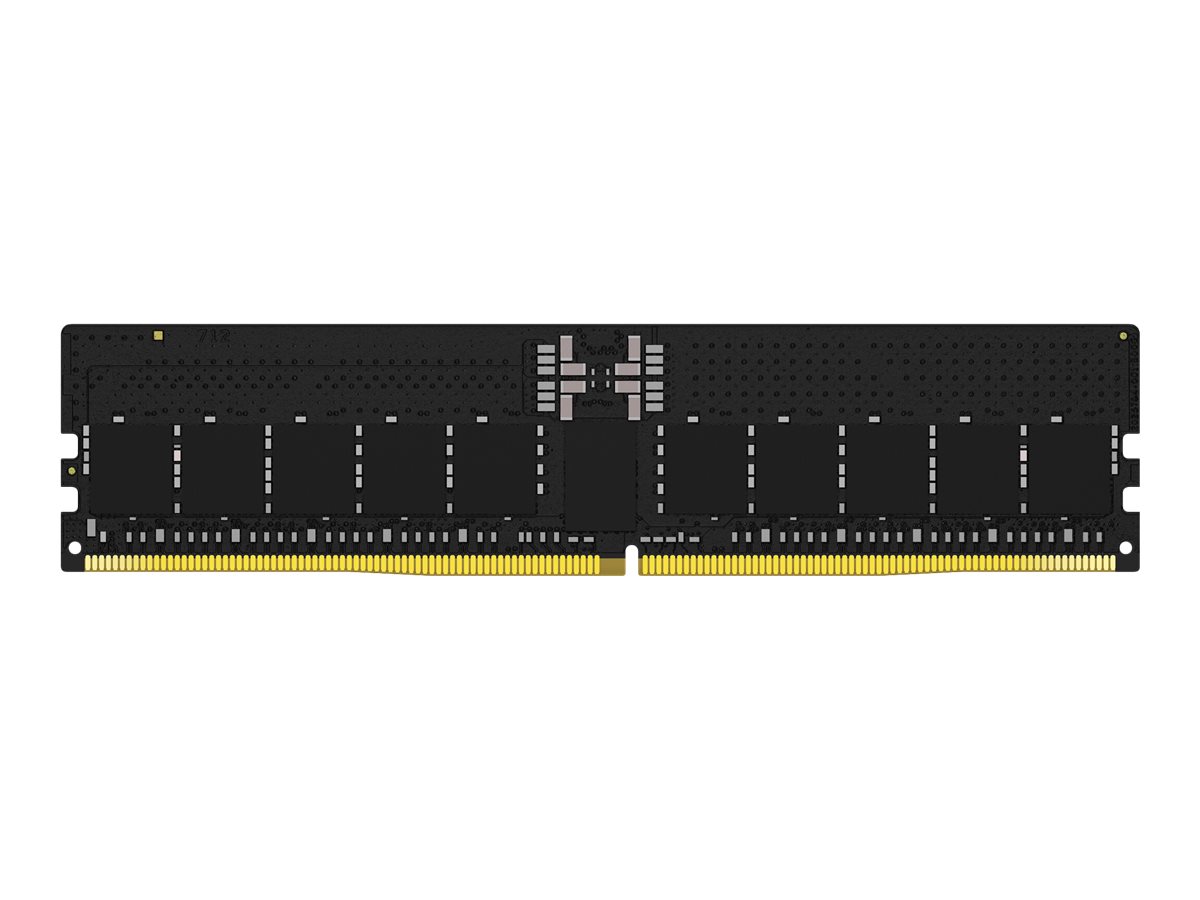

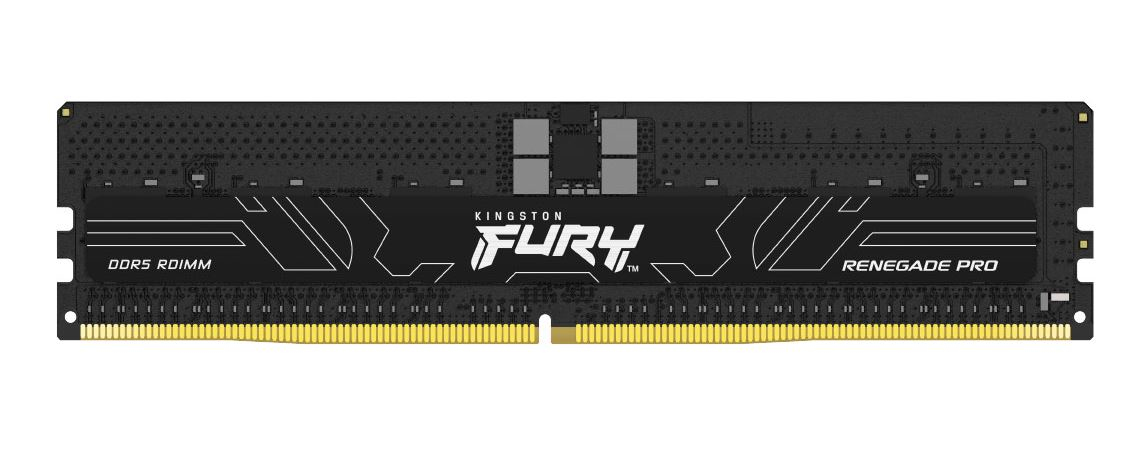

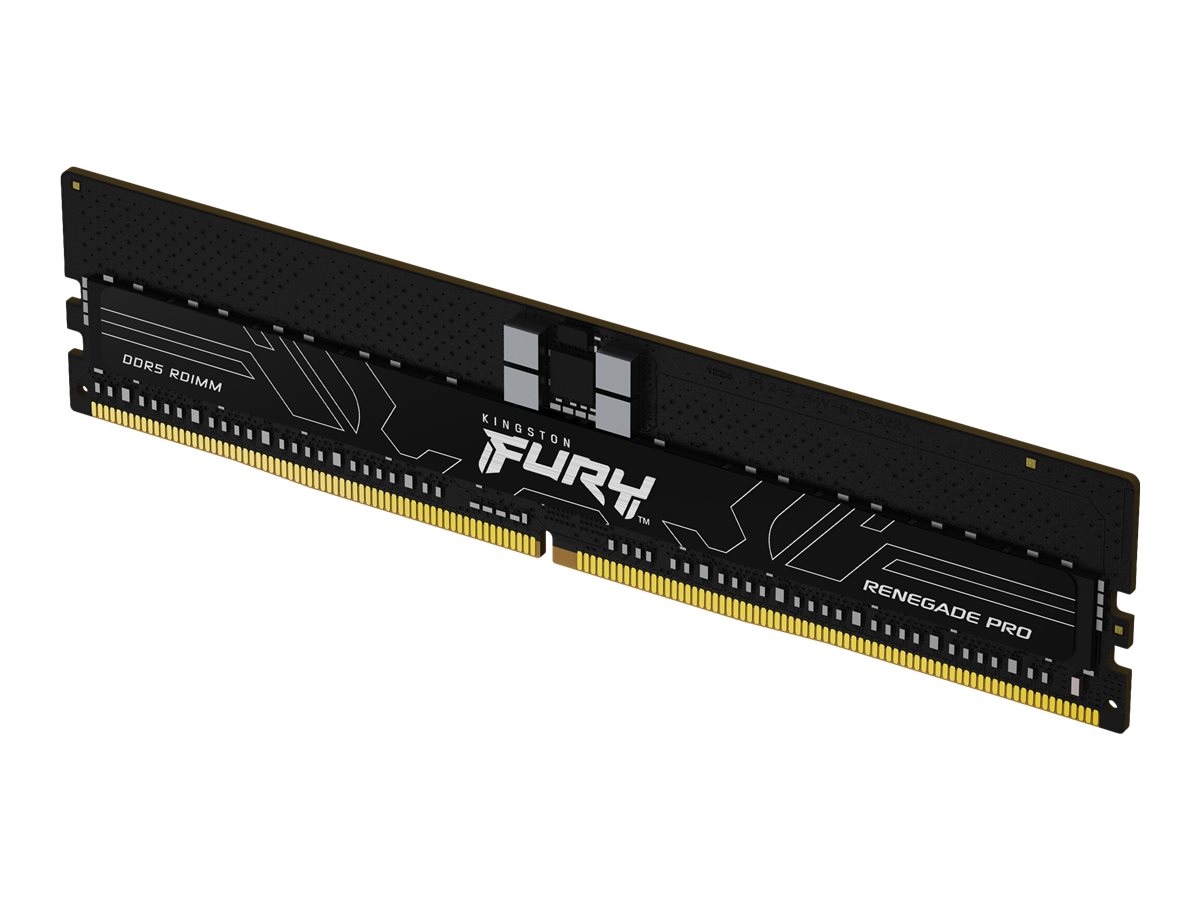

Kingston Technology FURY KF556R36RB-16 memory module 16 GB 1 x 16 GB DDR5 5600 MHz ECC

Kingston FURY KF556R36RB-16 is a 2G x 80-bit (16GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 1Rx8, ECC memory module, based on ten 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
Internal memory:	16 GB
Memory layout (modules x size):	1 x 16 GB
Internal memory type:	DDR5
Memory clock speed:	5600 MHz
Component for:	PC
Memory form factor:	288-pin DIMM
ECC:
Buffered memory type:	Registered (buffered)
On-Die ECC:
CAS latency:	36
Memory ranking:	8
Memory voltage:	1.25 V
Row cycle time:	48 ns
Refresh row cycle time:	295 ns
Row active time:	32 ns
Row Precharge Time (TRP):	16
Intel Extreme Memory Profile (XMP):
Intel Extreme Memory Profile (XMP) version:	3.0
SPD profile:
Programming power voltage (VPP):	1.8 V
Product colour:	Black
Cooling type:	Heatsink
JEDEC standard:
Operational conditions
Operating temperature (T-T):	0 - 95 °C
Storage temperature (T-T):	-55 - 100 °C
Sustainability
Sustainability certificates:	RoHS
Doesn't contain:	Halogen
Weight & dimensions
Height:	31.2 mm
