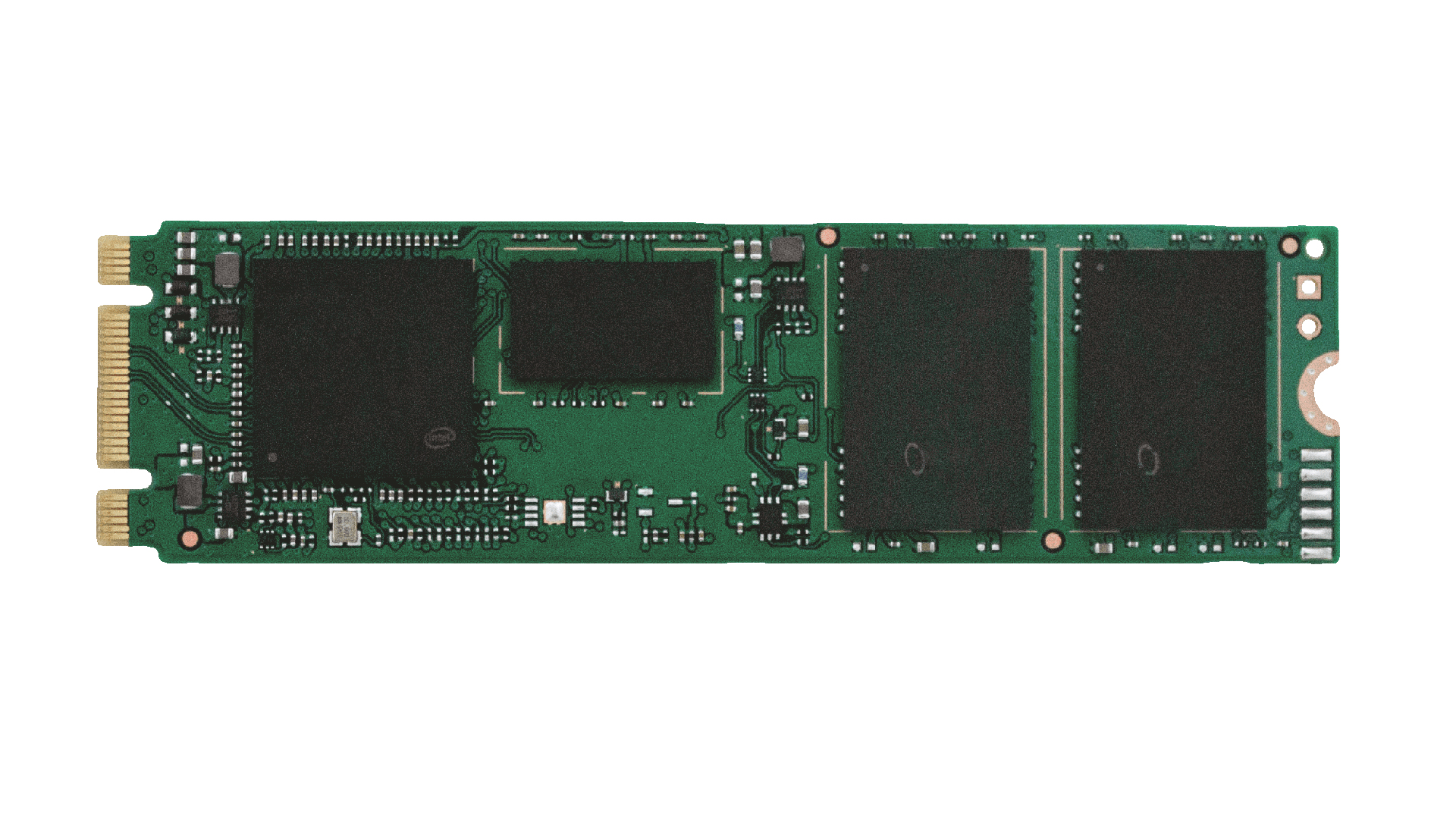

D3 SSDSCKKB480G801 internal solid state drive M.2 480 GB Serial ATA III TLC 3D NAND

Enhanced Power Loss Data Protection

Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Hardware Encryption

Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.

End-to-End Data Protection

End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

Features
SSD form factor:	M.2
SSD capacity:	480 GB
Interface:	Serial ATA III
Memory type:	TLC 3D NAND
NVMe:
Component for:	Server/workstation
Hardware encryption:
Security algorithms:	256-bit AES
Read speed:	555 MB/s
Write speed:	480 MB/s
Random read (100% span):	91000 IOPS
Random write (100% span):	18000 IOPS
Random read:	91000 IOPS
Random write:	18000 IOPS
Read latency:	34 µs
Write latency:	35 µs
End-to-End Data Protection:
Enhanced Power Loss Data Protection technology:
SSD temperature monitoring:
Uncorrectable Bit Error Rate (UBER):	< 1 per 10^17 bits read
Mean time between failures (MTBF):	2000000 h
SSD ARK ID:	134921
Export Control Classification Number (ECCN):	5A992C
Commodity Classification Automated Tracking System (CCATS):	G162706
Power
Power consumption (read):	3 W
Power consumption (write):	3 W
Power consumption (idle):	0.8 W
Brand-specific features
Intel High Endurance Technology (HET):
Intel® Rapid Start Technology:
Intel® Remote Secure Erase:
Intel® Smart Response Technology:
Operational conditions
Operating temperature (T-T):	0 - 70 °C
Maximum operating temperature:	70 °C
Operating vibration:	2.17 G
Non-operating vibration:	3.13 G
Operating shock:	1000 G
Non-operating shock:	1000 G
Weight & dimensions
Width:	22 mm
Height:	80 mm
Logistics data
Harmonized System (HS) code:	84717070
Other features
Endurance rating:	1.15 PB
Processor family:	Intel SSD D3
Temperature monitoring and logging:
Operating / non-operating shock:	1000 G/0.5 msec
Launch date:	Q1'19
SSD endurance rating:	1.2 PBW
SSD power consumption (idle):	0.8W
SSD shock:	1000 G/0.5 msec
Sequential reading:	555 MB/s
Sequential writing speed:	480 MB/s
Status:	Launched
Product series:	Intel® SSD D3-S4510 Series
Product codename:	Youngsville Refresh
