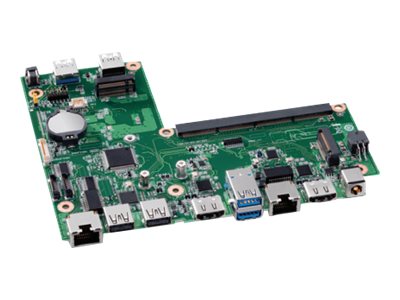

Intel NUC Rugged Board Element CMB1ABB

The modular Intel® NUC Rugged Board designed for the Intel® NUC Rugged Chassis Element or for use in a third-party chassis and/or embedded solutions. The Dual LAN board designed for IoT deployments offers design flexibility.

Processor
Processor manufacturer:	Intel
Storage controllers
Supported storage drive interfaces:	M.2
Supported storage drive types:	SSD
Number of storage drives supported:	2
SSD form factor:	M.2
Graphics
Parallel processing technology support:	Not supported
Number of displays supported:	3
Internal I/O
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
Rear panel I/O ports
USB 2.0 ports quantity:	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	3
Ethernet LAN (RJ-45) ports:	2
HDMI ports quantity:	2
Serial ports quantity:	2
Features
Component for:	mini PC
Motherboard form factor:	NUC
Audio output channels:	8 channels
DC input voltage:	12~24 V
Windows operating systems supported:	Windows 10, Windows 11
Logistics data
Harmonized System (HS) code:	8473301180
Weight & dimensions
Width:	170 mm
Depth:	136.4 mm
Other features
Serial port via internal header:
Embedded DisplayPorts (eDP) quantity:	1
Additional headers:	Front panel (PWR_SW, PWR_LED, RST, HDD_Act, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Thermal Design Power (TDP):	15 W
Commodity Classification Automated Tracking System (CCATS):	NA
Export Control Classification Number (ECCN):	EAR99
Motherboard ARK ID:	205878
Technical details
Product type:	Desktop Board
USB ports quantity:	4
M.2 card slot (storage):	2242/2280 (M-key)
Form factor:	U-series Element Carrier Board
Graphics output:	Dual HDMI, eDP
Launch date:	Q4'19
Status:	Launched
