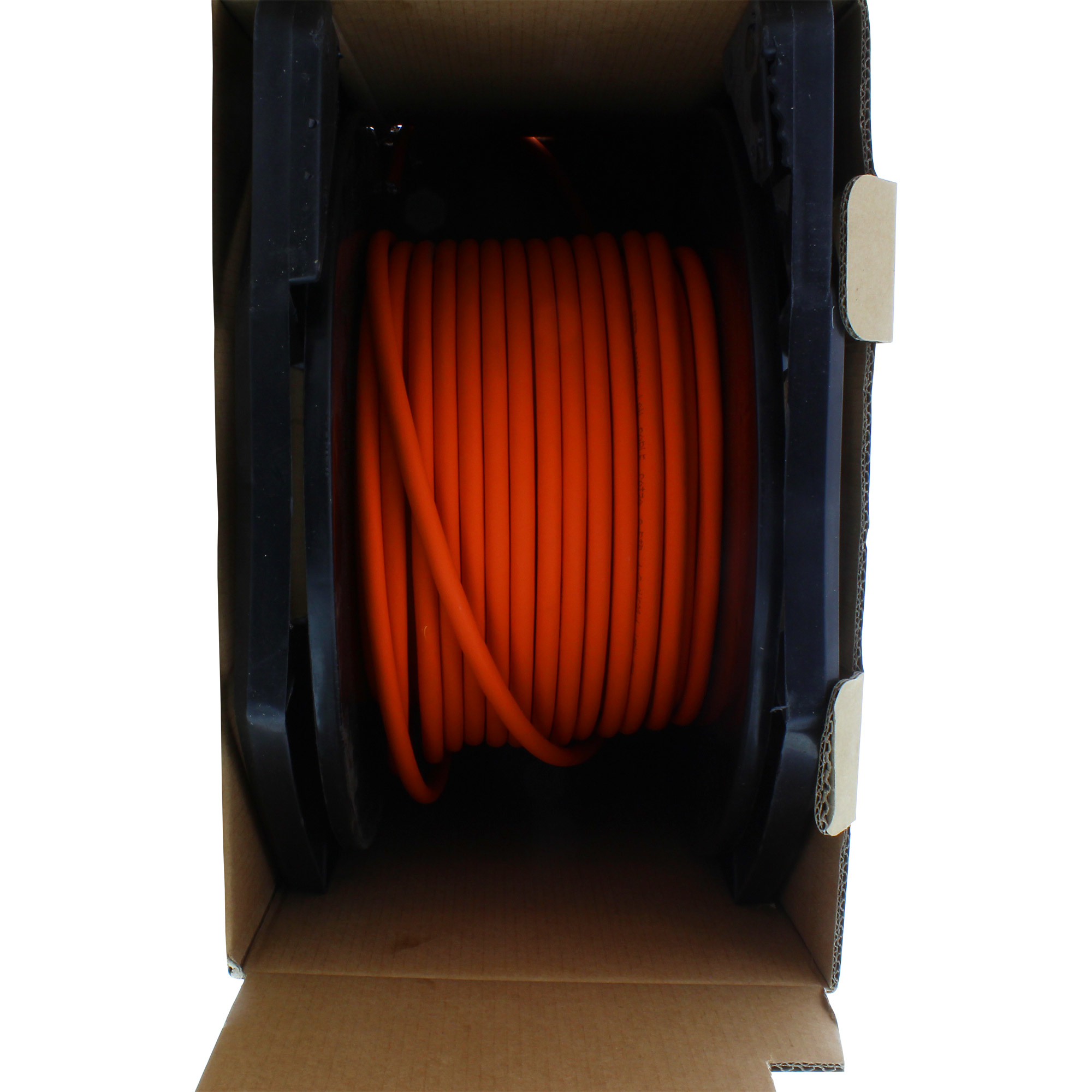

The installation cable is delivered in a drum box for easy refer to the required length. The packaging consists of a plastic roller on wich the data cable is rolled up. This roller is fixed in a carton, whereby a simple and unwinding is guaranteed. The following are the advantages of drum box:Cost reduction through easy handling on site without additional drum toolingeasy to carry, handy and stackable packaging to pack in construction vehicleLightweight (also sendable by parcel service)Prevention of pollution and damage to the cable by means of cardboard packagingreduce the average cost for small quantitiesSpecifications: Cable for installationCat. 7a installation cable to 1200MHzConstruction: 4x2xAWG23/1 S-FTP PiMfSuitable up to 10GbFull copper conductorsImpedance: 100 Ohm, DC resistance: max. 87 Ohm / kmHalogen-free jacket LSZHOrange sheathStructure: pairs in metal foilOverall braid shieldingCable diameter about 8.2mmInstallation temperature: 0 - 50°C, operating temperature: -20°C - 60°CWith meter-printing on cable
| Features | |
| Cable length: | 500 m |
| Cable standard: | Cat7a |
| Cable shielding: | S/FTP (S-STP) |
| Connector 1: |  |
| Connector 2: | |
| Product colour: | Orange |
| Jacket material: | Low smoke zero halogen (LSZH) |
| Conductor material: | Copper |
| AWG wire size: | 23 |
| Operational conditions | |
| Operating temperature (T-T): | -20 - 60 °C |
| Weight & dimensions | |
| Outer diameter: | 8.2 mm |
| Other features | |
| Input impedance: | 100 |
