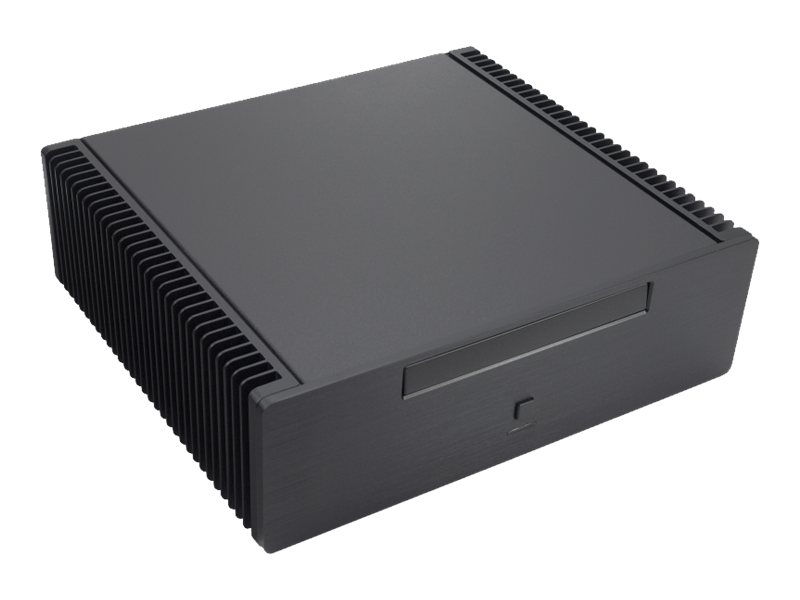

Impactics C3LH-B Black

Fanless and compact computer case offering rudimentary dust protection. Ideal for Mini-ITX-systems with a total TDP of <=50 watt.

The K.I.S.S.S. C3LH-B is a compact case with an volume of approx. 4.9 liters. Via its massive cooling profiles at the sides in combination with a K.I.S.S.S.-Coolset it allows to cool Mini-ITX-systems passively by natural convection. As lost heat is conducted through the side-gated heat sinks no ventilation holes are required for sufficient cooling. Due to these characteristics C3LH-B is suitable for all applications in which small size, silent operation and/or dust protection are requirements.

Chassis, bottom and top plate are made of zinc-plated steel (SECC). Heat sinks and front bezel are made of aluminium alloy. Thanks to this structure the case is extremely warp resistant and robust.

The C3LH-B is divided up into two zones. One zone for the ITX-mainboard plus the DC-DC-converter and a second zone for a slimline-ODD as well as a 2.5 -HDD. The plate holding the drives can be completely removed via four screws. Two brackets allow decoupled mounting of the HDD.

Additional cards can t be mounted in the case. For separate, serial connectors one extra opening can be found at the backside.

The straightforward design combined with the small dimensions appears timeless pure and understated. Beside power-switch and ODD-slot two LED (red=HDD, blue=power) are installed in the front panel.
