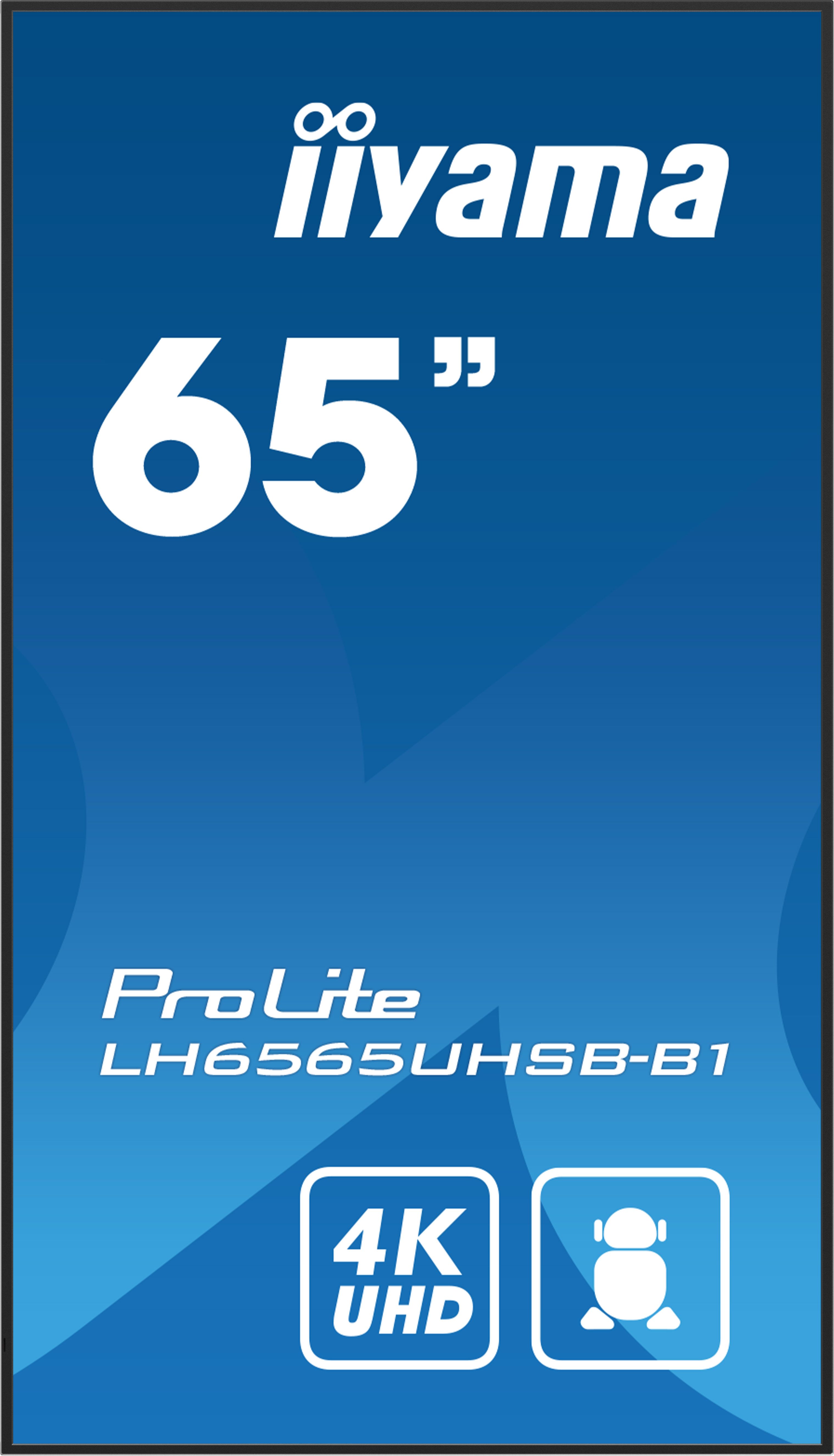

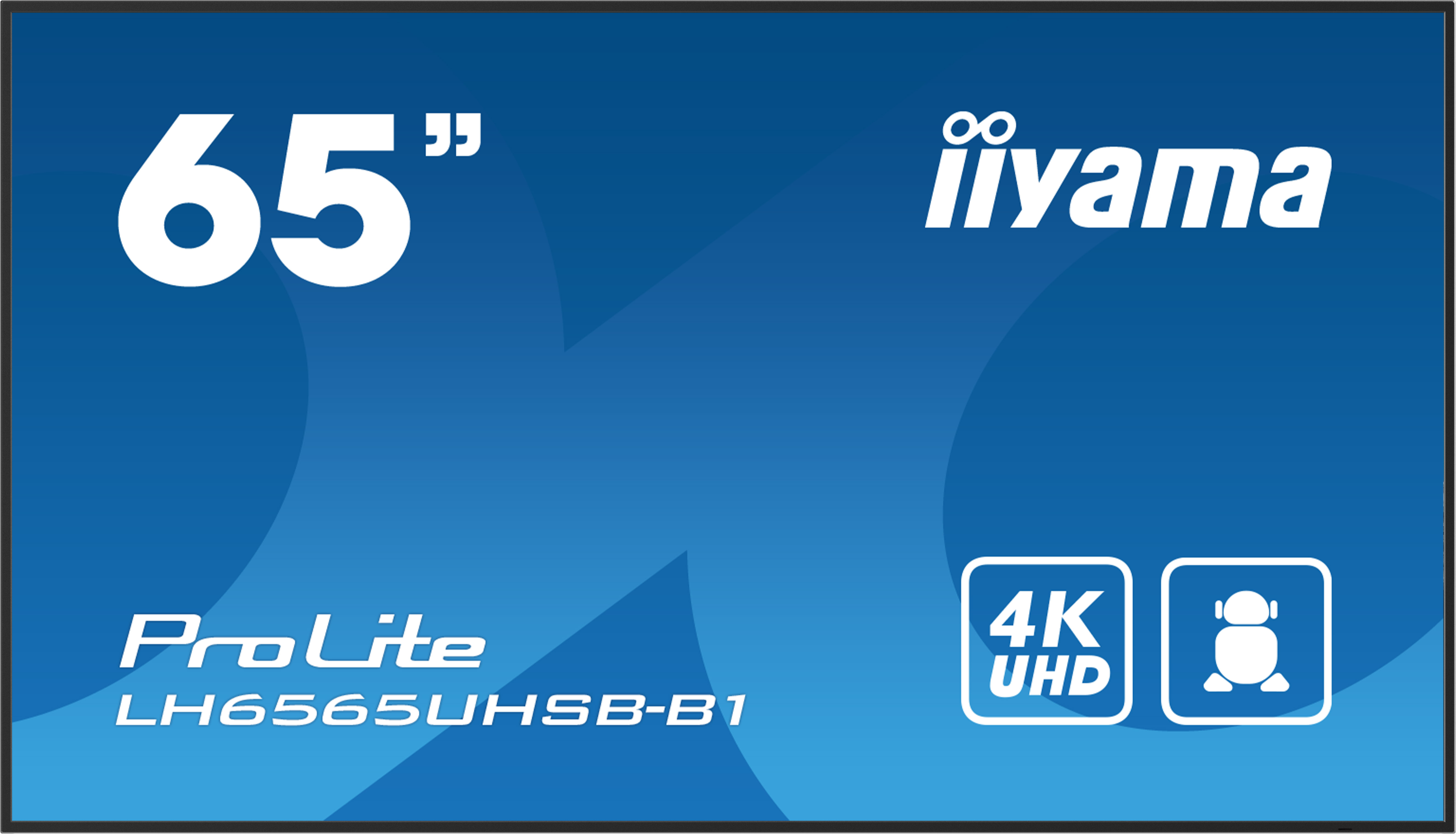

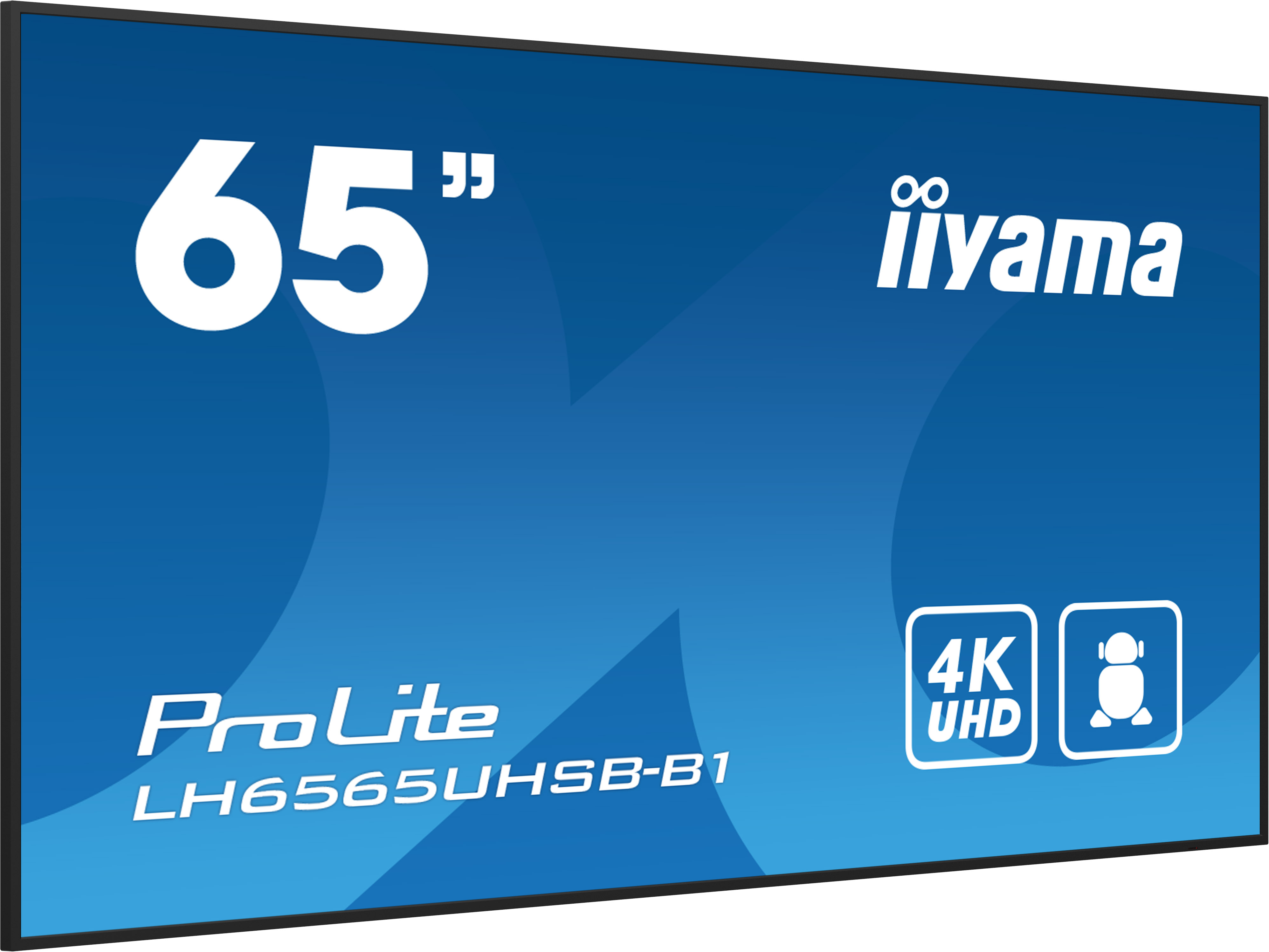

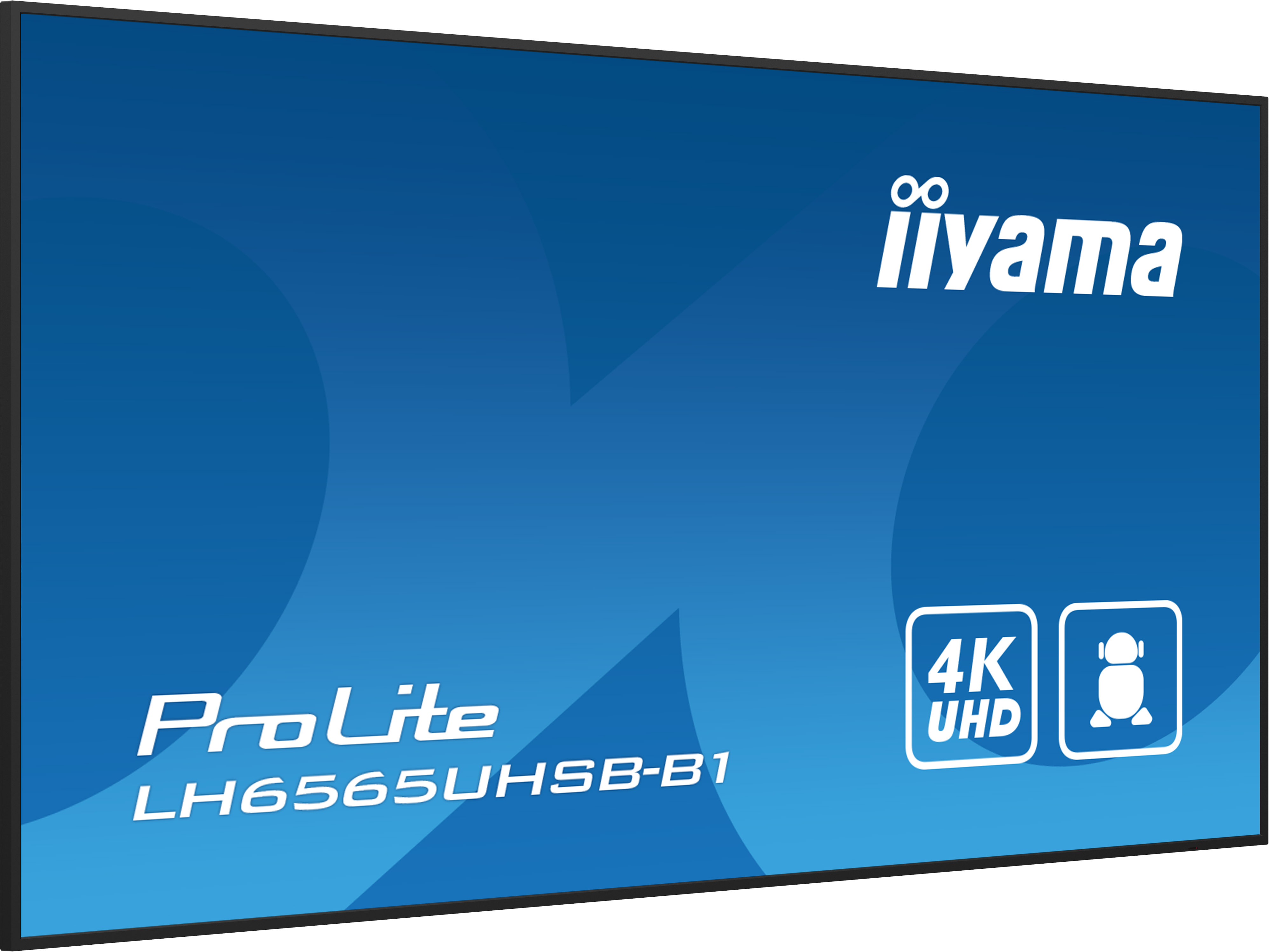

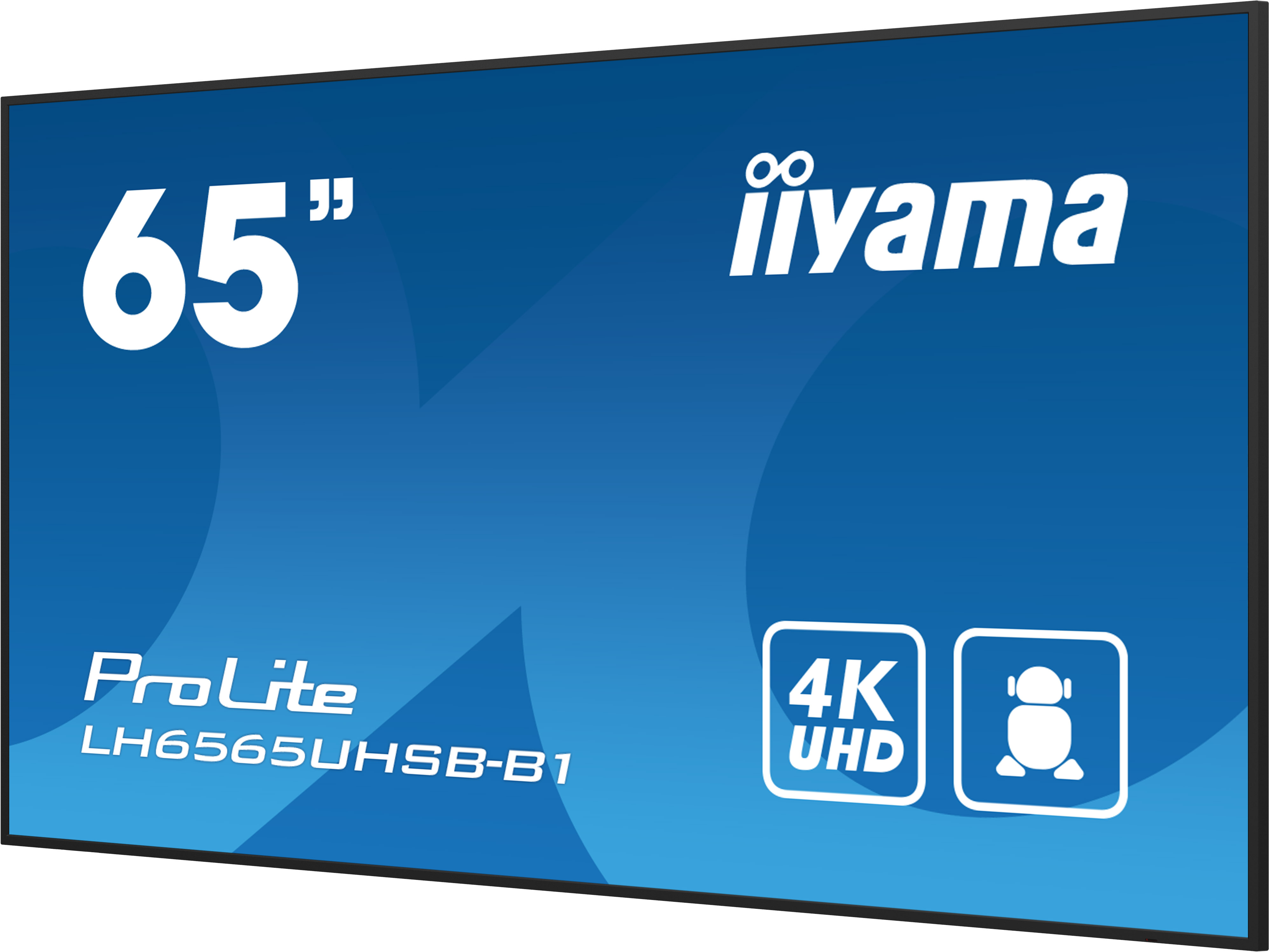

iiyama LH6565UHSB-B1 Signage Display Kiosk design 163.8 cm (64.5") LED Wi-Fi 800 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7

Create dynamic, show stopping content, designed to entice and captivate your audience. The LH6565UHSB vivid-bright display, boasting 800cd/m2, can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry s display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications, including multiple CMS platforms. The on-board iiSignage2 (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Display
Display diagonal:	163.8 cm (64.5")
Display technology:	LED
Display resolution:	3840 x 2160 pixels
Display brightness:	800 cd/m²
HD type:	4K Ultra HD
Touchscreen:	No
Panel type:	IPS
Native aspect ratio:	16:9
Response time:	8 ms
Contrast ratio (typical):	1200:1
Viewing angle, horizontal:	178°
Viewing angle, vertical:	178°
Display number of colours:	1.07 billion colours
Pixel pitch:	0.372 x 0.372 mm
Active display area (W x H):	803.52 x 680.72 mm
Display diagonal (metric):	163.9 cm
Horizontal scan range:	28 - 160 kHz
Native refresh rate:	60 Hz
Haze rate:	1%
RGB colour space:	NTSC

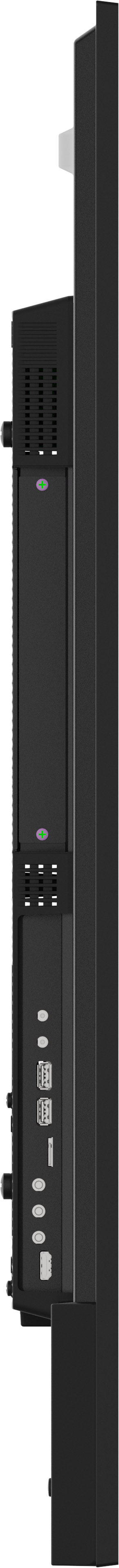

Ports & interfaces
HDMI ports quantity:	2
DisplayPorts quantity:	1
USB port:	Yes
HDMI version:	2.0
DisplayPort version:	1.2
USB ports quantity:	2
USB version:	2.0
Ethernet LAN (RJ-45) ports:	1
Audio (L/R) in:	1
RS-232 interface:	Yes
RS-232C:	Yes
Audio
Built-in speaker(s):	Yes
Number of built-in speakers:	2
RMS rated power:	20 W
Design
Product design:	Kiosk design
Product colour:	Black
VESA mounting:	Yes

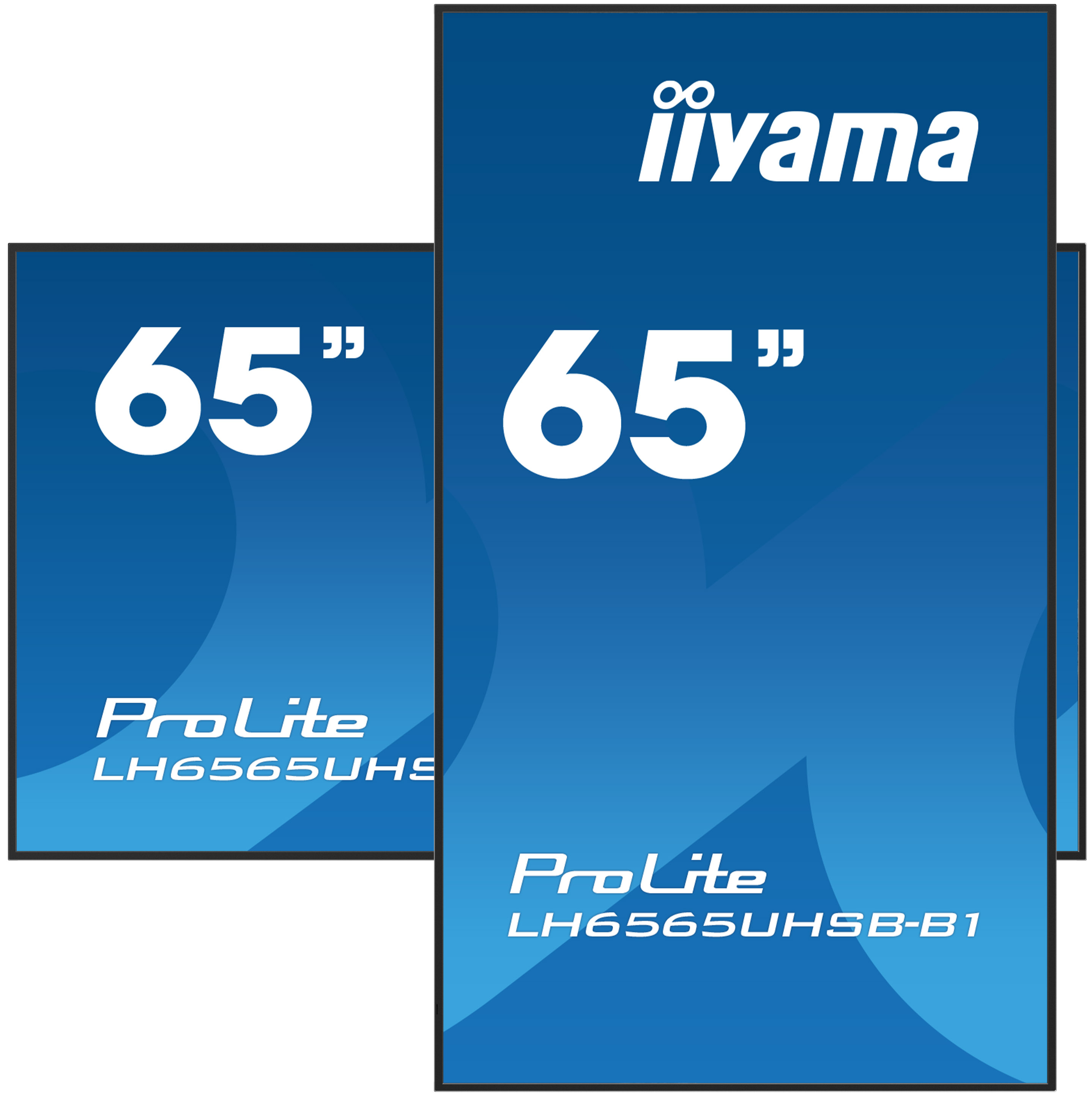

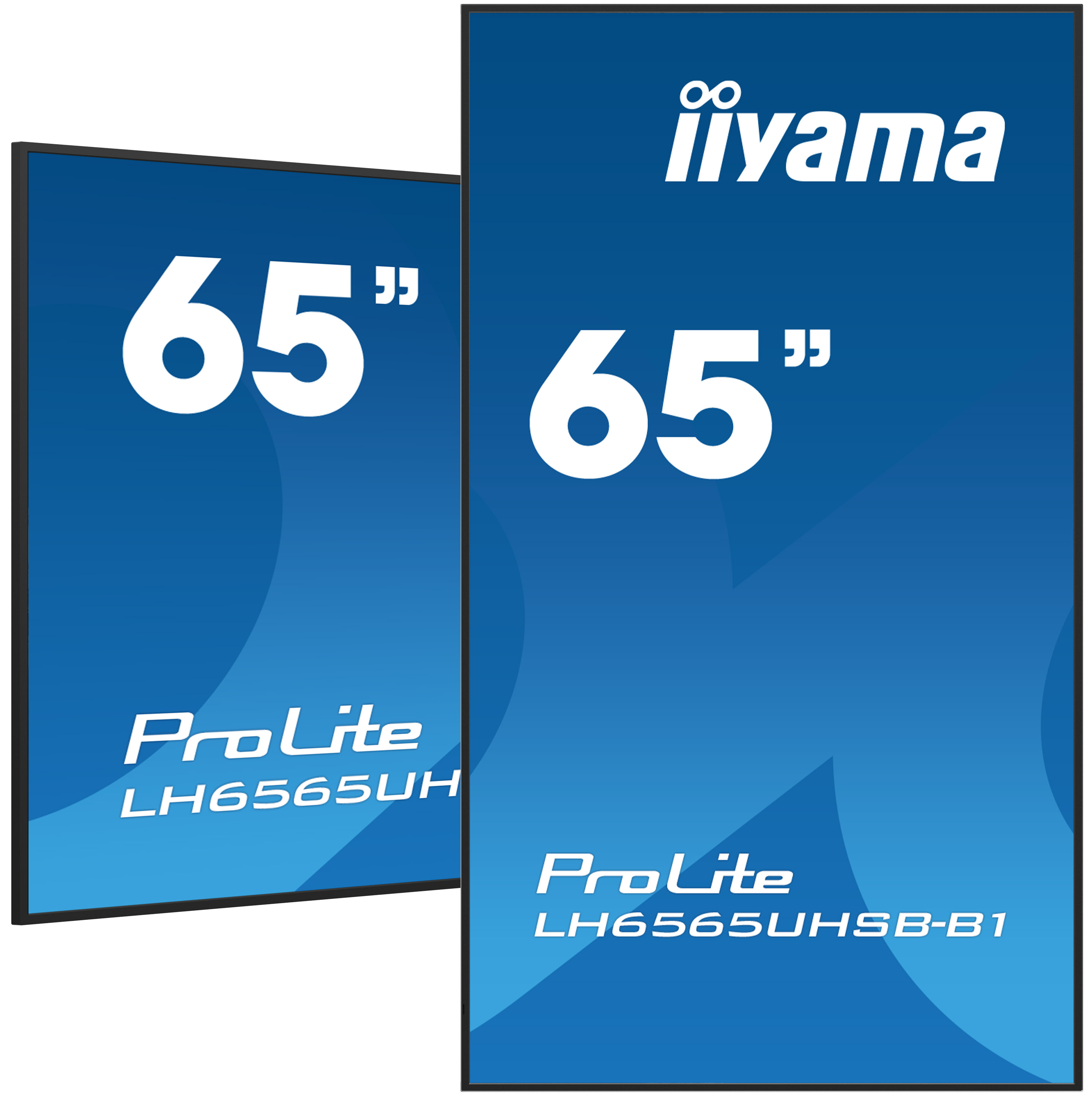

Orientation:	Horizontal/Vertical
Panel mounting interface:	400 x 400 mm
Bezel width (bottom):	1.49 cm
Bezel width (side):	1.49 cm
Bezel width (top):	1.49 cm
Bezel colour:	Black
Performance
Purpose:	Commercial
On Screen Display (OSD):	Yes
Number of OSD languages:	8
On Screen Display (OSD) languages:	Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days):	24/7
HDCP:	Yes
HDCP version:	2.2
Mean time between failures (MTBF):	50000 h
Power
Power consumption (typical):	104 W
Power consumption (standby):	0.5 W
Power consumption (off):	0.3 W
Energy efficiency class (SDR):	E
Energy efficiency class (HDR):	Not available
Energy consumption (SDR) per 1000 hours:	104 kWh
AC input voltage:	100 - 240 V
AC input frequency:	50/60 Hz
Energy efficiency scale:	A to G
Computer system
Computer system:	Yes
Built-in processor:	Yes
Processor manufacturer:	ARM
Processor family:	ARM Cortex
Processor architecture:	ARM Cortex-A73
Processor cores:	8
Internal memory:	4 GB
On-board graphics card model:	ARM Mali-G52
Internal storage capacity:	32 GB
Operating system installed:	Android 11
Weight & dimensions
Display width:	1456.5 mm
Display depth:	56 mm
Display height:	832.5 mm
Display weight:	20.7 kg
Width:	1456.5 mm
Depth:	56 mm
Height:	832.5 mm
Weight:	20.7 kg
Packaging data
Package width:	1345 mm
Package depth:	162 mm
Package height:	1016 mm
Package weight:	28.7 kg
Packaging content
Remote control included:	Yes
Cables included:	AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Operating relative humidity (H-H):	-20 - 60%
Storage temperature (T-T):	-20 - 60 °C
Network
Ethernet LAN:	Yes
Wi-Fi:	Yes
Wi-Fi standards:	Wi-Fi 5 (802.11ac)
Technical details
Sustainability certificates:	ErP
Compliance certificates:	CE, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Quick start guide:	Yes
Power supply type:	Internal
Playback media:
User controls:	picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, advanced option reset)
