Products description

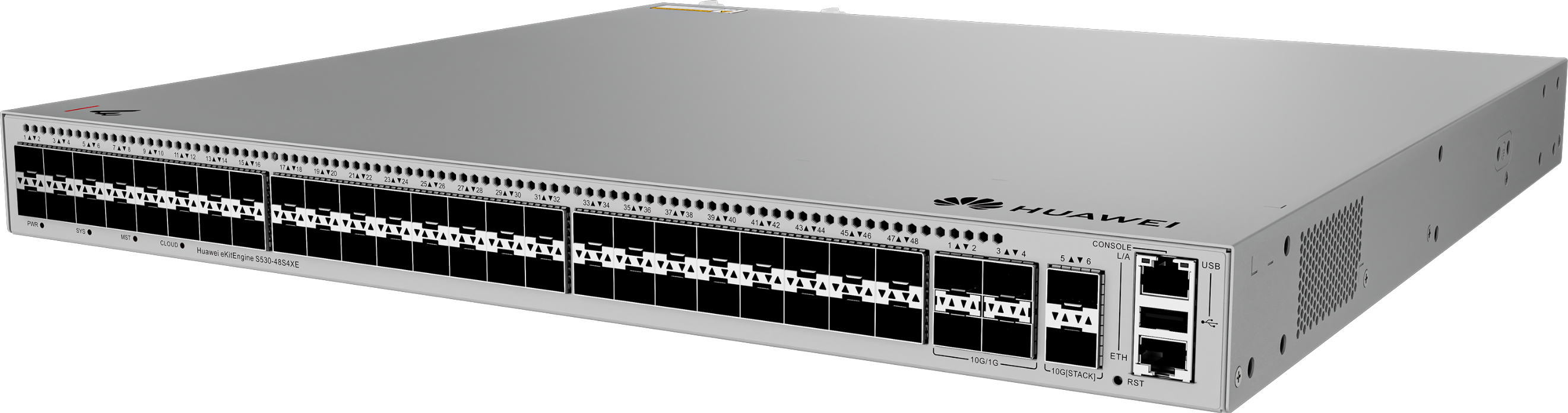

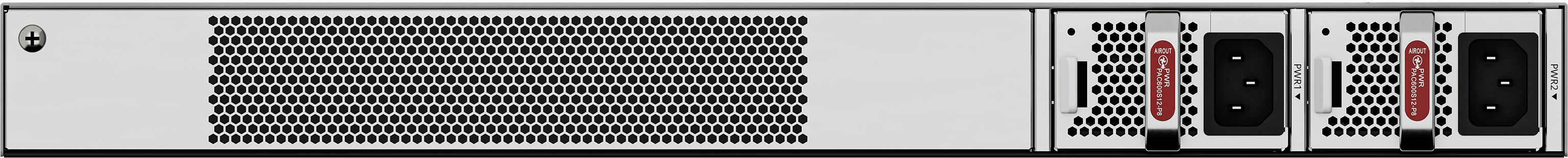

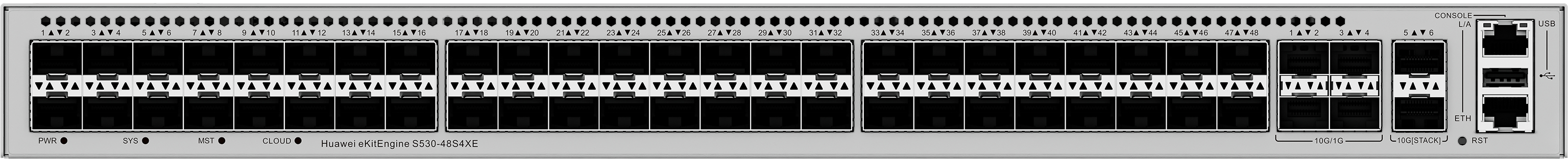

Huawei eKitEngine S530
Series Switches
eKitEngine S530 series switches are developed based on next-generation high-performing hardware and software platform. eKitEngine S530 switches support simplified operations and maintenance (O&M), and flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. eKitEngine S530 switches can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.
| Management features | |
| Switch type: | Managed |
| Switch layer: | L3 |
| Quality of Service (QoS) support: | Yes |
| Web-based management: | Yes |
| Cloud-managed: | Yes |
| Traffic classification: | Yes |
| ARP inspection: | Yes |
| Configuring Location Settings (CLI): | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type: | No |
| SFP module slots quantity: | 48 |
| SFP+ module slots quantity: | 4 |
| USB Type-A ports quantity: | 1 |
| Console port: | RJ-45 |
| USB 2.0 ports quantity: | 1 |
| Power connector: | AC-in jack |
| Network | |
| 10G support: | Yes |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-T, 1000BASE-T |
| Port mirroring: | Yes |
| IP routing: | Yes |
| Link aggregation: | Yes |
| Spanning tree protocol: | Yes |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| VLAN support: | Yes |
| Number of VLANs: | 4094 |
| Data transmission | |
| MAC address table: | 32000 entries |
| Switching capacity: | 224 Gbit/s |
| Forwarding rate: | 168 Mpps |
| Static route: | Yes |
| Security | |
| DHCP features: | DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 snooping |
| Access Control List (ACL): | Yes |
| IGMP snooping: | Yes |
| Security algorithms: | SNMP, SNMPv2, SNMPv3 |
| SSH/SSL support: | Yes |
| Loop protection: | Yes |
| Multicast features | |
| Multicast support: | Yes |
| Protocols | |
| Routing protocols: | BGP, BGP4+, IS-IS, OSPF, OSPFv3, VRRP |
| Design | |
| Rack mounting: | Yes |
| Form factor: | 1U |
| Product colour: | Grey |
| Housing material: | Metal |
| Reset button: | Yes |
| LED indicators: | Yes |
| International Protection (IP) code: | IP20 |
| Airflow direction: | Front-to-back airflow |
| Number of fans: | 2 fan(s) |
| Performance | |
| Internal memory: | 2000 MB |
| Flash memory: | 1000 MB |
| Noise level: | 43.8 dB |
| Mean time between failures (MTBF): | 692075.7 h |
| Power | |
| Power source: | AC |
| Power supply included: | Yes |
| Number of power supply units: | 2 |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| DC input voltage: | 38 - 72 V |
| Power consumption (max): | 130.05 W |
| Power protection features: | Surge protection |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): | No |
| Operational conditions | |
| Operating temperature (T-T): | -5 - 50 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Operating altitude: | 0 - 5000 m |
| Non-operating altitude: | 0 - 5000 m |
| Weight & dimensions | |
| Width: | 442 mm |
| Depth: | 420 mm |
| Height: | 43.6 mm |
| Packaging data | |
| Package weight: | 8.3 kg |
| Certificates | |
| Compliance certificates: | Electromagnetic Compatibility (EMC) |
