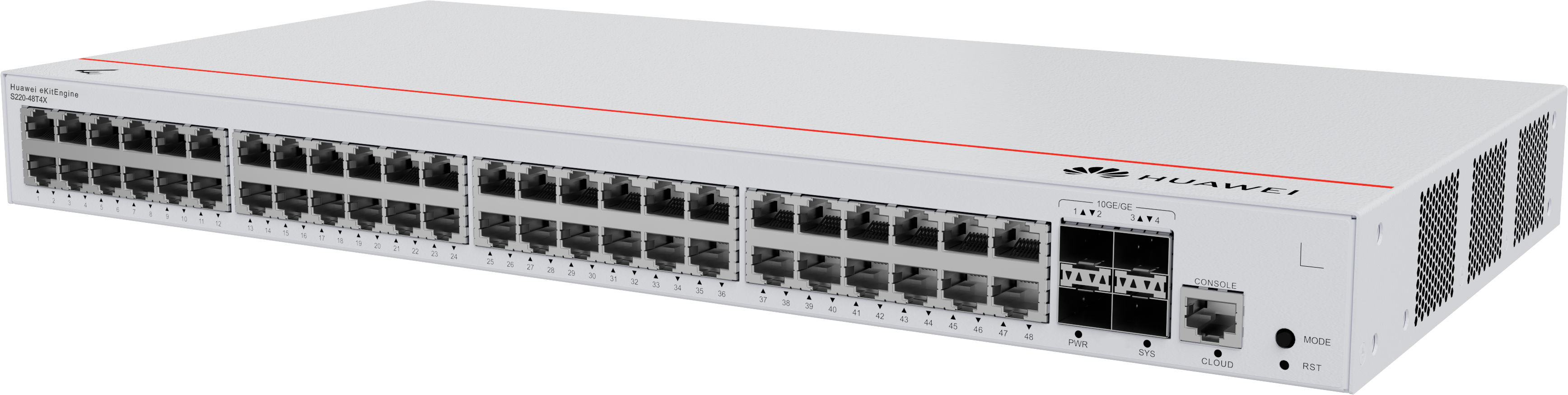

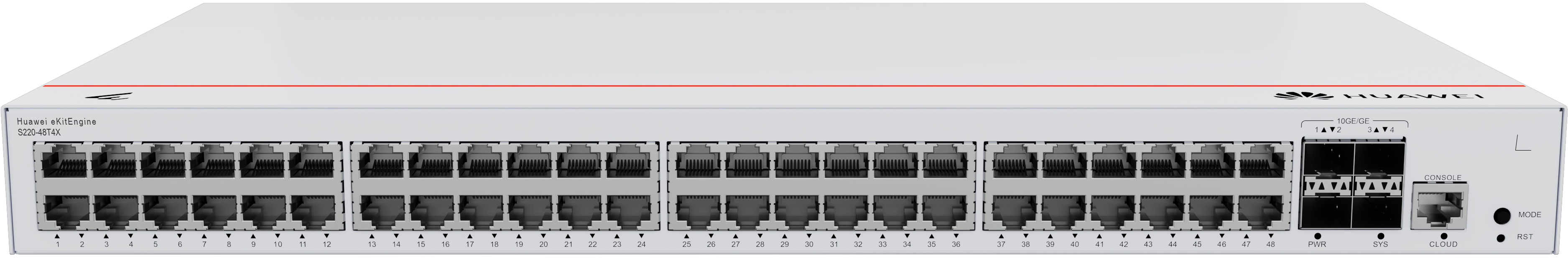

Huawei eKitEngine S220 Series Switches
Huawei eKitEngine S220 series switches are Layer 2 GE/10GE switches designed for the small office and home office (SOHO)/small- and medium-sized business (SMB) market. They include eight models, such as those with 8 downlink GE electrical ports (PoE/non-PoE ports), 24 downlink GE electrical ports (PoE/non-PoE ports), 48 downlink GE electrical ports (PoE/non-PoE), and uplink GE/10GE ports. These switches provide many features, such as rich management methods (web-based management, CLI-based management, and app-based management), flexible Ethernet networking, and diversified security control. Therefore, they can be widely used in scenarios such as SOHO, enterprise office, budget hotels, factories, primary and secondary education, hospitals, and building security.
| Management features | |
| Switch type: | Managed |
| Switch layer: | L2 |
| Quality of Service (QoS) support: | Yes |
| Cloud-managed: | Yes |
| Configuring Location Settings (CLI): | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity: | 48 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity: | 0 |
| Installed SFP+ modules quantity: | 4 |
| Console port: | RJ-45 |
| Network | |
| 10G support: | Yes |
| Link aggregation: | Yes |
| Rate limiting: | Yes |
| VLAN support: | Yes |
| Number of VLANs: | 4094 |
| Data transmission | |
| MAC address table: | 16000 entries |
| Switching capacity: | 176 Gbit/s |
| Forwarding rate: | 131 Mpps |
| Static route: | Yes |
| Security | |
| DHCP features: | DHCP server, DHCP snooping, DHCP client |
| Access Control List (ACL): | Yes |
| Security algorithms: | SNMP, SNMPv2, SNMPv3 |
| Loop protection: | Yes |
| Authentication: | MAC-based authentication |
| Authentication type: | IEEE 802.1x |
| Multicast features | |
| Multicast support: | Yes |
| Design | |
| Rack mounting: | Yes |
| Form factor: | 1U |
| Product colour: | Grey |
| Housing material: | Metal |
| LED indicators: | Yes |
| International Protection (IP) code: | IP20 |
| Performance | |
| Noise level: | 54.3 dB |
| Power | |
| Power source: | AC |
| Power supply included: | Yes |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Power consumption (max): | 44.3 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): | No |
| Operational conditions | |
| Operating temperature (T-T): | -5 - 50 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Operating altitude: | 0 - 5000 m |
| Non-operating altitude: | 0 - 5000 m |
| Weight & dimensions | |
| Width: | 442 mm |
| Depth: | 220 mm |
| Height: | 43.6 mm |
| Packaging data | |
| Package weight: | 3.59 kg |
