- Details

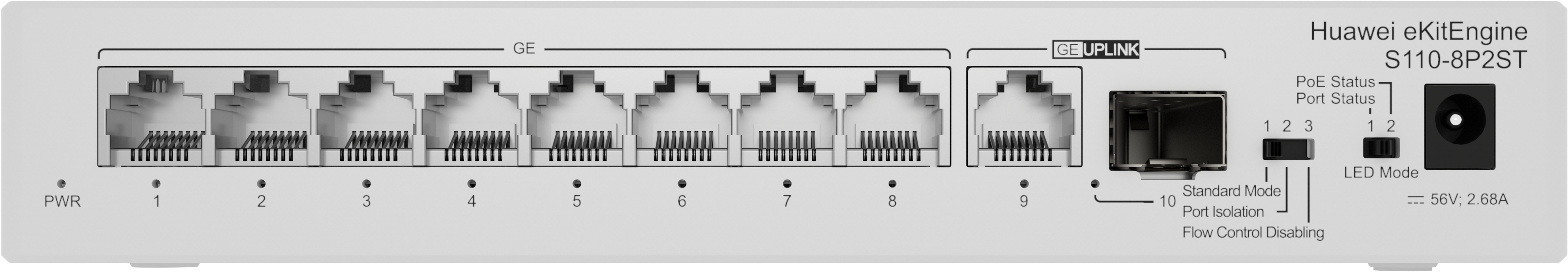

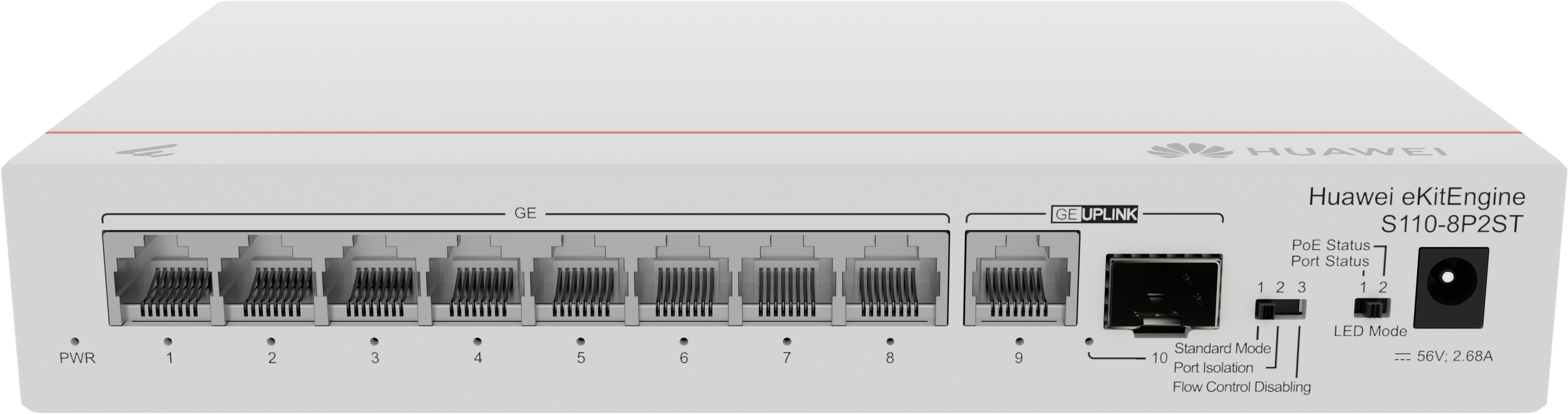

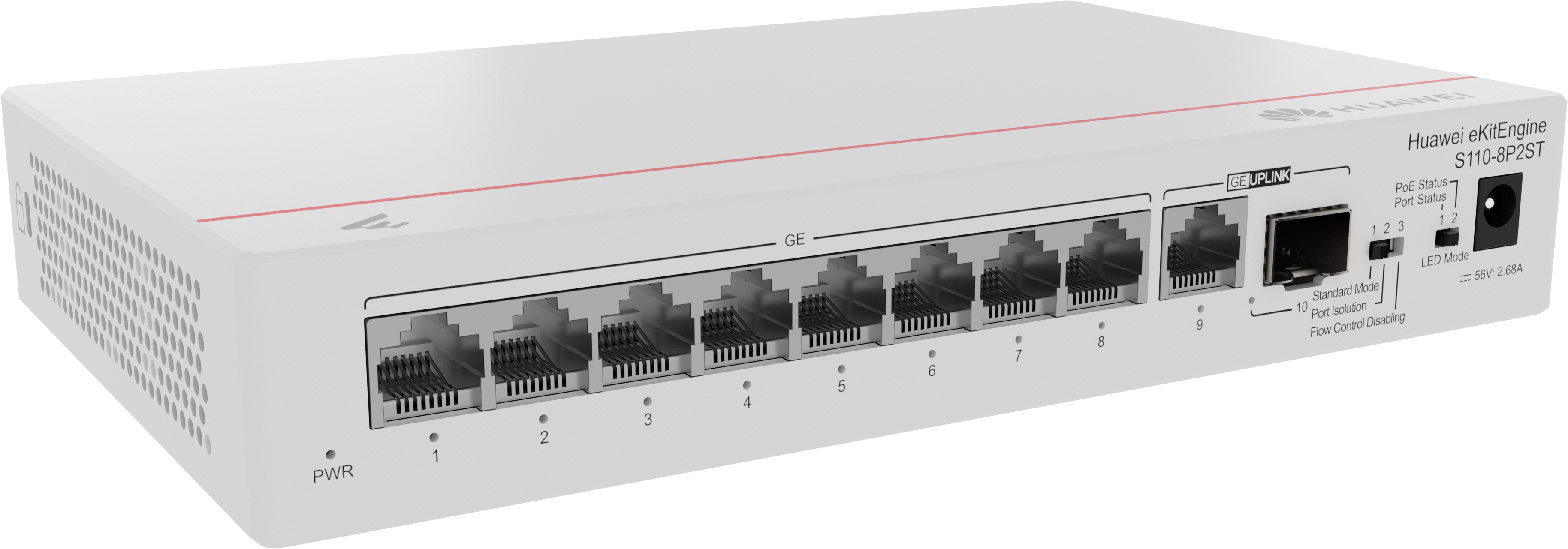

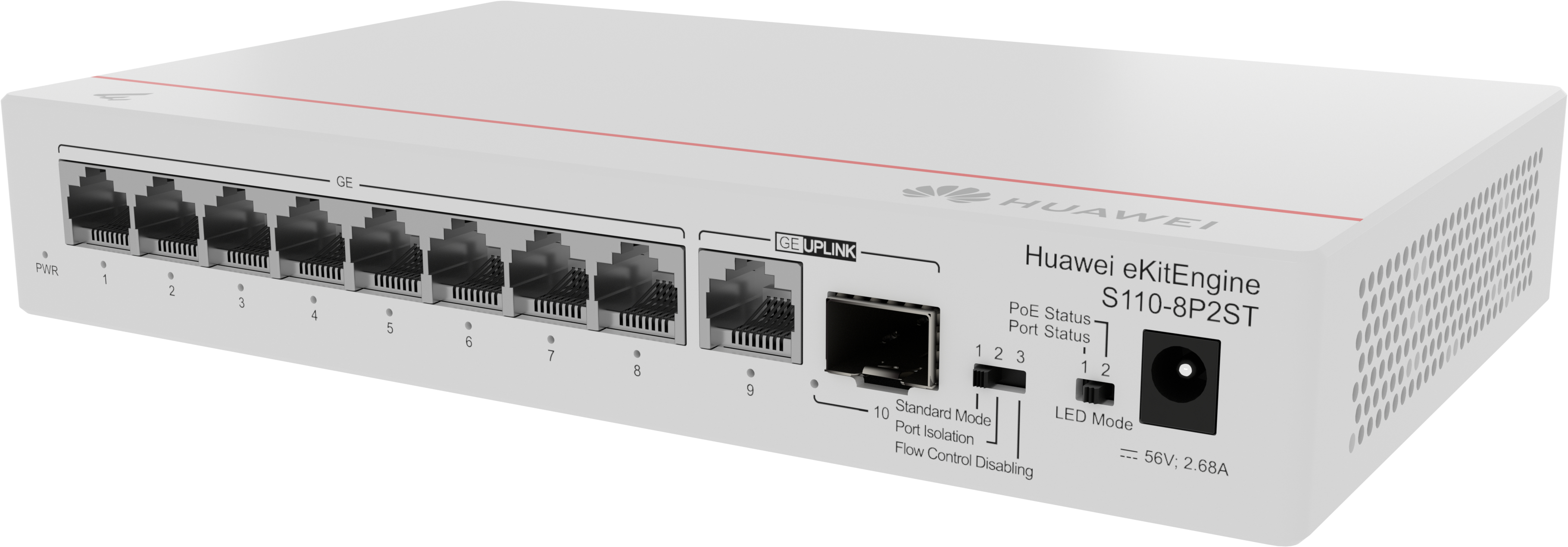

Huawei eKitEngine S110 series switches (S110 for short) are unmanaged switches designed for the distribution market outside China. The whole series adopts an all-new crystal-like appearance design with great visual impacts, winning itself the German Red Dot Design Award 2022. The newly launched colorways of Silk White and Silver Frost are becoming increasingly popular. In addition, the iconic Huawei logo on eKitEngine S110 series switches gives them a more refreshing look. In terms of aesthetics, a diamond cut design is employed to make the switches more elegant through an integrated and completely seamless surface with sleek corners.Therefore, eKitEngine S110 series switches can be widely used in access scenarios such as SOHO enterprises, and commercial stores.
Four working modes
- standard mode
- port isolation
- port bonding
- flow control disabling
Plug and play
- configurationfree
- managementfree
| Management features | |
| Switch type: | Unmanaged |
| Switch layer: | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity: | 8 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity: | 0 |
| Installed SFP+ modules quantity: | 0 |
| Combo SFP ports quantity: | 1 |
| Network | |
| 10G support: | No |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Data transmission | |
| MAC address table: | 2000 entries |
| Switching capacity: | 20 Gbit/s |
| Forwarding rate: | 14.88 Mpps |
| Design | |
| Rack mounting: | Yes |
| Product colour: | Grey |
| LED indicators: | Yes |
| Power | |
| Power source: | AC |
| DC input voltage: | 54 V |
| Power consumption (max): | 155 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): | Yes |
| Total Power over Ethernet (PoE) budget: | 124 W |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Operating altitude: | 0 - 5000 m |
| Non-operating altitude: | 0 - 5000 m |
| Weight & dimensions | |
| Width: | 210 mm |
| Depth: | 130 mm |
| Height: | 35 mm |
| Weight: | 910 g |
