The full motion wall mount BrackIT XXL HD II is suitable for large screens with 65 98 | 165 249 cm. It can be used in landscape as well as portrait format.
The included VESA mount can be equipped from min. VESA 200 x 200 mm up to VESA 1.000 x 600 mm.

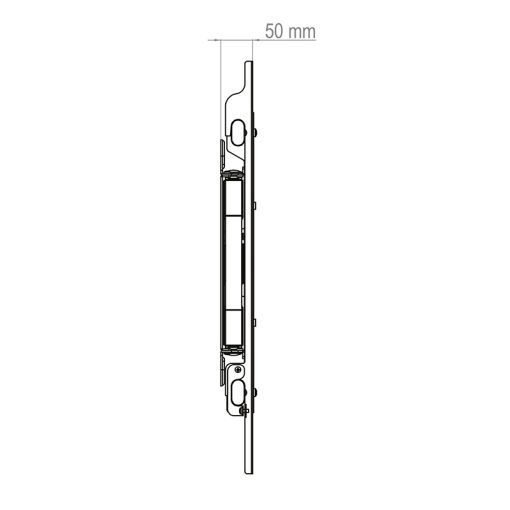

With a flat wall distance of only 50 mm, it is one of the flattest mounts for large screens.
The angle of inclination of the mount can be adjusted can be varied continuously between -6° and +7°. Depending on the size of the screen, the mount can be swiveled by ± 45°. Levelling of ± 2° is also possible.

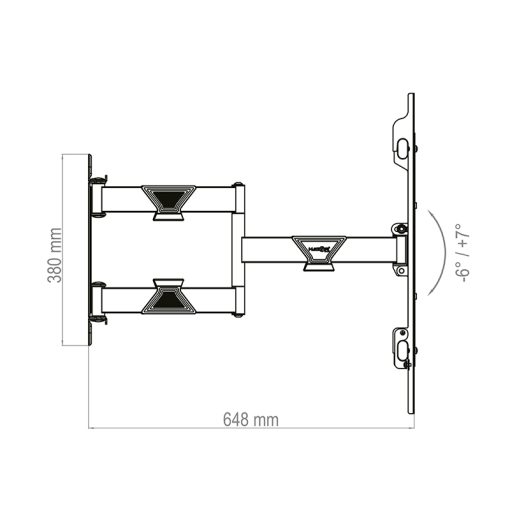

The wall distance can be adjusted between a minimum of 50 mm and a maximum extension length of 648 mm by means of the stable extension.
Cable clips along the extension ensure clean and safe cable routing.
The surfaces of the BrackIT XXL HD II are refined by a solvent-free, as well as impact- and scratch-resistant powder coating in black.
The maximum load capacity is 140 kg.
| Mounting | |
| Number of displays supported: | 1 |
| Maximum screen size: | 2.49 m (98") |
| Mounting type: | Wall |
| Maximum weight capacity: | 140 kg |
| Minimum screen size: | 165.1 cm (65") |
| Minimum VESA mount: | 200 x 200 mm |
| Maximum VESA mount: | 1000 x 600 mm |
| Distance to the wall (min): | 5 cm |
| Distance to the wall (max): | 64.8 cm |
| Ergonomics | |
| Cable management: | Yes |
| Design | |
| Product colour: | Black |
| Orientation: | Portrait |
