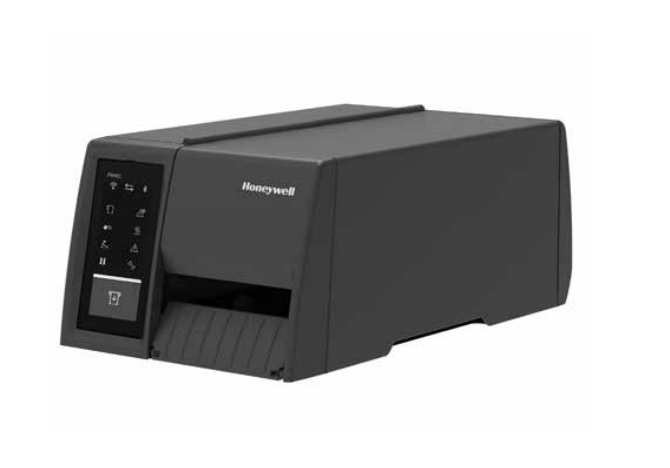

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer s track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer s versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.Embedded with Honeywell s Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell s Operational Intelligence software, users can remotely manage and monitor the PM45 printer s diagnostics and output performance. The PM45 supports a wide range of media including ink-in and ink-out ribbons with a 1-inch core size enhancing the time between media resupplies.The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell s firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.
| Printing | |
| Print technology: | Direct thermal |
| Colour: |  |
| Maximum resolution: | 203 x 203 DPI |
| Print speed: | 350 mm/sec |
| Maximum printing width: | 10.8 cm |
| Printable dot numbers: | 8 dot |
| Printing colours: | Black |
| Paper handling | |
| Maximum label width: | 11.4 cm |
| Maximum roll diameter: | 21.3 cm |
| Core diameter: | 7.6 cm |
| Ports & interfaces | |
| Connectivity technology: | Wired & Wireless |
| Ethernet LAN: |  |
| Wi-Fi: | |
| USB port: | |
| Wi-Fi standards: | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth: | |
| Bluetooth version: | 5.0 |
| USB 2.0 ports quantity: | 2 |
| RS-232 ports: | 1 |
| Performance | |
| Page description languages: | DP, DPL, IPL, XML, ZPL II |
| Internal memory: | 256 MB |
| Flash memory: | 512 MB |
| Built-in barcodes: | 1D, 2D |
| Image formats supported: | BMP, GIF, PCX, PNG |
| Design | |
| Product colour: | Black |
| Display: | LCD |
| Control type: | Touch |
| Power | |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| System requirements | |
| Windows operating systems supported: | |
| Mobile operating systems supported: | Android, iOS |
| Linux operating systems supported: | |
| Operational conditions | |
| Operating relative humidity (H-H): | 20 - 85% |
| Storage relative humidity (H-H): | 5 - 90% |
| Operating temperature (T-T): | 5 - 40 °C |
| Storage temperature (T-T): | -20 - 70 °C |
| Weight & dimensions | |
| Width: | 253 mm |
| Depth: | 432 mm |
| Height: | 181 mm |
| Weight: | 12.6 kg |
| Technical details | |
| Sustainability certificates: | CE, ENERGY STAR, RoHS |
