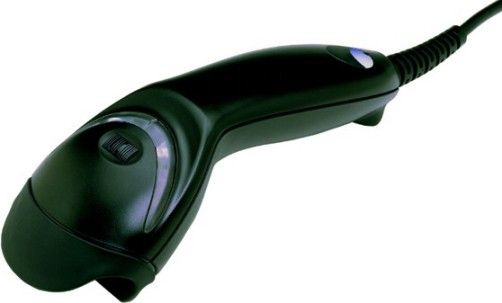

Honeywell s Eclipse 5145TM is a low cost laser-based alternative to CCD scanners. Its compact form factor and high end feature set simplify its use in a variety of applications at the press of a button. Eclipse is a single-line, hand-held laser scanner.Equipped with Honeywell s patented CodeGate® technology, Eclipse can be used in a wide variety of applications. CodeGate® technology allows the user to easily target the desired bar code and complete data transmission with the press of a single button. This makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.- CodeGate: Zero in on desired code and complete data transmission with the push of a single button ideal for menu scanning applications- CodeSense: Automatically wakes scanner from sleep mode when a bar code is detected- Powerlink Cables: Uses the same user-replaceable cables and power supplies as Voyager® and Orbit®- Flash ROM: Protects POS investment with free firmware updates via MetroSet2 software and standard PC- OPOS and JPOS System Compatible: Easily adaptable to any end-user system environment
| Scanning | |
| Type: | Handheld bar code reader |
| Sensor type: | Laser |
| Read rate (max): | 72 reads/s |
| Light levels (direct sunlight): | 0 - 4842 lx |
| Tilt reading angle: | 0 - 52° |
| Pitch reading angle: | 0 - 68° |
| Ports & interfaces | |
| Connectivity technology: | Wired |
| Standard interfaces: | USB |
| Performance | |
| Product colour: | Black |
| Power | |
| Power source type: | USB |
| Power consumption (typical): | 0.672 W |
| Input voltage: | 5 V |
| Weight & dimensions | |
| Weight: | 100 g |
| Width: | 169 mm |
| Depth: | 63 mm |
| Height: | 51 mm |
| Packaging data | |
| Cables included: | USB |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -40 - 60 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code: | 84716070 |
