Products description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor | |
| Processor manufacturer: | AMD |
| Processor socket: | Socket sTR5 |
| Compatible processor series: | AMD Ryzen Threadripper 7000 Series, AMD Ryzen Threadripper PRO 7000 WX-Series |
| Memory | |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 8 |
| Maximum internal memory: | 2 TB |
| Memory slots type: | DIMM |
| Memory channels: | Quad-channel |
| ECC ompatibility: | ECC |
| Supported memory clock speed (max): | 5200 MHz |
| Unbuffered memory: | No |
| Storage controllers | |
| Supported storage drive interfaces: | M.2, PCI Express 5.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 8 |
| RAID support: | Yes |
| RAID levels: | 0, 1, 10 |
| Graphics | |
| Parallel processing technology support: | Not supported |
| HDCP: | No |
| DirectX version: | 12.0 |
| Internal I/O | |
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 0 |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 2x2 connectors: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of CPU fan connectors: | 2 |
| Number of chassis fan connectors: | 6 |
| EPS power connector (8-pin): | Yes |
| Number of EPS power connectors (8-pin): | 2 |
| TPM connector: | Yes |
| 12V power connector: | Yes |
| Number of water pump connectors: | 5 |
| Number of temperature sensor headers: | 2 |
| Number of noise detection headers: | 1 |
| RGB LED pin header: | Yes |
| Number of RGB LED pin headers: | 4 |

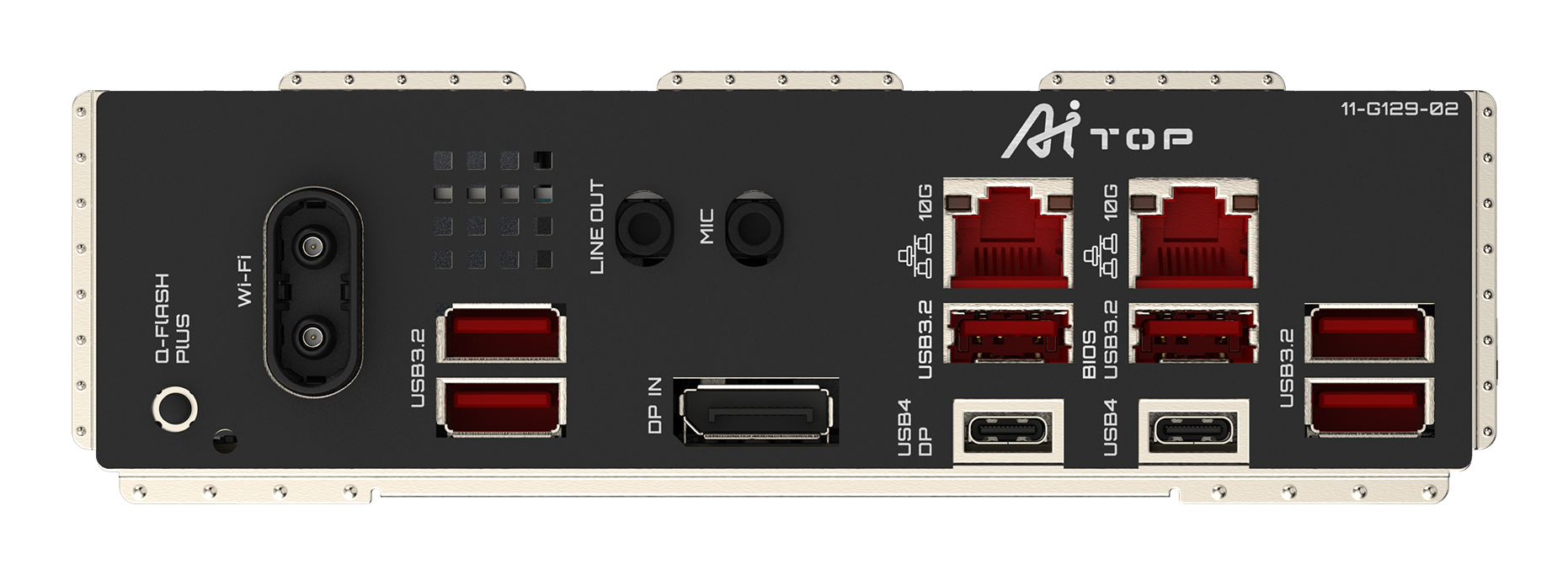

| Rear panel I/O ports | |
| USB 2.0 ports quantity: | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 0 |
| Ethernet LAN (RJ-45) ports: | 2 |
| VGA (D-Sub) ports quantity: | 0 |
| HDMI ports quantity: | 0 |
| DVI-D ports quantity: | 0 |
| USB4 Gen 3x2 ports quantity: | 2 |
| DisplayPorts quantity: | 1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| WiFi-AP antenna jack: | 2 |
| Network | |
| Wi-Fi: | Yes |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| LAN controller: | Marvell AQtion AQC113C |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi standards: | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model: | Qualcomm QCNCM865 |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |
| Features | |
| Component for: | PC |
| Motherboard form factor: | Extended ATX |
| Motherboard chipset family: | AMD |
| Motherboard chipset: | AMD TRX50 |
| Audio output channels: | 2.0 channels |
| Product colour: | Black |
| PC health monitoring: | Fan, Temperature, Voltage, Water cooling |
| Cooling type: | Active |
| Power source type: | ATX |
| Linux operating systems supported: | Ubuntu 24.04 LTS |
| Windows operating systems supported: | Windows 11 x64 |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots: | 4 |
| Number of M.2 (M) slots: | 4 |
| 1st M.2 largest key size: | 2280 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 5.0 |
| 3rd M.2 largest key size: | 2280 |
| 3rd M.2 highest PCI Express generation: | 5.0 |
| 4th M.2 largest key size: | 2280 |
| 4th M.2 highest PCI Express generation: | 5.0 |
| BIOS | |
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| ACPI version: | 5.0 |
| Clear CMOS jumper: | Yes |
| Clear CMOS button: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Logistics data | |
| Country of origin: | China |
| Products per shipping (inner) case: | 1 pc(s) |
| Battery | |
| Battery weight: | 3 g |
| Lithium weight per battery: | 0.07 g |
| Number of battery cells: | 1 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Packaging data | |
| Package width: | 379 mm |
| Package depth: | 397 mm |
| Package height: | 105 mm |
| Package weight: | 6.47 kg |
| Weight & dimensions | |
| Width: | 305 mm |
| Depth: | 330 mm |
| Height: | 35 mm |
| Packaging content | |
| Batteries included: | Yes |
| Antenna included: | Yes |
| Screws included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Technical details | |
| Warranty period: | 3 year(s) |
