- Details

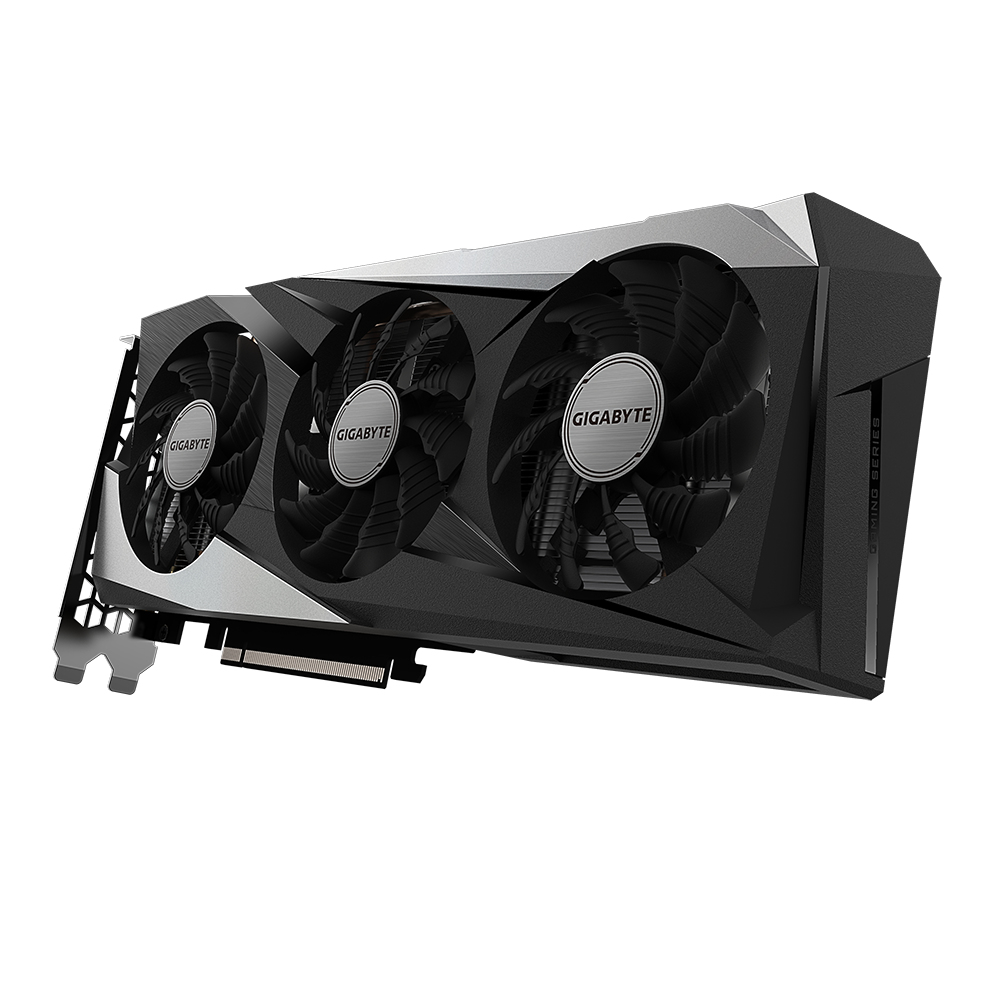

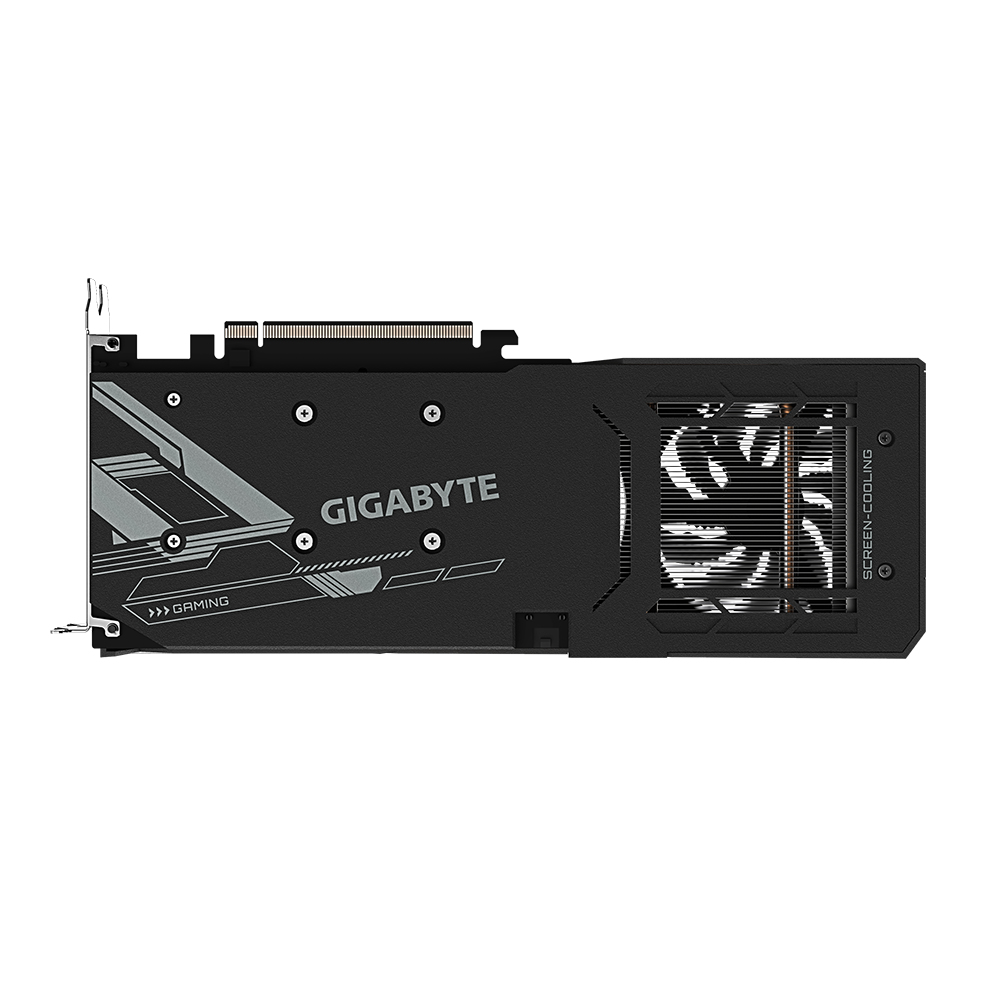

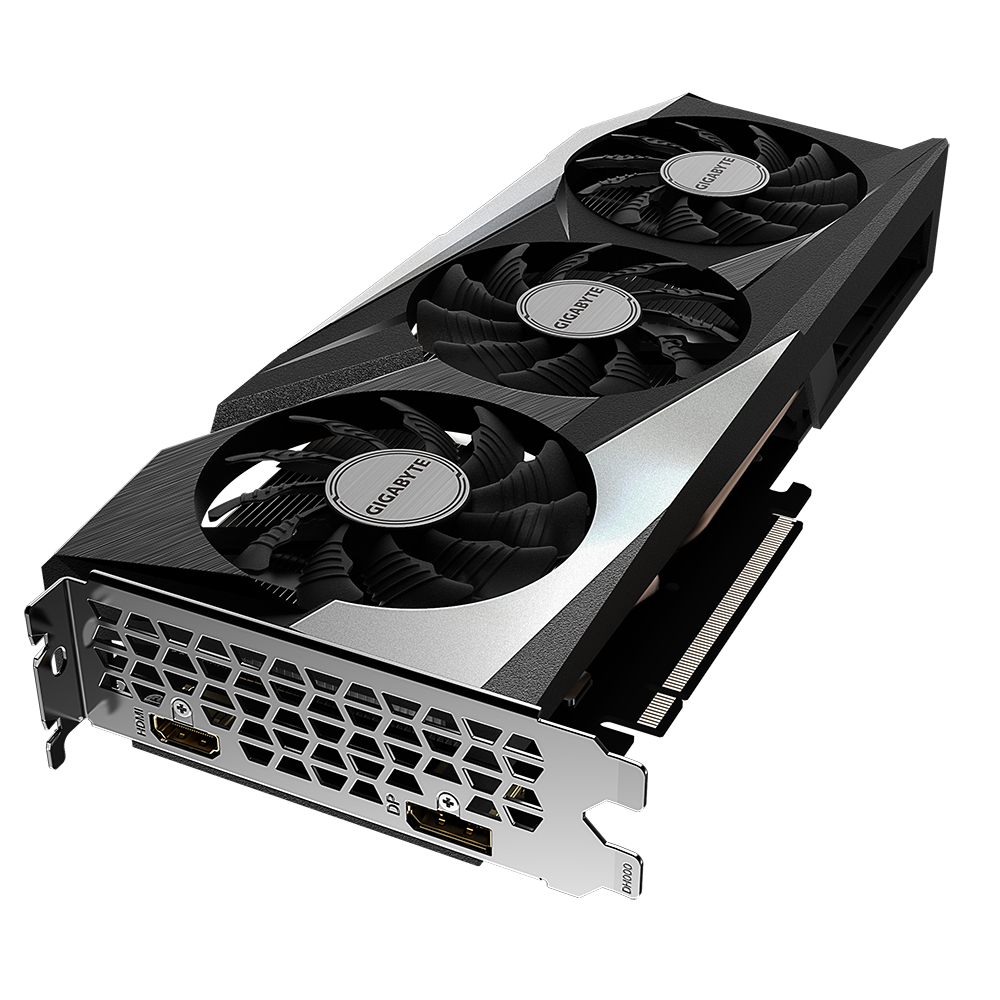

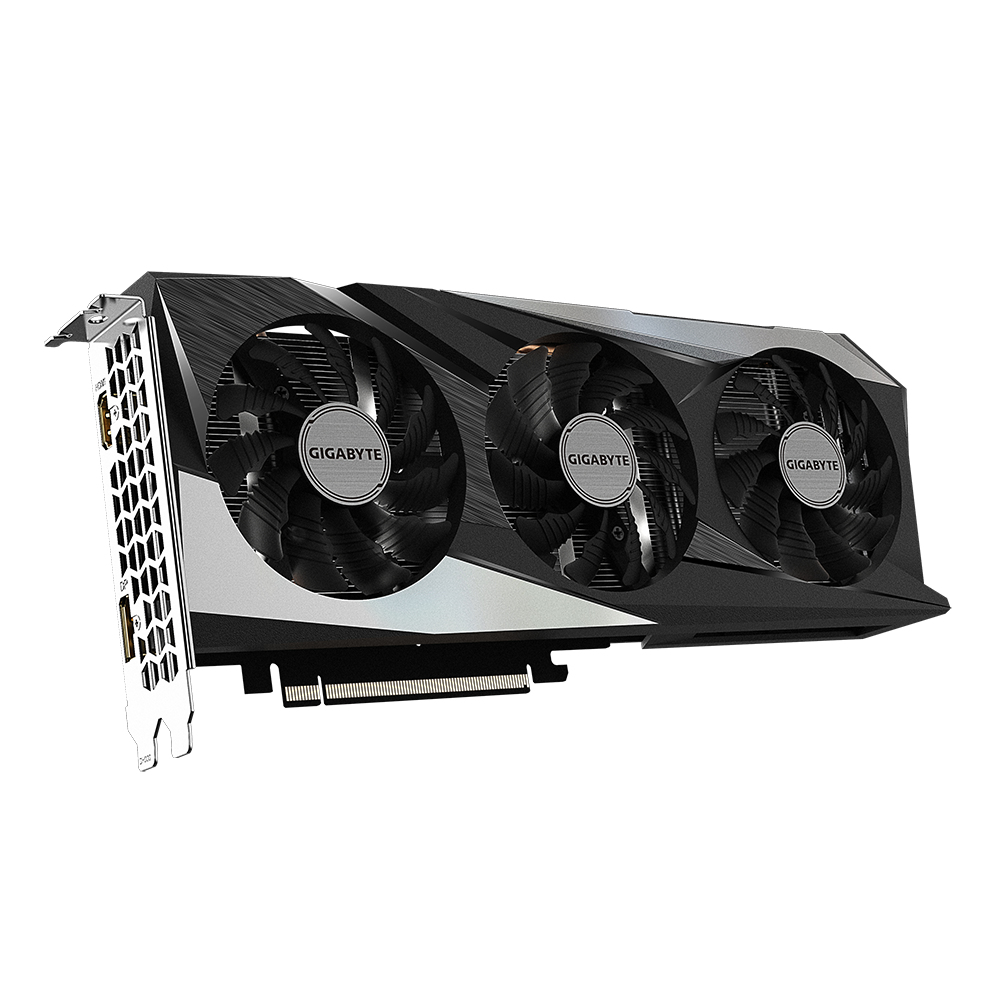

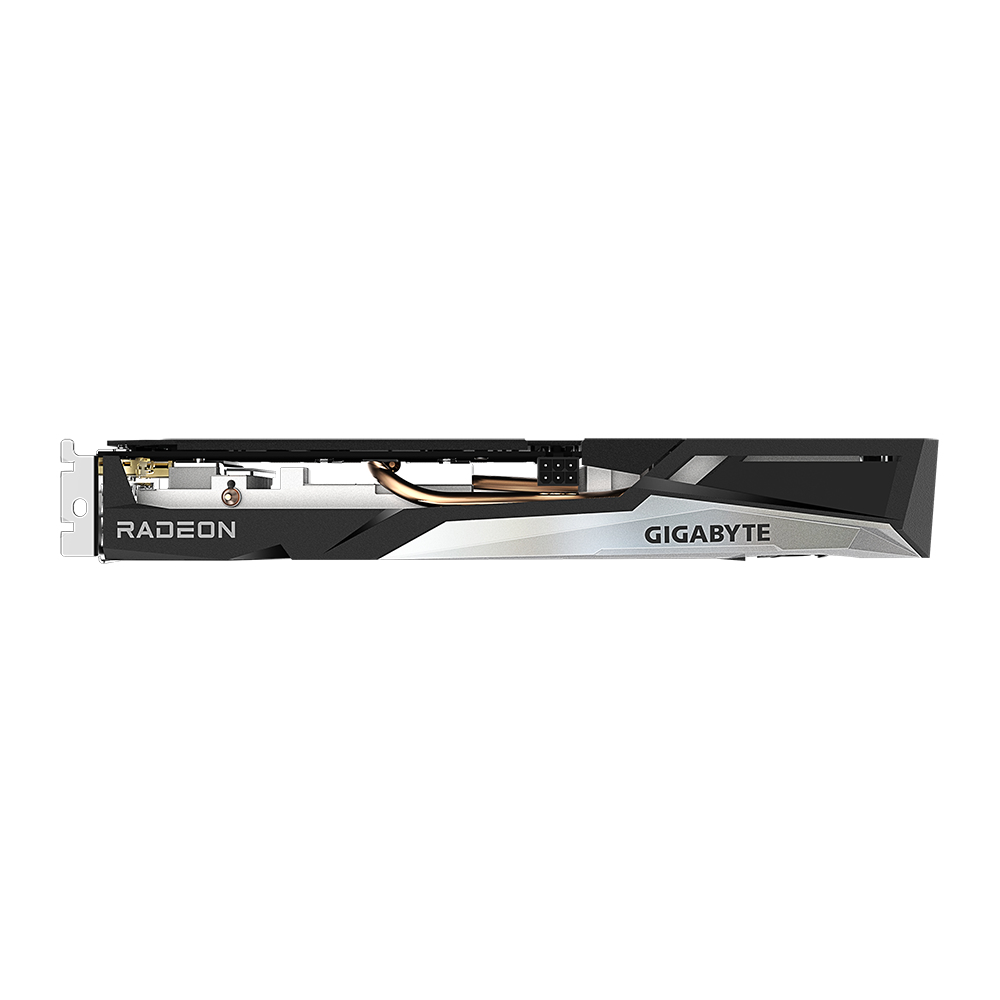

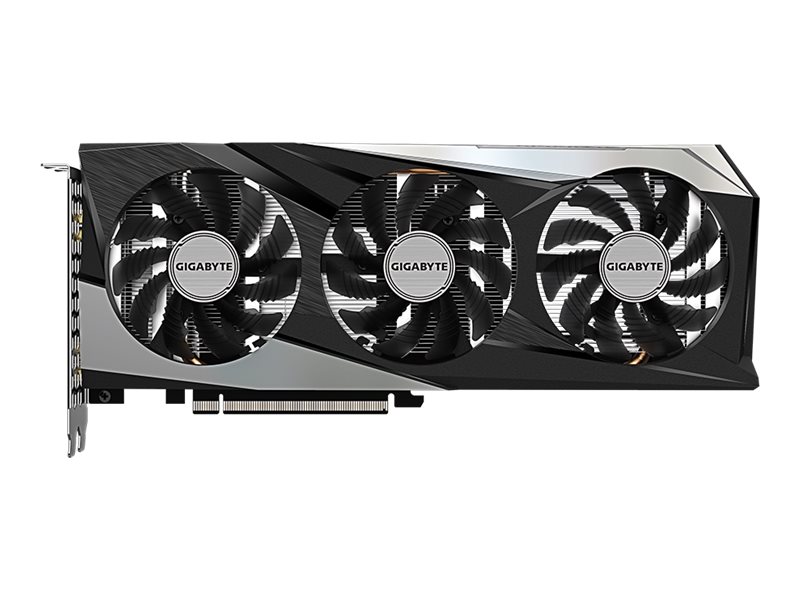

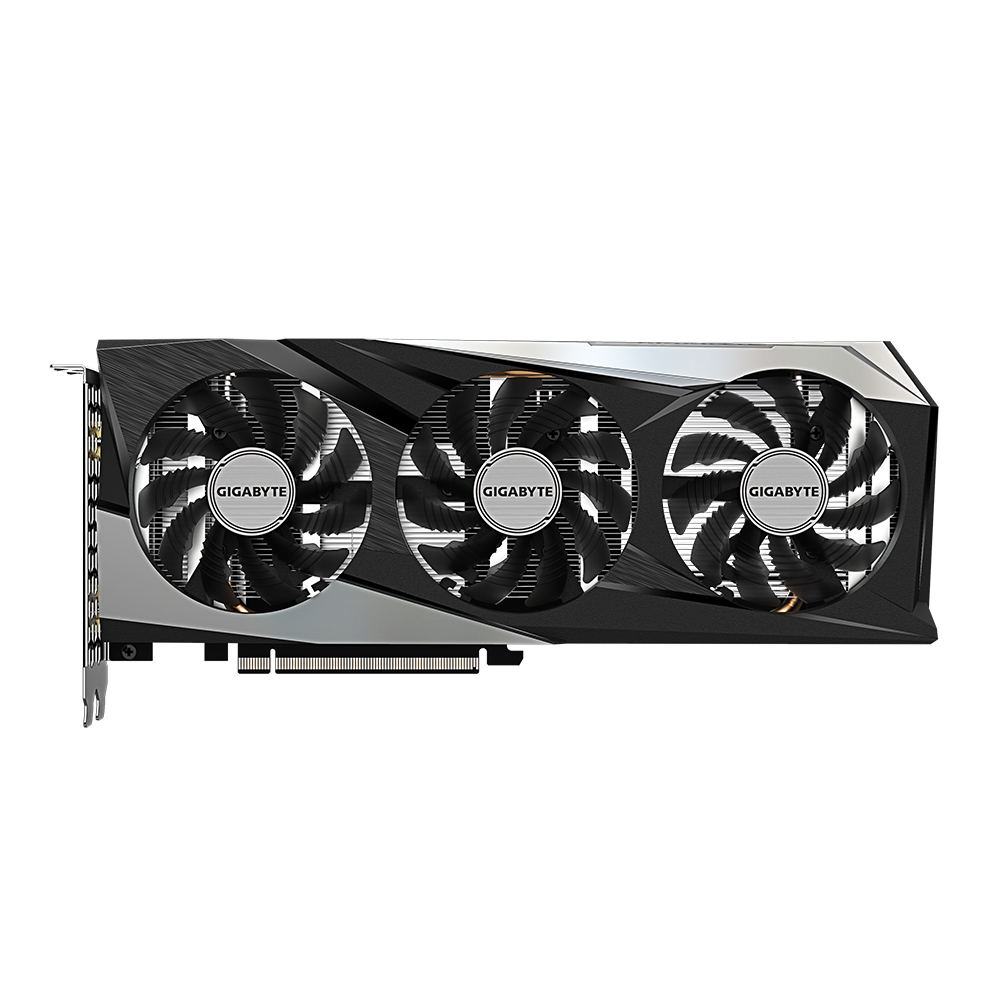

WINDFORCE 3XCOOLING SYSTEMThe WINDFORCE 3X cooling system features three unique blade fans, alternate spinning, composite copper heat pipe directly touches GPU, Screen cooling and 3D active fan, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGAlternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.SMOOTH AIRFLOWGIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU.PROTECTION BACK PLATEThe back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.ULTRA COOLINGLower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.LOW POWER LOSSMetal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.LONGER LIFELower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.AORUS ENGINEThe cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game s requirements.
| Processor | |
| Graphics processor family: | AMD |
| Graphics processor: | Radeon RX 6500 XT |
| Maximum resolution: | 7680 x 4320 pixels |
| CUDA: |  |
| Parallel processing technology support: | Not supported |
| Processor boost clock speed: | 2825 MHz |
| Processor boost clock speed (Gaming mode): | 2685 MHz |
| Stream processors: | 1024 |
| Maximum displays per videocard: | 2 |
| Lithography: | 6 nm |
| Memory | |
| Discrete graphics card memory: | 4 GB |
| Graphics card memory type: | GDDR6 |
| Memory bus: | 64 bit |
| Memory clock speed: | 18000 MHz |
| Memory bandwidth (max): | 144 GB/s |

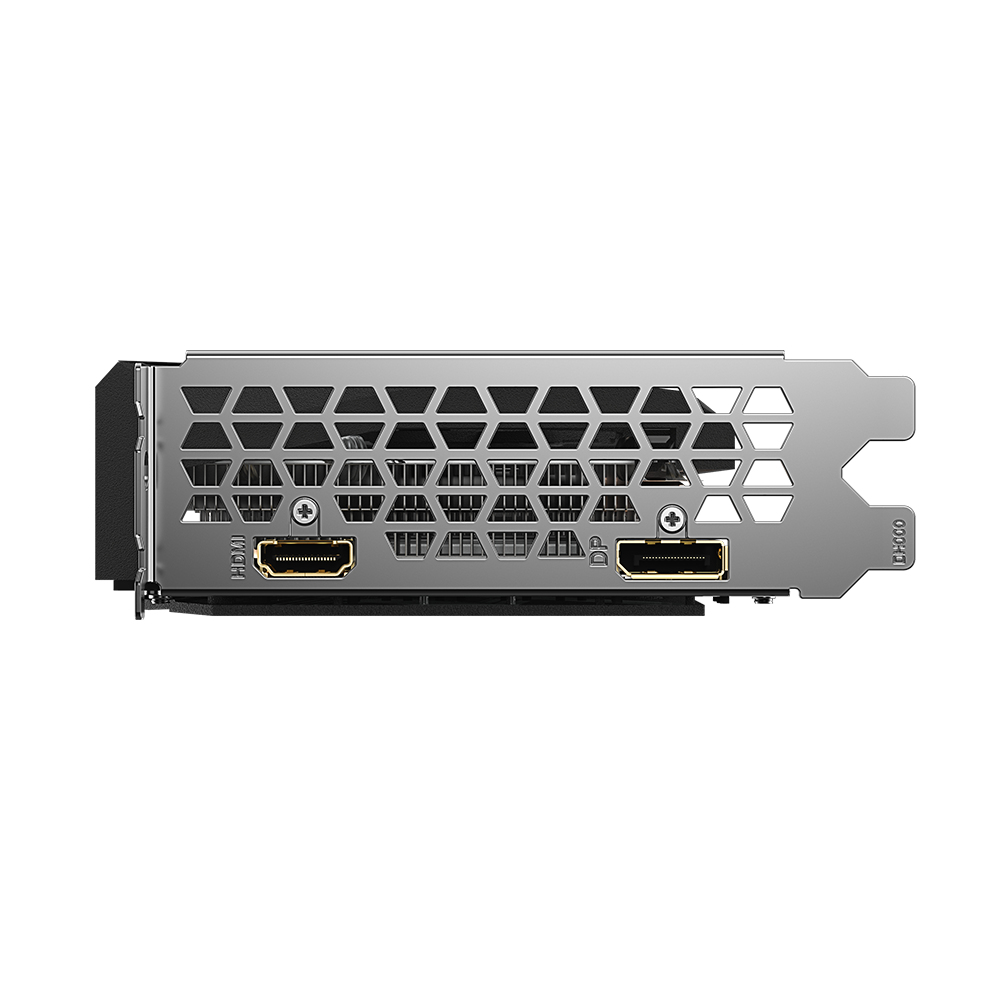

| Ports & interfaces | |
| Interface type: | PCI Express 4.0 |
| HDMI ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| HDMI version: | 2.1 |
| DisplayPort version: | 1.4a |
| Performance | |
| TV tuner integrated: | |
| DirectX version: | 1 2 Ultimate |
| OpenGL version: | 4.6 |
| AMD FreeSync: |  |
| Design | |
| Cooling type: | Active |
| Cooling technology: | GIGABYTE WINDFORCE 3X |
| Number of fans: | 3 fan(s) |
| Product colour: | Grey |
| Power | |
| Minimum system power supply: | 400 W |
| Supplementary power connectors: | 1x 6-pin |
| Logistics data | |
| Harmonized System (HS) code: | 84733020 |
| Weight & dimensions | |
| Depth: | 114 mm |
| Height: | 40 mm |
| Width: | 282 mm |
| Packaging data | |
| User guide: | |
