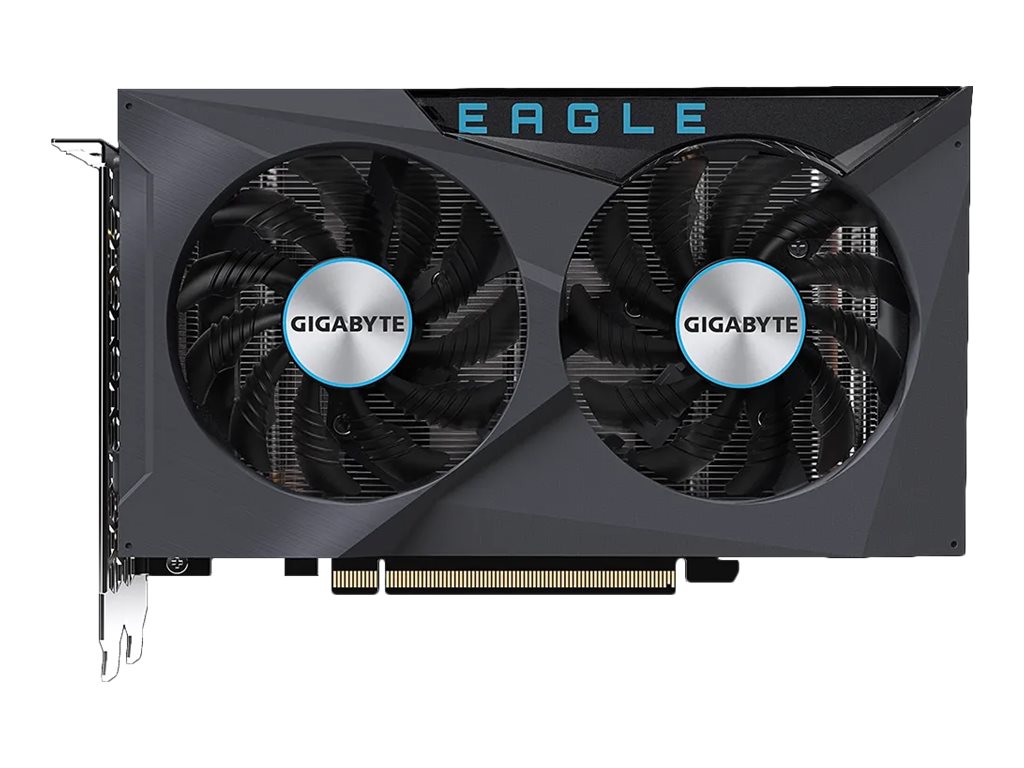

Gigabyte Radeon RX 6400 EAGLE 4G AMD 4 GB GDDR6

FEATURES
Powered by AMD RDNA 2 Radeon RX 6400
Integrated with 4GB GDDR6 64-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Graphene nano lubricant

CORE CLOCK
Boost Clock* : up to 2321 MHz
Game Clock* : up to 2039 MHz

WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features two unique blade fans, alternate spinning, composite copper heat pipes, copper plate and 3D active fan, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.

SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

HEAT PIPES AND COPPER PLATE
The shape of the pure copper heat pipe contacts with the GPU through a copper plate.

ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.


FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game s requirements.

Processor
Graphics processor family:	AMD
Graphics processor:	Radeon RX 6400
Maximum resolution:	7680 x 4320 pixels
CUDA:
Processor boost clock speed:	2321 MHz
Processor boost clock speed (Gaming mode):	2039 MHz
Memory
Discrete graphics card memory:	4 GB
Graphics card memory type:	GDDR6
Memory bus:	64 bit
Memory clock speed:	16000 MHz
Data transfer rate:	16 Gbit/s
Memory bandwidth (max):	128 GB/s
Ports & interfaces
Interface type:	PCI Express 4.0
HDMI ports quantity:	1
DisplayPorts quantity:	1
HDMI version:	2.1
DisplayPort version:	1.4
Performance
TV tuner integrated:
DirectX version:	12.0
OpenGL version:	4.6
Dual Link DVI:
Design
Cooling type:	Active
Number of fans:	1 fan(s)
Bracket height:	Low-Profile (LP)
Number of slots:	1
Power
Minimum system power supply:	350 W
Logistics data
Harmonized System (HS) code:	84733020
Weight & dimensions
Depth:	192 mm
Height:	38 mm
Width:	117 mm
Packaging data
Package type:	Box
