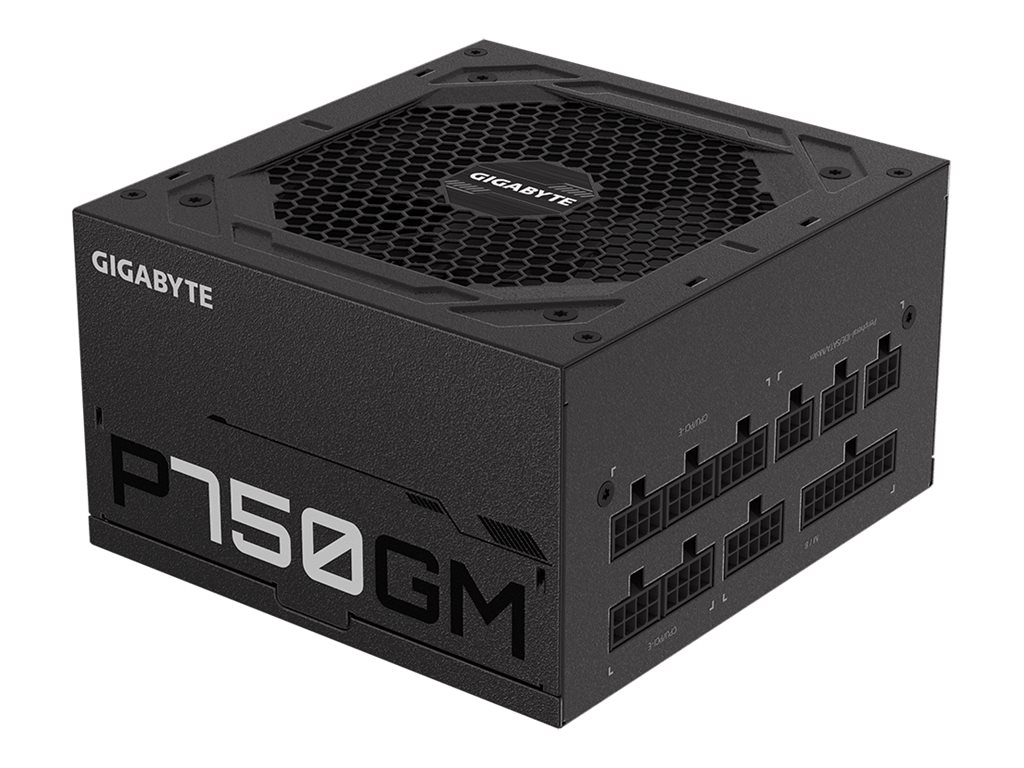

Gigabyte P750GM power supply unit 750 W 20+4 pin ATX ATX Black

FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.HIGH QUALITY JAPANESE CAPACITORSThe main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.120MM SMART HYDRAULIC BEARING (HYB) FANThe fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.SINGLE +12V RAILSingle +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

Power
Total power:	750 W
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Input current:	12-6 A
Power Factor Correction (PFC) type:	Active
Hold time:	16 ms
Efficiency:	90%
Power protection features:	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin):	4
Motherboard power cable length:	61 cm
Number of SATA power connectors:	8
SATA power cable length:	150,600 mm
Peripheral (Molex) power cable length:	120,500 mm
EPS power connector (4+4 pin):
PCI Express power connectors (6+2 pin):	4
PCI Express power cable length:	60 cm
CPU power connector (4+4 pin):
CPU power cable length:	60 cm
ATX power connector (20+4 pin):
Floppy drive power connector:	1
Floppy disk drive cable length:	12 cm
PCI Express connector:
Cabling type:	Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Gold
ATX version:	2.31
Mean time between failures (MTBF):	100000 h
Design
Product colour:	Black
Cooling type:	Active
Fan diameter:	12 cm
Number of fans:	1 fan(s)
Fan location:	Top
Packaging content
Cables included:	CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width:	150 mm
Depth:	140 mm
Height:	86 mm
Logistics data
Harmonized System (HS) code:	84733020
