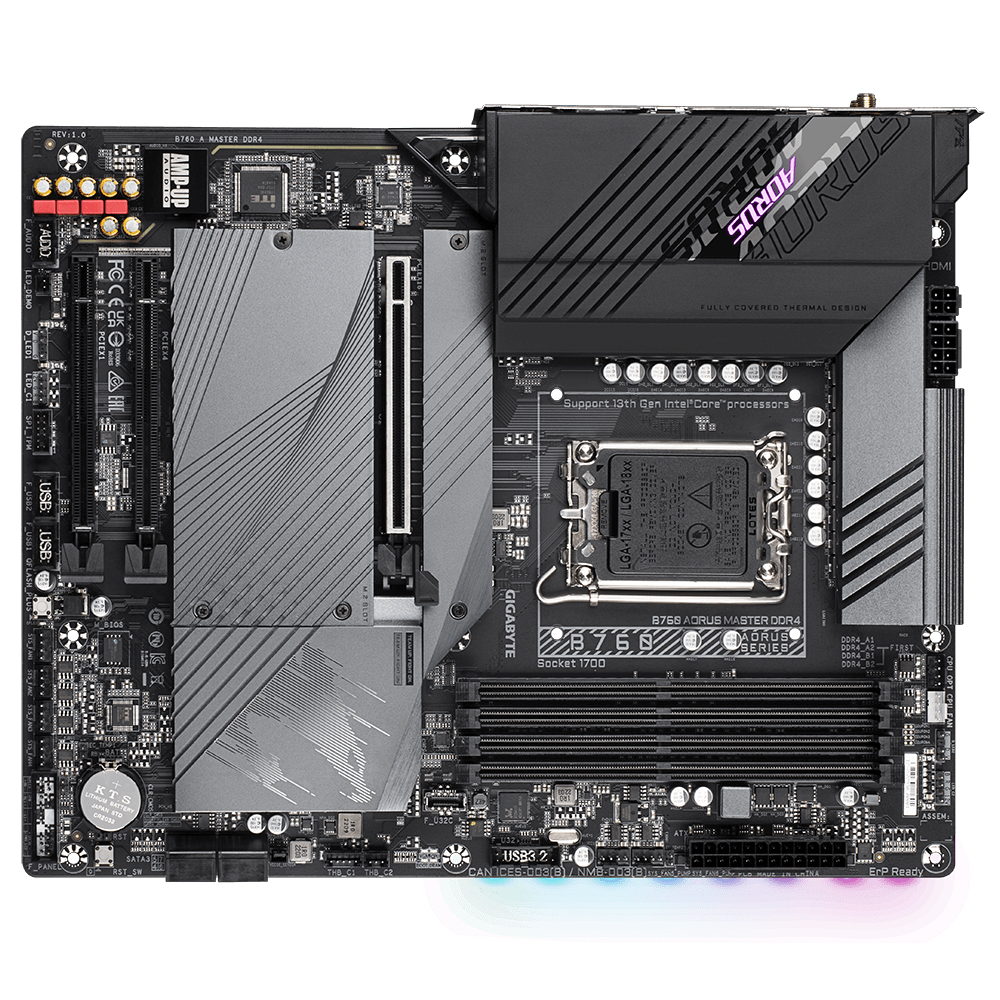

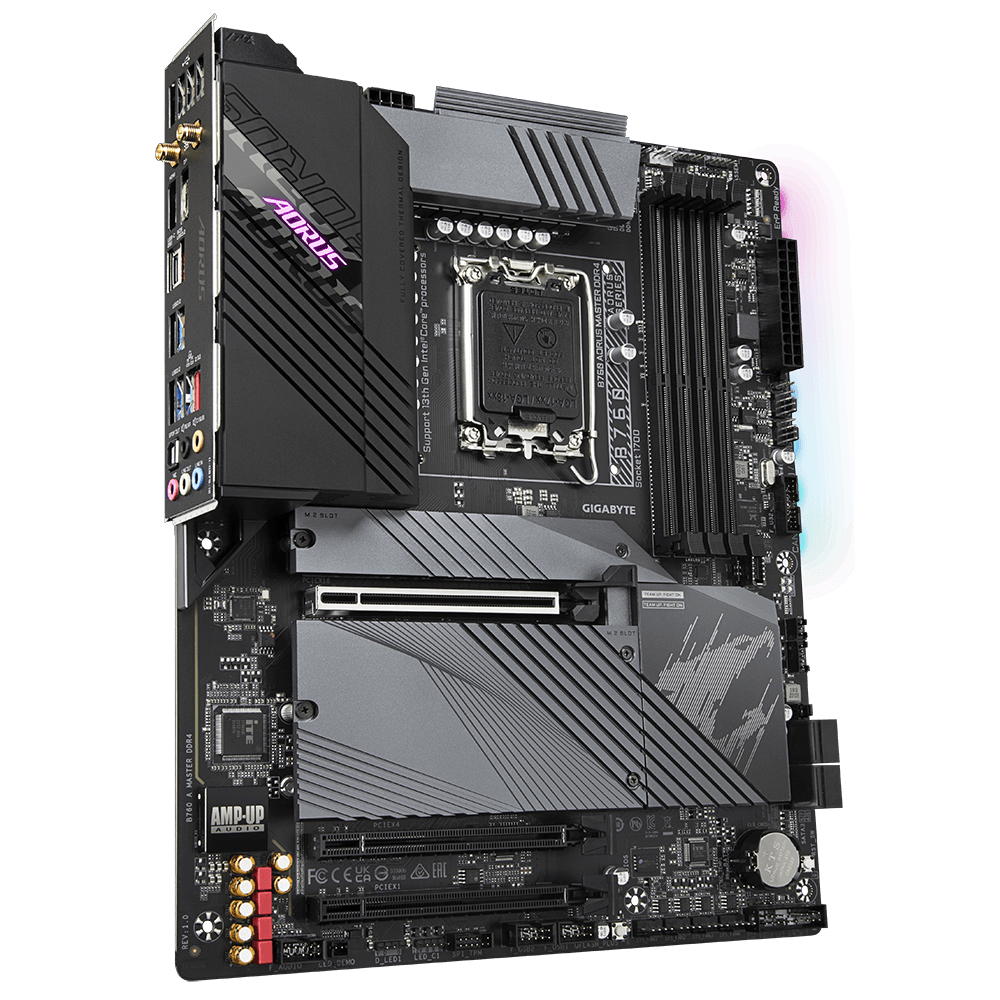

Gigabyte B760 AORUS MASTER DDR4 motherboard Intel B760 Express LGA 1700 ATX

Twin Digital VRM DesignTo ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.PCIe 4.0 x16 SlotReinforced PCIe 4.0 x16 with lower impedance.3 x PCIe 4.0 x4 M.2 ConnectorsM.2 PCIe 4.0 x4 slot with lower impedance.Support for DDR4 XMP Up to 5333MHz and Beyond*AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.Shielded Memory RoutingAll memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.Triple PCIe 4.0 x4 M.2 Connectors with Thermal GuardAORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems' potential.GIGABYTE PerfDrivePerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core processors.GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.2X Large SurfaceIncreased surface area up to 2X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.Real One-piece BuildTMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.Multi-Cut DesignTMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.3% Cooler by implementing2X copper PCB DesignBy adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it s high thermal conductivity and lower impedance.Noise DetectionWith the new Noise Detection function, you can monitor noise level of all devices including fans, CPU coolers, graphics card, etc. in real time, and you can determine how fast your fan speed needs to be. Our bundled Noise Detection cable doesn t include any sound recording function, it simply detects sound pressure while protecting your privacy.SMART FAN 6Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.802.11ax Wi-Fi 6EThe latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.Smart Antenna2X signal strength compared to traditional antenna design.AORUS Antenna with smart antenna function for the best WIFI signal transmitting.Connecting the Future - USB 3.2 Gen 2x2 Type-C®Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.Connecting the Future - Front USB3.2 Gen 2 Type-C®USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C and the traditional USB Type-A connector for better compatibility over a wider range of devices.True High-Fidelity Music (Realtek ALC1220)Paired with Realtek's latest ALC1220 Codec, playback for surround sound audio and DSD enabled music are easier than ever.Audiophile Grade Capacitors (WIMA & Premium Grade Audio)To ensure a studio-quality experience, WIMA and Premium Grade Audio capacitors are used to provide power to the overall system.Hi-Res AudioHi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.RGB Fusion Multi-Zone Light Show DesignNow offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.Multi-keyA multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.GIGABYTE Ultra Durable design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.EZ-LatchWith GIGABYTE EZ-Latch, you can DIY your PC in no time, quick and easy.PCIe EZ-LatchUnlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.Q-Flash PlusUpdate the BIOS easily without installing the CPU, memory and graphics card.With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you re good to go!

Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Compatible processor series:	Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold
Supported processor sockets:	LGA 1700
Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	2
Maximum internal memory:	128 GB
Memory slots type:	DIMM
Memory channels:	Dual-channel
ECC:
Non-ECC:
Supported memory clock speeds:	2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
Unbuffered memory:
Storage controllers
Supported storage drive interfaces:	M.2, PCI Express 4.0, SATA III
Supported storage drive types:	HDD & SSD
RAID support:
RAID levels:	0, 1, 5, 10
Graphics
Parallel processing technology support:	Not supported
Maximum resolution:	4096 x 2304 pixels
HDCP:
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	4
Audio connector:
Front panel audio connector:
Front panel connector:
ATX Power connector (24-pin):
CPU fan connector:
Chassis intrusion connector:
EPS power connector (8-pin):
12V power connector:
RGB LED pin header:

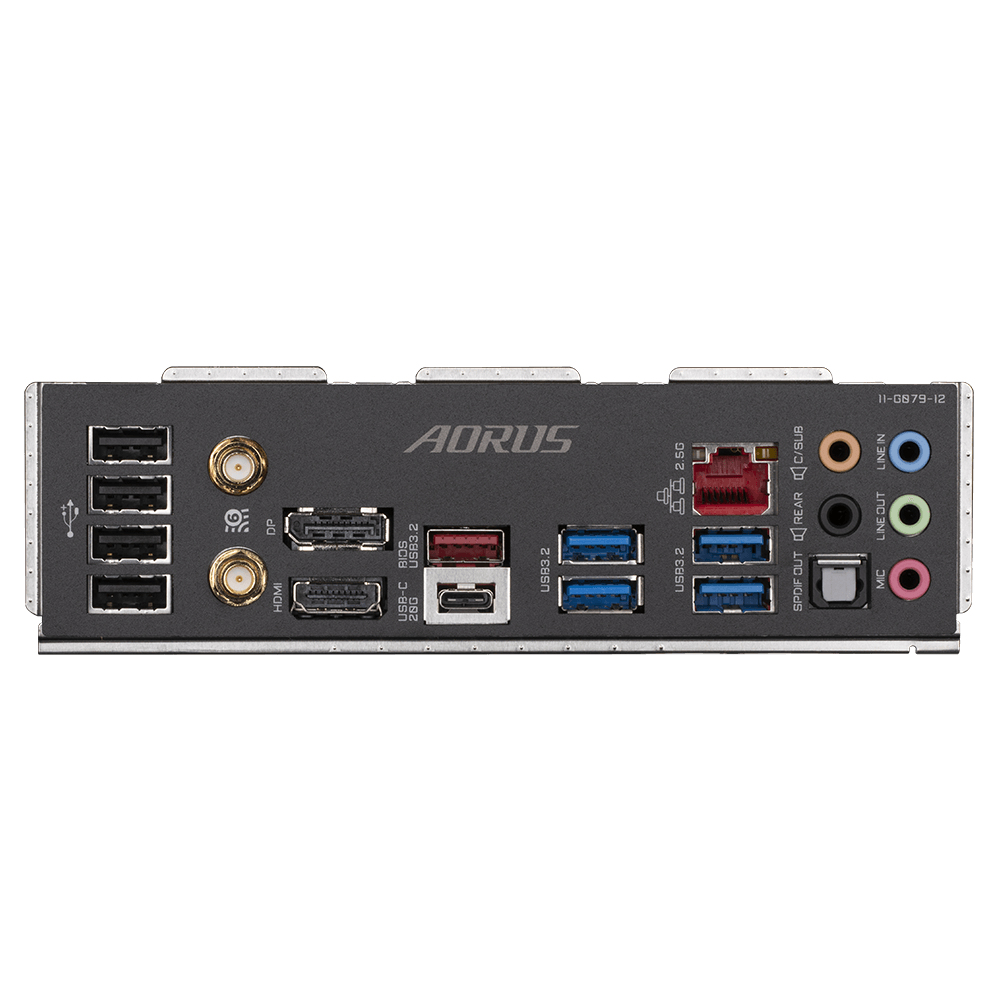

Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
USB 3.2 Gen 2x2 Type-C ports quantity:	1
HDMI version:	2.0
DisplayPorts quantity:	1
DisplayPort version:	1.2
Headphone outputs:	2
Line-in:
S/PDIF out port:
WiFi-AP antenna jack:	2
USB connector type:	USB Type-A, USB Type-C
Network
Wi-Fi:
Ethernet LAN:
Ethernet interface type:	2.5 Gigabit Ethernet
Top Wi-Fi standard:	Wi-Fi 6 (802.11ax)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller model:	Intel Wi-Fi 6E AX211
Bluetooth:
Bluetooth version:	5.3
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel B760 Express
Audio output channels:	7.1 channels
PC health monitoring:	Fan, Temperature, Voltage, Water cooling
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x16 slots:	1
Number of M.2 (M) slots:	2
BIOS
BIOS type:	UEFI AMI
BIOS memory size:	256 Mbit
ACPI version:	5.0
Clear CMOS jumper:
Desktop Management Interface (DMI) version:	2.7
System Management BIOS (SMBIOS) version:	2.7
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Packaging content
Cables included:	SATA
