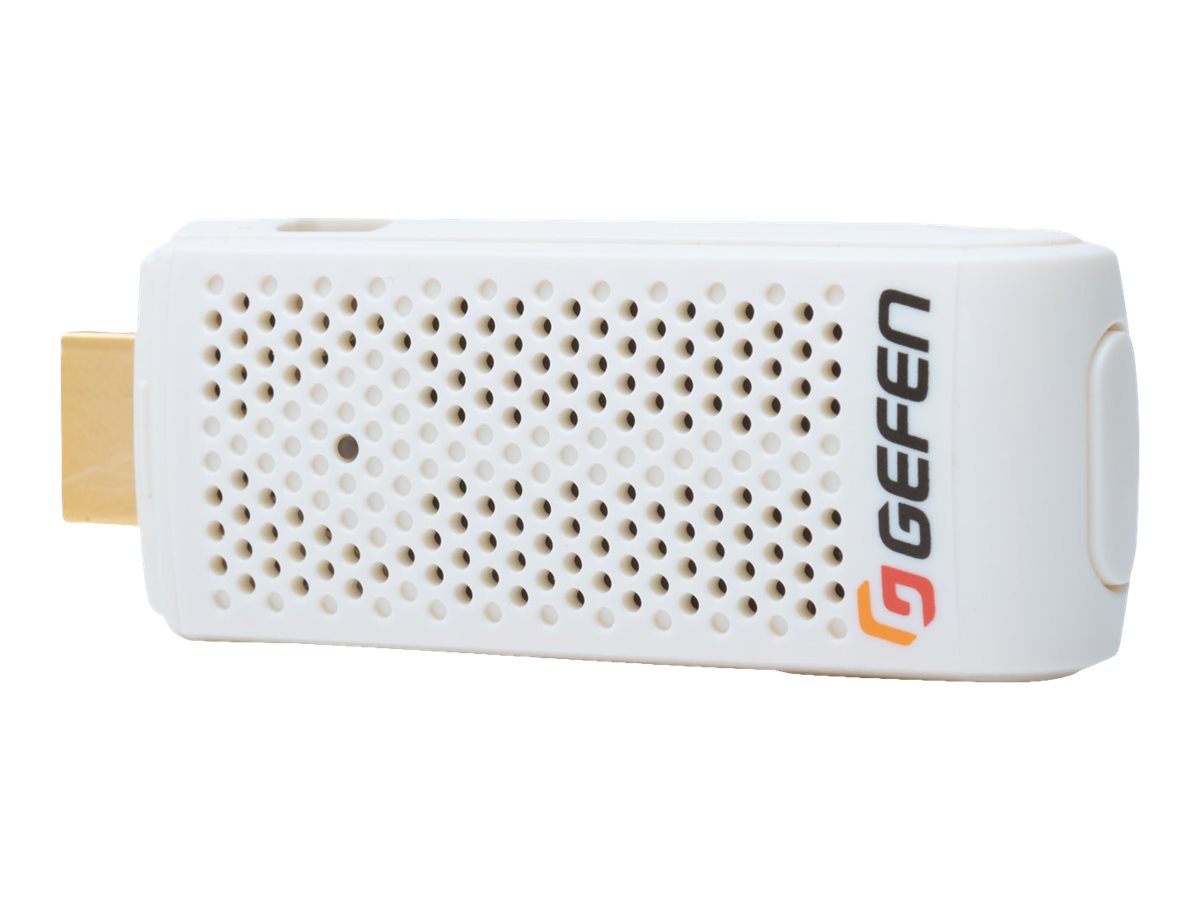

Wirelessly extends HDMI video at 1080p Full HD with multichannel digital audio up to 33 feet (10 meters)The Wireless for HDMI 5 GHz SR (Short Range) Extender system sends high definition audio and video to any HDTV screen up to 33 feet (10 meters). It extends HDCPcompliant HDMI AV content from computers, game consoles, set-top boxes, Blu-ray players, and other AV sources to a remotely located display. HD resolutions up to 1080p Full HD, 7.1-channels of LPCM digital audio, and 5.1 channels of Dolby® or DTS® formats are supported. The small Stick Sender connects directly to an HDMI port, and can be powered either from a powered USB port or from the included power supply. It is ideal for high-definition AV extension in a conference room or home theater installation that requires occasional connection of portable devices such as a presentation laptop computer or a video camera.
Features | |
Type: | AV transmitter |
Maximum resolution: | 1920 x 1080 pixels |
Audio output channels: | 7.1 channels |
Security algorithms: | 128-bit AES |
HDCP: | ![]() |
3D: | ![]() |
Firmware upgradeable: | ![]() |
Product colour: | White |
Frequency range: | 5.19 - 5.23 GHz |
Ports & interfaces | |
Connectivity technology: | Wireless |
HDMI in: | 1 |
Power | |
Input current: | 2 A |
Operating voltage (transmitter): | 5 V |
Power consumption (max): | 3 W |
USB powered: | ![]() |
Operational conditions | |
Operating temperature (T-T): | 0 - 40 °C |
Storage temperature (T-T): | -10 - 60 °C |
Operating relative humidity (H-H): | 10 - 85% |
Storage relative humidity (H-H): | 5 - 90% |
Weight & dimensions | |
Width: | 30 mm |
Depth: | 80 mm |
Height: | 16 mm |
Weight: | 30 g |
Packaging data | |
Package weight: | 900 g |
