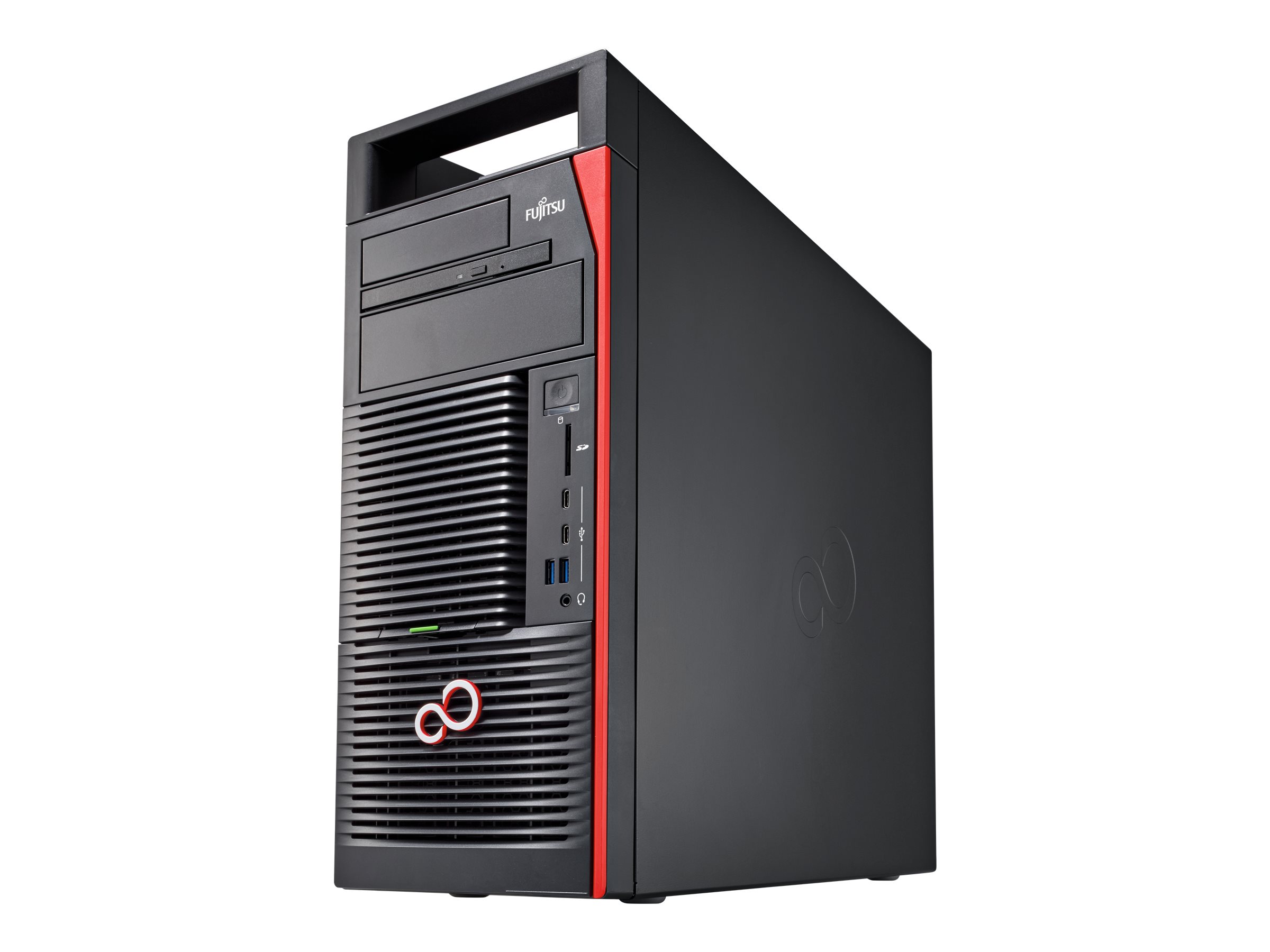

At Fujitsu, we are proud of our engineering capabilities which allowed us to optimize the CELSIUS M7010 to combat today s professional and technical challenges making it the ideal desktop workstation for computer-aided engineering area as well as demanding media & entertainment applications.Perfomance you can count on- Powerful Intel® Xeon® Processor W Family- Support of Windows 10 Pro for Workstations- Support of up to 512 GB DDR4 2,933 memory- Fujitsu SSD PCIe card (up to 2 x 2 TB)- Spectrum of performance due to a wide range of professional grade featuresSmart security- Optional security lock (side door and front access)- Intrusion detector sensor integrated into the power supply- USB keyboard with integrated PalmSecure : Easy log-on with the help of your palm veins- Human centric innovation meets securityUltimate usability and easy access- Cable-free design and green touchpoints- Cold-plug technology: Storage accessible via a front disk tray- Rack mountable (4U)- Engineering excellenceDesigned and engineered in Germany- Comprehensive testing in certified in-house laboratories for 24/7 operation- Intelligent tri-channel thermal management- Quality you can trustWe are (VR) ready- Intel® processors with up to 4.30 GHz frequency- NVIDIA® Quadro® RTX8000, RTX6000, RTX5000 and RTX4000 VR-ready graphics cards- Enjoy a fully immersive and real-time virtual reality experience with low latency at high frame rates
| Processor | |
| Processor family: | Intel® Xeon® |
| Processor manufacturer: | Intel |
| Processor model: | W-2225 |
| Processor frequency: | 4.1 GHz |
| Processor cores: | 4 |
| Processor boost frequency: | 4.6 GHz |
| Processor cache: | 8.25 MB |
| Number of processors installed: | 1 |
| Memory | |
| Internal memory: | 64 GB |
| Maximum internal memory: | 512 GB |
| Internal memory type: | DDR4-SDRAM |
| Memory layout (slots x size): | 4 x 16 GB |
| Memory slots: | 8x DIMM |
| ECC: |  |
| Memory channels: | Quad-channel |
| Storage | |
| Total storage capacity: | 512 GB |
| Optical drive type: | DVD Super Multi |
| Storage media: | SSD |
| Total SSDs capacity: | 512 GB |
| Number of SSDs installed: | 1 |
| SSD interface: | NVMe |
| NVMe: | |
| SSD form factor: | M.2 |
| Graphics | |
| Discrete graphics card: | |
| Discrete graphics card model: | NVIDIA Quadro RTX A4000 |
| Discrete graphics card memory: | 16 GB |
| Network | |
| Ethernet LAN: | |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Cabling technology: | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| Microphone in: | |
| Headphone outputs: | 1 |
| Line-out: | |
| Line-in: | |
| Total number of SATA connectors: | 8 |
| Number of SATA III connectors: | 8 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots: | 2 |
| PCI Express x4 (Gen 3.x) slots: | 2 |
| PCI Express x8 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 3.x) slots: | 2 |
| Design | |
| Chassis type: | Rack-mounted chassis |
| Product colour: | Black |
| Placement supported: | Horizontal/Vertical |
| Number of 3.5" bays: | 5 |
| Number of 5.25" bays: | 1 |
| Number of 2.5" bays: | 4 |
| Cable lock slot type: | Kensington |
| Performance | |
| Product type: | Workstation |
| Motherboard chipset: | Intel® C422 |
| Audio chip: | Realtek ALC671 |
| Audio system: | High Definition Audio |
| Password protection: | |
| BIOS type: | UEFI |
| Trusted Platform Module (TPM): | |
| Software | |
| Operating system installed: | Windows 11 Pro |
| Operating system architecture: | 64-bit |
| Processor special features | |
| Intel 64: | |
| Enhanced Intel SpeedStep Technology: | |
| Embedded options available: |  |
| Intel VT-x with Extended Page Tables (EPT): | |
| Intel TSX-NI: | |
| Idle States: | |
| Intel Trusted Execution Technology: | |
| Execute Disable Bit: | |
| Intel Flex Memory Access: | |
| Intel Demand Based Switching: | |
| Intel Software Guard Extensions (Intel SGX): | |
| CPU configuration (max): | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d): | |
| Intel Virtualization Technology (VT-x): | |
| Power | |
| Power supply: | 800 W |
| Power supply input voltage: | 100 - 240 V |
| Power supply input frequency: | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T): | 10 - 35 °C |
| Operating relative humidity (H-H): | 5 - 85% |
| Sustainability | |
| Sustainability certificates: | ENERGY STAR |
| Weight & dimensions | |
| Width: | 176 mm |
| Depth: | 500 mm |
| Height: | 433 mm |
| Weight: | 18 kg |
| Packaging content | |
| Display included: | |
| Mouse included: | |
| Keyboard included: | |
