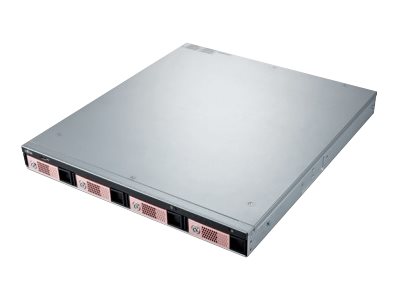

Fujitsu CELVIN NAS QR806 Rack (1U) Ethernet LAN Black, Silver

The FUJITSU Storage CELVIN® NAS QR806 is the ideal solution for file sharing, end to endbackup options and SAN (Storage Area Network) integration for SMB customers - enablingcentralized data management at a reasonable price. It has dual power supplies for superiorreliability with up to 24 TB of storage capacity and is designed to be rack mounted rightalongside other networked enterprise equipment. Business Server Features- Rack mountable- Four hot swappable business critical or NAS drives- VMWare®/Citrix®/HyperV Capable- Redundant power supplies and cooling- High peformance through 10Gbit Ethernet

Storage
Storage drives installed:
Total installed storage capacity:	24 TB
Number of storage drives installed:	4
Number of storage drives supported:	4
Installed storage drive type:	HDD
Supported storage drive types:	HDD & SSD
Storage drive capacity:	6000 GB
Storage drive interface:	Serial ATA, Serial ATA II, Serial ATA III
RAID support:
Storage drive size:	2.5/3.5"
Maximum supported storage capacity:	24 TB
RAID levels:	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays:
Supported file systems:	FAT32, HFS+, NTFS, ext3, ext4
Processor
Processor family:	AMD G
Processor frequency:	2 GHz
Processor cores:	4
Memory
Internal memory:	4 GB
Internal memory type:	DDR3L
Maximum RAM supported:	16 GB
Memory slots:	2
Flash memory:	512 MB
Network
Ethernet LAN:
Ethernet LAN data rates:	10,100,1000,10000 Mbit/s
DHCP client:
DHCP server:
iSCSI support:
Wake-on-LAN ready:
Ports & interfaces
Ethernet LAN (RJ-45) ports:	5
USB port:
USB 2.0 ports quantity:	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
Design
Chassis type:	Rack (1U)
Cooling type:	Active
Product colour:	Black, Silver
Number of fans:	2 fan(s)
Fan diameter:	4 cm
Performance
Type:	NAS
Backup function:
Number of users:	168 user(s)
Reset button:
Software
Windows operating systems supported:
Linux operating systems supported:
Mac operating systems supported:
Power
Power supply location:	Built-in
Power supply unit (PSU) capacity:	250 W
Number of power supply units:	2
Redundant power supply (RPS) support:
AC input voltage:	120-230 V
AC input frequency:	50 - 60 Hz
Weight & dimensions
Width:	439 mm
Depth:	499 mm
Height:	44 mm
Weight:	7.6 kg
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Operating relative humidity (H-H):	20 - 85%
