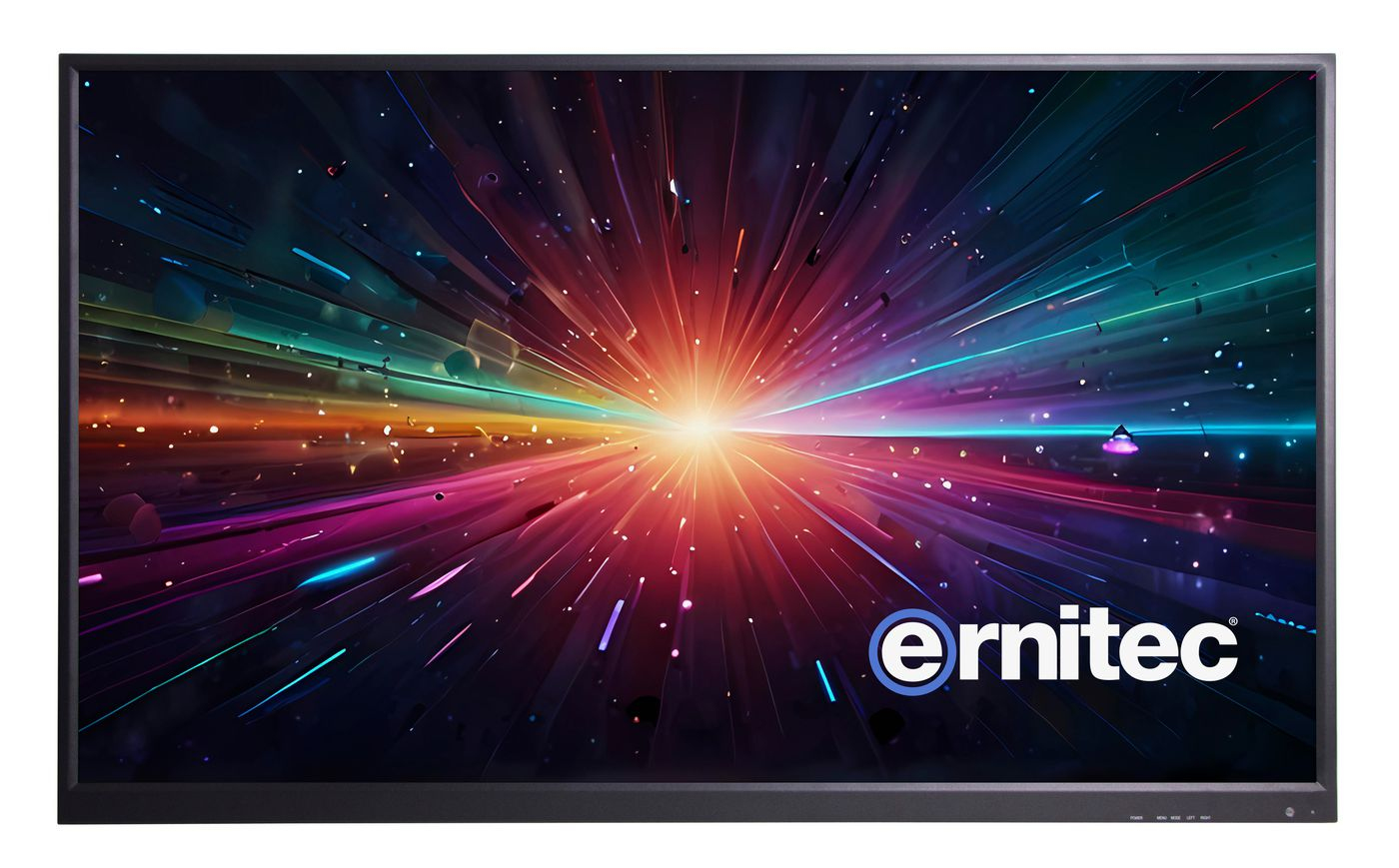

86" 4K Surveillance Monitor
The 0070-24186 is a high end 86" industrial grade 4K UHD monitor designed for professional surveillance environments that require maximum image detail, robust construction, and reliable 24/7 operation. With its imported industrial LED panel, the display delivers stunning 3840×2160 resolution, high brightness, strong contrast, and natural, accurate color reproduction ideal for large scale CCTV walls, control rooms, and security operations centers.
The monitor incorporates advanced 3D digital filtering and 3D noise reduction technologies, ensuring smooth motion, clean imagery, and distortion free display quality. Its wide 178° viewing angle provides consistent visibility across large rooms and multi viewer setups. The rugged metal chassis is engineered for harsh environments, offering anti static, anti magnetic, and anti interference protection to ensure long term stability.

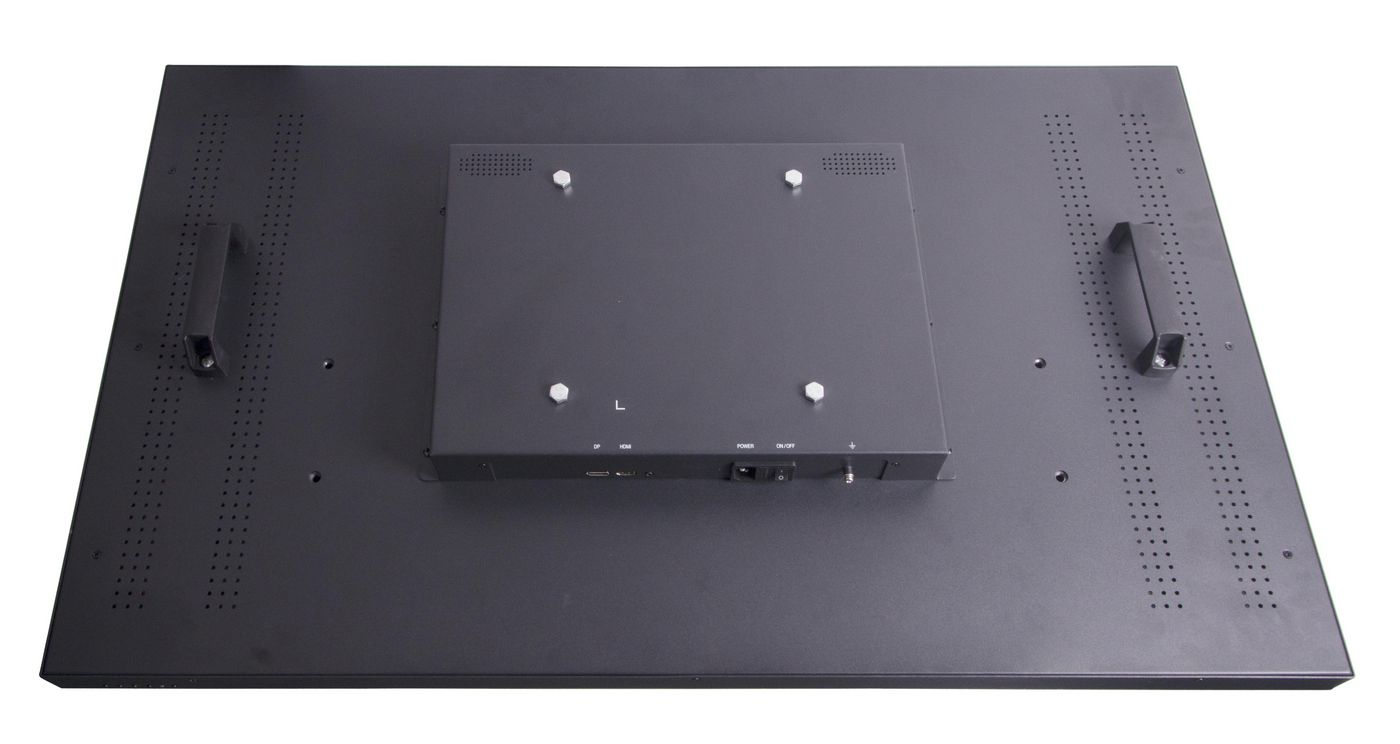

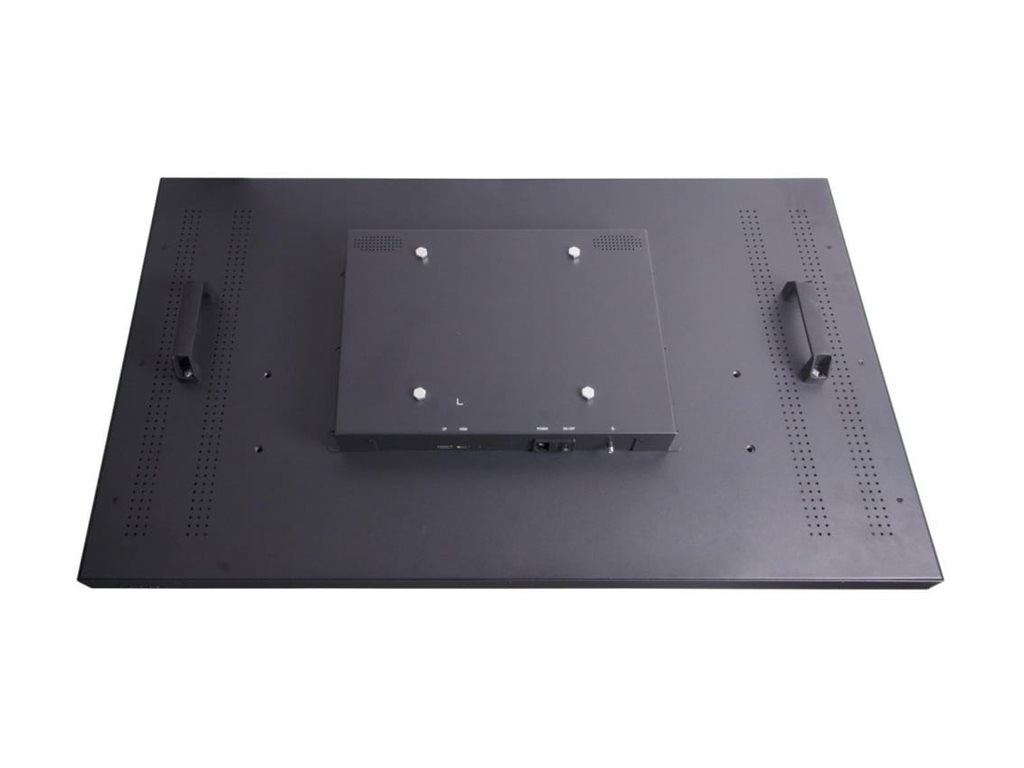

VESA size: 700x400
| Design | |
| Product colour: | Black |
| Housing material: | Metal |
| Certification: | EMC Class A |
| Display | |
| Display diagonal: | 2.18 m (86") |
| Display resolution: | 3840 x 2160 pixels |
| Display brightness: | 350 cd/m² |
| Viewing angle, horizontal: | 178° |
| Viewing angle, vertical: | 178° |
| Display number of colours: | 1.073 billion colours |
| Pixel pitch: | 0.248 x 0.248 mm |
| Contrast ratio (typical): | 5000:1 |
| Performance | |
| Analog signal format system: | PAL |
| VESA mounting: | Yes |
| Panel mounting interface: | 700 x 400 mm |
| Operating hours (hours/days): | 24/7 |
| On Screen Display (OSD) languages: | English |

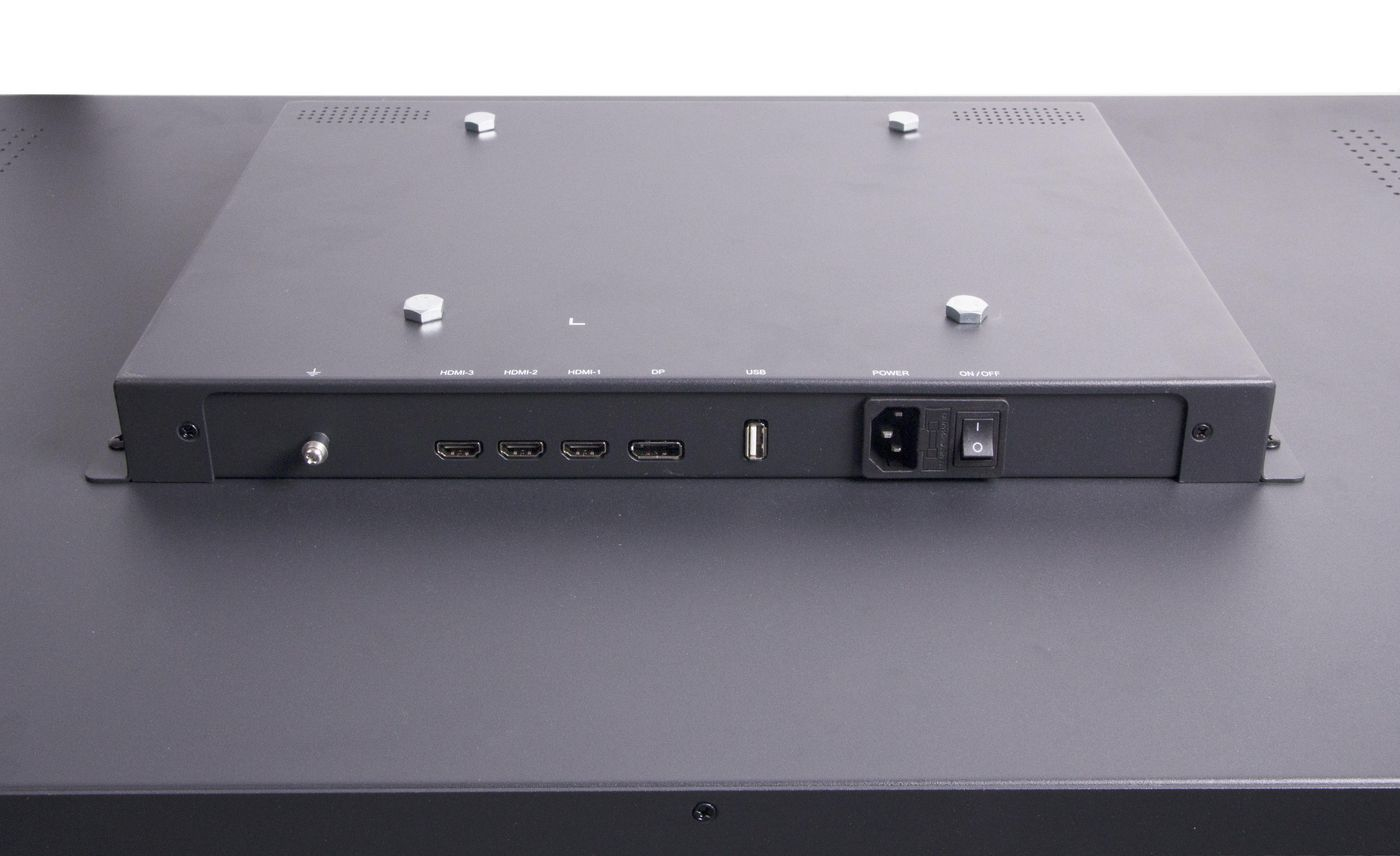

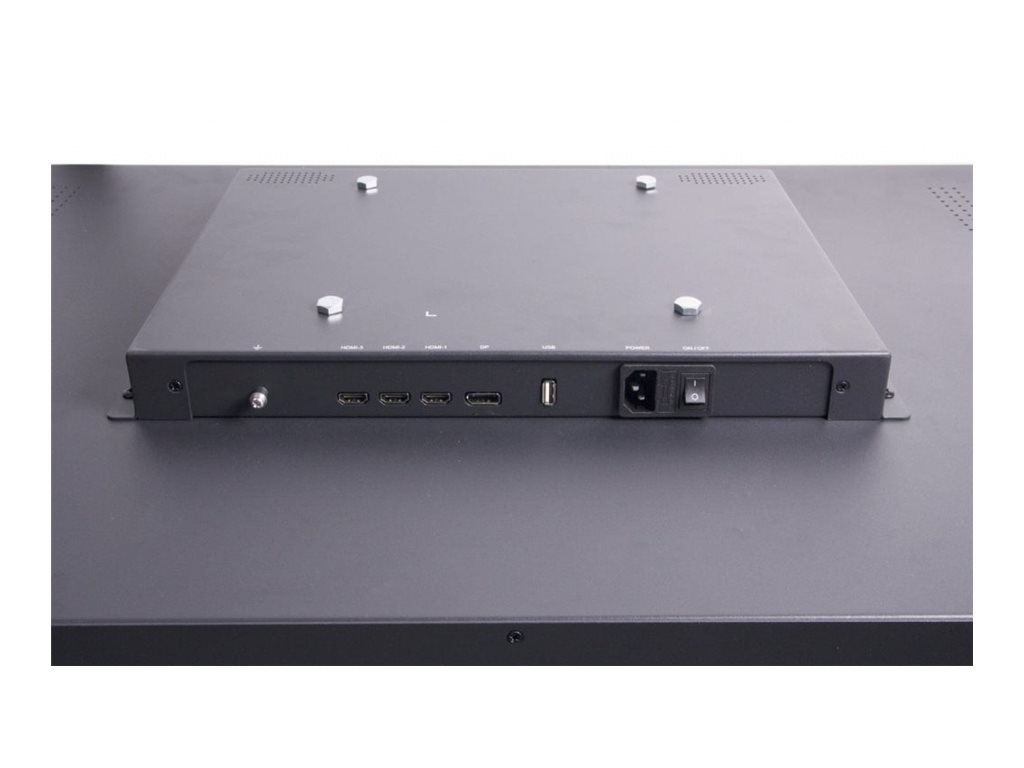

| Ports & interfaces | |
| HDMI ports quantity: | 3 |
| HDMI version: | 2.0 |
| DisplayPorts quantity: | 1 |
| VGA (D-Sub) ports quantity: | 0 |
| Power | |
| Power consumption (typical): | 110 W |
| AC input voltage: | 100-240 V |
| AC input frequency: | 50/60 Hz |
| Weight & dimensions | |
| Weight: | 76 kg |
| Height: | 1490 mm |
| Depth: | 380 mm |
| Width: | 2190 mm |
| Package width: | 2190 mm |
| Package depth: | 380 mm |
| Package height: | 1490 mm |
| Package weight: | 90 kg |
