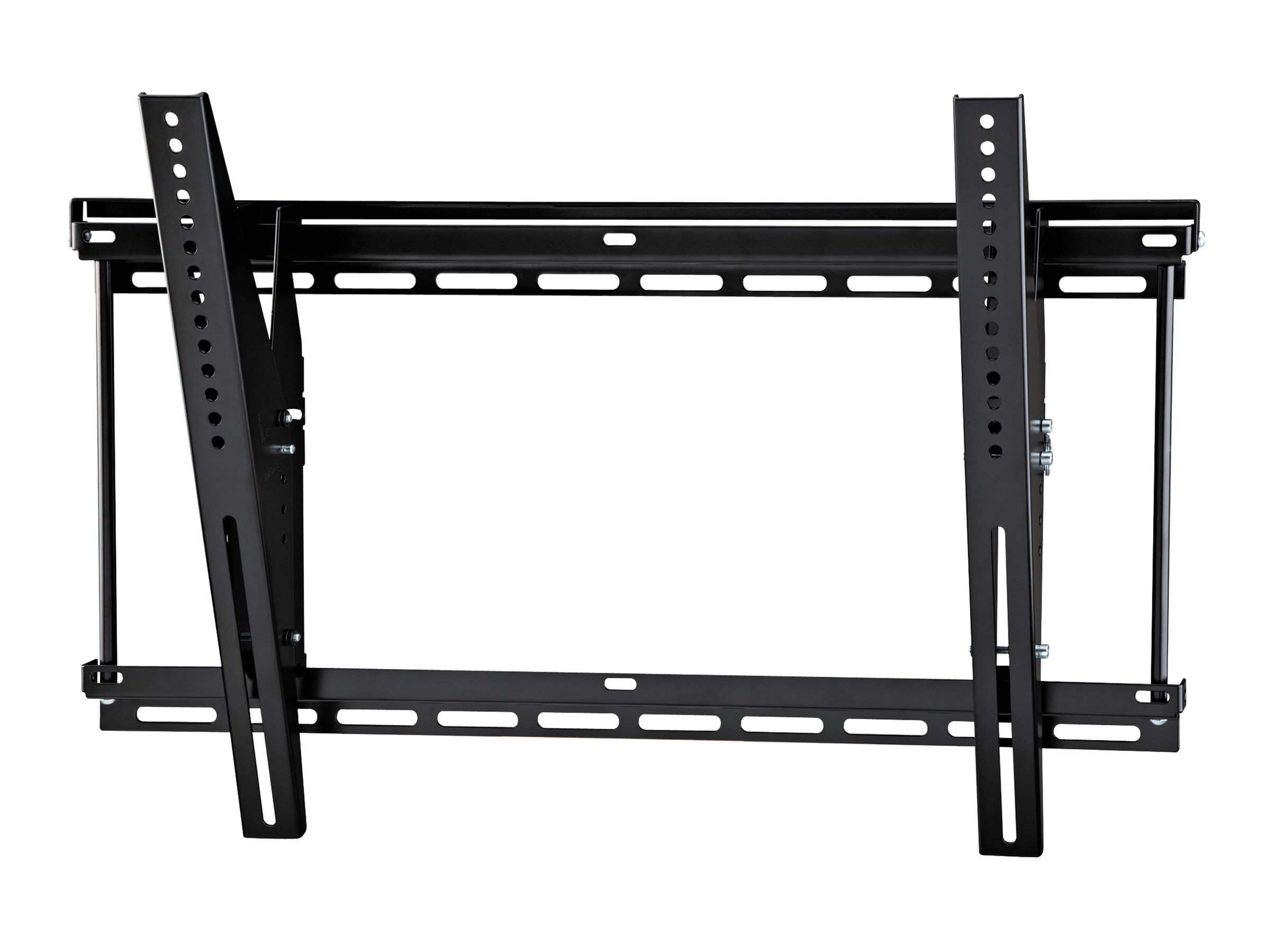

Fits most 37" 63" flat panels up to 175 lbs (79 kg) and is the ideal mount for those looking for an easy-to-use large tilt mount.Benefits-Tilt range up to 15º to reduce glare.-Universal rails for greater panel compatibility.-Lift n Lock allows you to easily attach your flat panel to the mount.-Tension adjustment for variable tilt.-Sliding lateral on-wall adjustment.-Open architecture provides easy access to in-wall wiring.-Locking bar secures panel to mount.-Simple to install and use.-Includes complete hardware kit.
| Mounting | |
| Maximum weight capacity: | 79 kg |
| Maximum screen size: | 160 cm (63") |
| Mounting type: | Wall |
| Minimum VESA mount: | 100 x 100 mm |
| Maximum VESA mount: | 600 x 400 mm |
| Minimum screen size: | 94 cm (37") |
| Panel mounting interface: | 100 x 100,200 x 100,200 x 200,280 x 150,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,600 x 200,600 x 400 |
| Ergonomics | |
| Tilt angle range: | 0 - 15° |
| Distance to the wall (max): | 17.8 cm |
| Distance to the wall (min): | 6.9 cm |
| Design | |
| Product colour: | Black |
| Certification: | UL |
| Power | |
| Remotely operated: | ![]() |
| Packaging content | |
| Mounting kit: | ![]() |
| Remote control included: | ![]() |
| Weight & dimensions | |
| Width: | 826 mm |
| Depth: | 69 mm |
| Height: | 533 mm |
| Weight: | 4.72 kg |
| Packaging data | |
| Package width: | 372 mm |
| Package depth: | 861 mm |
| Package height: | 81 mm |
| Package weight: | 9.3 kg |
| Logistics data | |
| Harmonized System (HS) code: | 85299097 |
