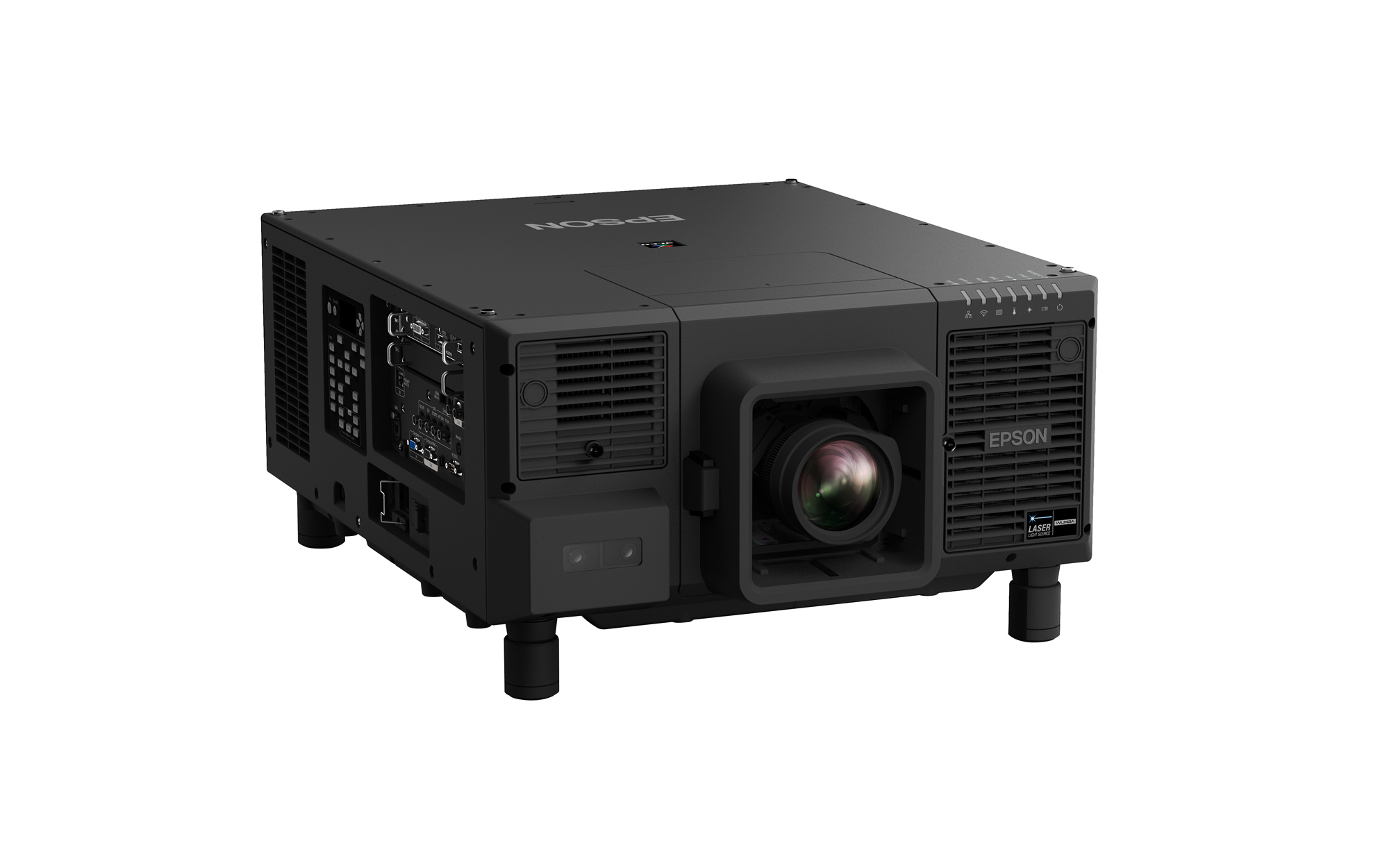

Epson V11H833840 | Epson EB-L20000U

Your settings

Languages

Welcome back!

You do not have any products in your shopping cart yet.

Details

Products description

Projector
Projector brightness:	20000 ANSI lumens
Projection technology:	3LCD
Projector native resolution:	WUXGA (1920x1200)
Contrast ratio (typical):	2000:1
Native aspect ratio:	16:10
Screen size compatibility:	1524 - 2540 mm (60 - 100")
Projection distance:	1.99 - 55.63 m
Projection distance (wide):	2 - 24.4 m
Projection distance (tele):	3.3 - 55.6 m
Contrast ratio (dynamic):	2500000:1
Number of colours:	1.07 billion colours
Projector brightness (economic mode):	14000 ANSI lumens
Projector brightness (portrait mode):	20000 ANSI lumens
Keystone correction, horizontal:	-30 - 30°
Keystone correction, vertical:	-45 - 45°
Matrix size:	2.62 cm (1.03")
White light output:	20000 ANSI lumens
Colour light output:	20000 ANSI lumens
Heat dissipation:	6324 BTU/h
Light source
Light source type:	Laser
Service life of light source:	20000 h
Service life of light source (economic mode):	30000 h
Lens system
Focus:	Manual
Focal length range:	36 - 57.3 mm
Aperture range (F-F):	1.8 - 2.3
Zoom capability:	Yes
Zoom type:	Auto
Zoom ratio:	1.6:1
Throw ratio:	1.57 - 2.56:1
Horizontal lens shift range:	-18 - 18%
Vertical lens shift range:	-60 - 60%
Lens position memory:	10
Interchangeable lens:	Yes
Video
Full HD:	Yes
3D:	No
Video colour modes:	Cinema, Dynamic, Presentation, DICOM simulation mode, Multi-projection, BT.709
Ports & interfaces
VGA (D-Sub) ports quantity:	2
HDMI ports quantity:	1
DVI port:	Yes
USB 2.0 ports quantity:	1
Serial interface type:	RS-232C
HDMI connector type:	Full-size
USB 2.0 Type-B ports quantity:	1
BNC input ports:	1
DC-in jack:	Yes
Network
Smart TV:	No
Ethernet LAN:	Yes
Ethernet LAN (RJ-45) ports:	1
Wi-Fi standards:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Storage
Card reader integrated:	No
Features
Noise level:	45 dB
Noise level (economic mode):	38 dB
Country of origin:	China
Password protection:	Yes
Design
Product type:	Large venue projector
Market positioning:	Presentation
Product colour:	Black
Placement:	Ceiling, Flying frame
Cable lock slot:	Yes
Cable lock slot type:	Kensington
Display
Built-in display:	No
Power
Power source:	AC
Power consumption (typical):	1860 W
Power consumption (standby):	0.5 W
Power consumption (PowerSave):	1123 W
Power consumption (economy mode):	1123 W
AC input voltage:	100-240 V
AC input frequency:	50 - 60 Hz
Software
Software support:	via: AMX, Crestron (Network), Extron
Operational conditions
Storage temperature (T-T):	-10 - 60 °C
Operating relative humidity (H-H):	20 - 80%
Storage relative humidity (H-H):	10 - 90%
Weight & dimensions
Weight:	49.6 kg
Width:	620 mm
Depth:	790 mm
Height:	358 mm
Package width:	800 mm
Package depth:	970 mm
Package height:	630 mm
Package weight:	64.3 kg
Packaging content
Remote control included:	Yes
Batteries included:	Yes
Cables included:	AC
Quick start guide:	Yes
Manual:	Yes
WLAN adapter included:	Yes
Bundled software:	EasyMP Monitor, EasyMP Multi PC Projection
Logistics data
Quantity per pack:	1 pc(s)
Products per pallet:	3 pc(s)
Products per pallet layer:	1 pc(s)
Products per pallet layer (UK):	1 pc(s)
Products per pallet (UK):	3 pc(s)
