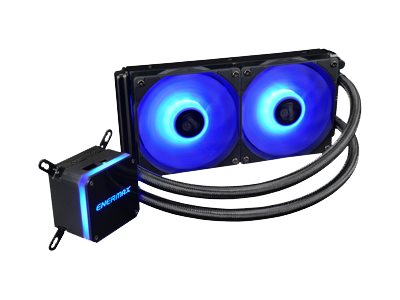

Enermax LIQMAX III Processor All-in-one liquid cooler Black

LIQMAX IIIWith LIQMAX III RGB, the successful LIQMAX series now finally receives RGB lighting. The water block with the acrylic look is equipped with the Aurabelt design, which provides brilliant lighting effects. LIQMAX III RGB supports RGB synchronization with motherboards that have 4-pin RGB connectors (+12V/G/R/B). Thanks to ENERMAX s patented Dual-Chamber Design, Central Coolant Inlet (CCI) and Shunt-Channel Technology (SCT) the cooler achieves faster heat transfer and an extended life time. The RGB fans with dual-convex blades are optimized for radiators and generate high static pressure to drive heat out of the cooling fins. The LIQMAX III RGB is an excellent cooler for gaming cases that do not want to miss RGB lighting.DesignThe LIQMAX III RGB is a All-in-One CPU liquid cooler with pre-filled coolant. This makes a water cooler as simple as a regular air cooler. Easy installation and no maintenance. The fully sealed design ensures lowest evaporation of liquid and a long product lifetime.Dual-Chamber Water BlockThe patented Dual-Chamber Design isolates the pump from the heated coolant, extending the life of the cooler. The cold coolant enters the first chamber with the pump inside and is then forced through the cold plate absorbing heat. The heated coolant is collected in the second chamber and then transported to the radiator for cooling.Central Coolant Inlet (CCI) DesignThe central coolant inlet (CCI) injects coolant at the hottest point of the CPU increasing the cooling performance. The cold plates Shunt-Channel Technology (SCT) shortens the coolant flow path and results in faster heat transfer.Aurabelt Water BlockThe Aurabelt water block of LIQMAX III RGB is equipped with RGB LEDs designed for synchronization with RGB motherboards from ASRock, ASUS, Gigabyte and MSI. LIQMAX III RGB offers programmable lighting effects via motherboards software. For stand-alone operation, the lighting of the water block is kept white.TubesThe high-quality tubes are made of polyamide rubber with multiple layers ensuring zero permeability and long-lasting operation. The tubes offer an easy system installation thanks to a length of 400mm. For maximum safety the connection to the fittings are sealed with extra strong glue.RadiatorThe radiator offers a large cooling surface with high heat exchange capacity thanks to the fine channels and thin aluminium fins. LIQMAX III RGB is available with a compact 120mm radiator with 260W TDP cooling capacity and a 240mm radiator with 330W TDP cooling capacity.Dual-Convex Blade RGB FanThe Dual-convex fan blade are a result of precision engineering calculating the shape and angles. The fan creates down force air pressure and a high-volume air flow. The frame is equipped with rubber pads to reduce the vibration and noise. RGB LEDs in the fan hub provide bright illumination.CompatibilityQuick & user-friendly universal mounting system supporting Intel and AMD sockets (excluding TR4/SP3 socket). The pressure adjustment spring system and high conductive Dow-Corning thermal grease ensures a perfect contact with the CPUs heat spreader. LIQMAX III RGB is compatible with 120mm fan mountings. Please ensure your case offers enough space to install the radiator.

Performance
Suitable location:	Processor
Type:	All-in-one liquid cooler
Supported processor sockets:	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
Minimum airflow (imperial):	22.5 cfm
Maximum airflow:	72.1 cfm
Minimum air pressure:	0.2 mmH2O
Maximum air pressure:	1.98 mmH2O
Fan noise level (min):	17 dB
Fan noise level (max):	27 dB
Pump bearing technology:	Ceramic bearing
Pump connector:	3-pin
Pump motor speed (max):	3100 RPM
Fan speed (min):	500 RPM
Fan speed (max):	1600 RPM
Mean time between failures (MTBF):	50000 h
Design
Product colour:	Black
Radiator material:	Aluminium
Base plate material:	Copper
Number of fans:	2 fan(s)
Illumination LED:
Illumination colour:	Blue, Green, Red
Fan connector:	4-pin
Power
Thermal Design Power (TDP):	330 W
Pump voltage:	12 V
Pump current:	490 mA
Fan voltage:	12 V
Fan current:	0.36 A
Weight & dimensions
Width:	274 mm
Radiator width:	27.4 cm
Radiator depth:	2.7 cm
Radiator height:	12 cm
Depth:	53 mm
Tube length:	40 cm
Height:	120 mm
Weight:	795 g
Fan dimensions (W x D x H):	120 x 25 x 120 mm
Package width:	317 mm
Package depth:	137 mm
Package height:	205 mm
Packaging content
Package type:	Box
Mounting kit:
LED controller interface:	4-pin
RGB controller included:
Manual:
Other features
Tube material:	Polyamide (PA)
Thermal grease:
Logistics data
Harmonized System (HS) code:	84733080
Master (outer) case width:	435 mm
Master (outer) case length:	440 mm
Master (outer) case height:	342 mm
Master (outer) case gross weight:	11.7 kg
Products per master (outer) case:	6 pc(s)
