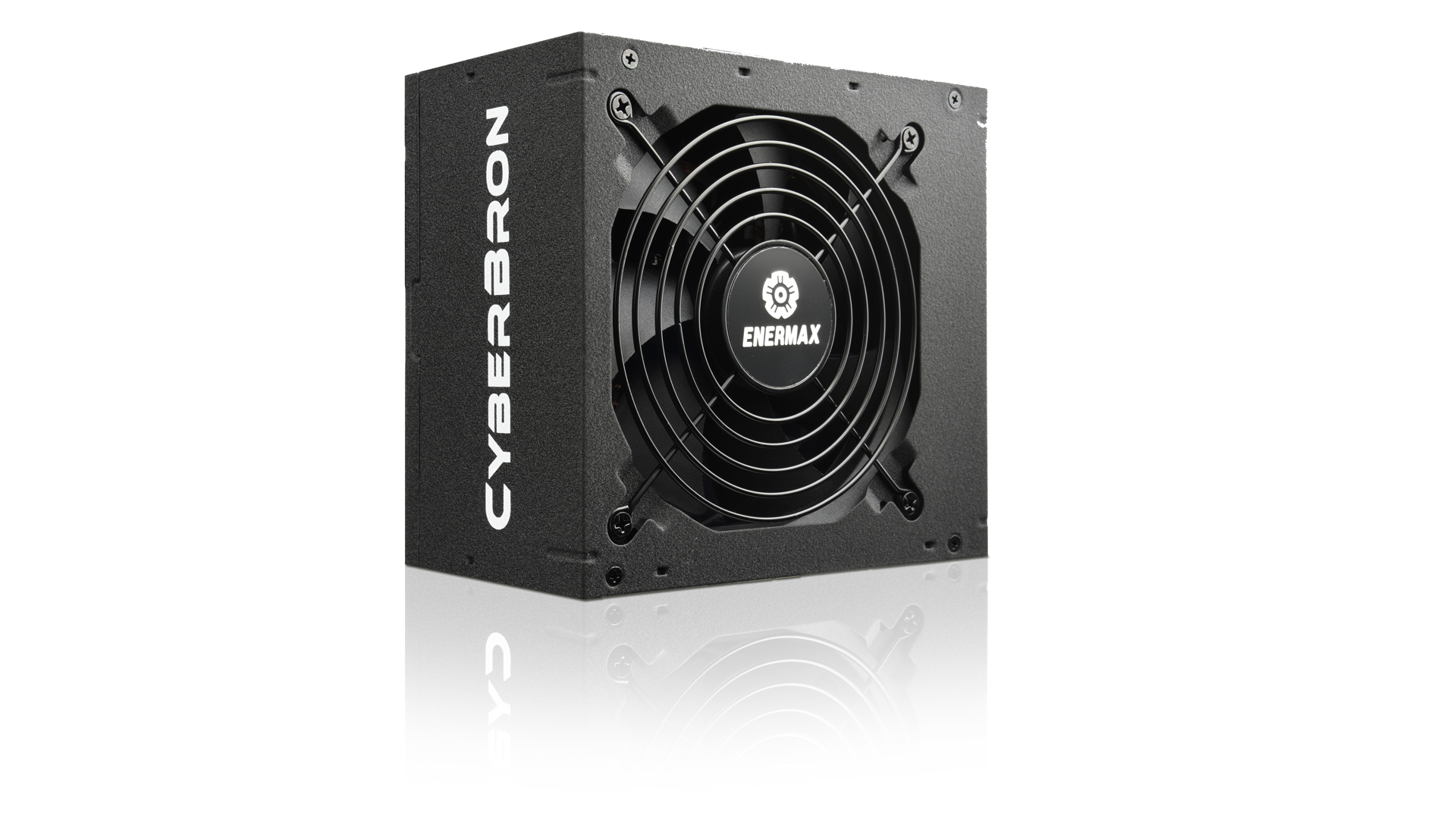

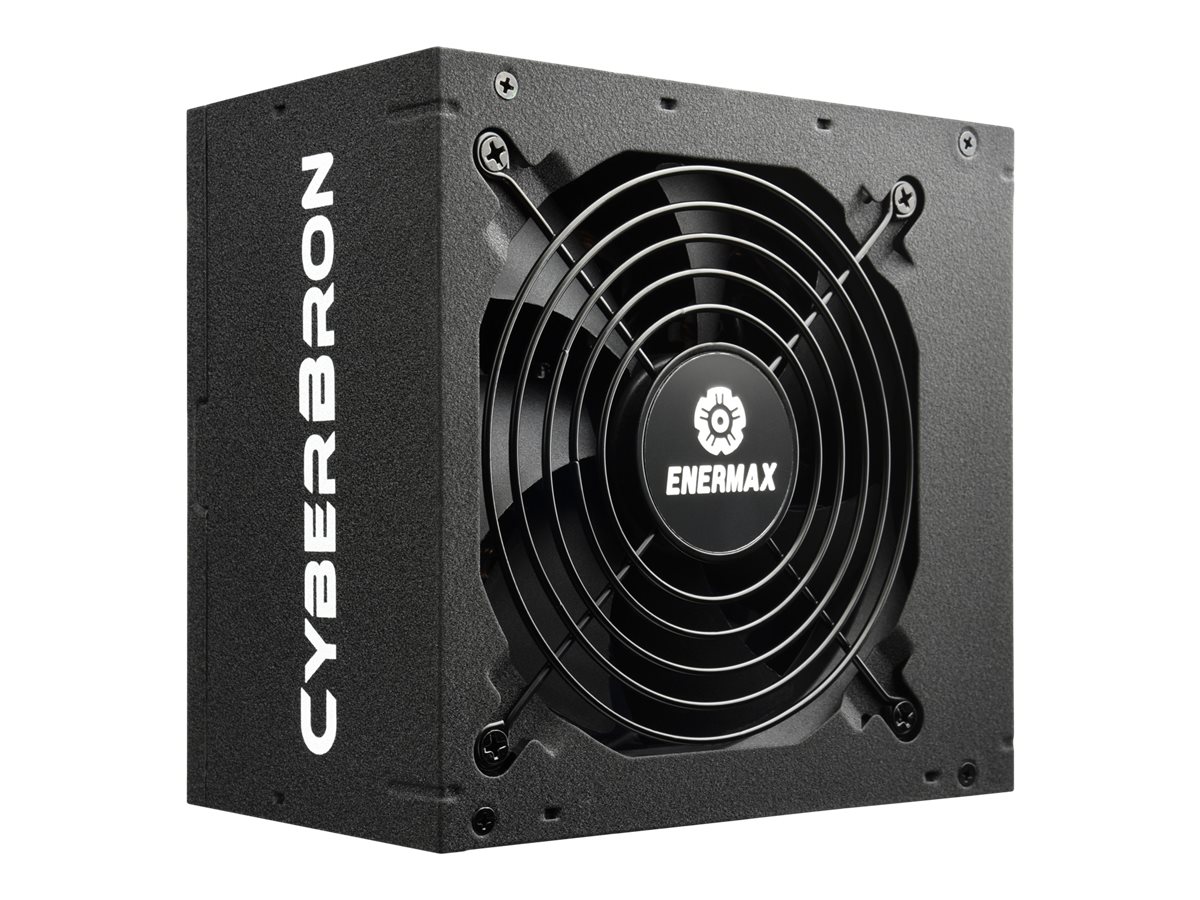

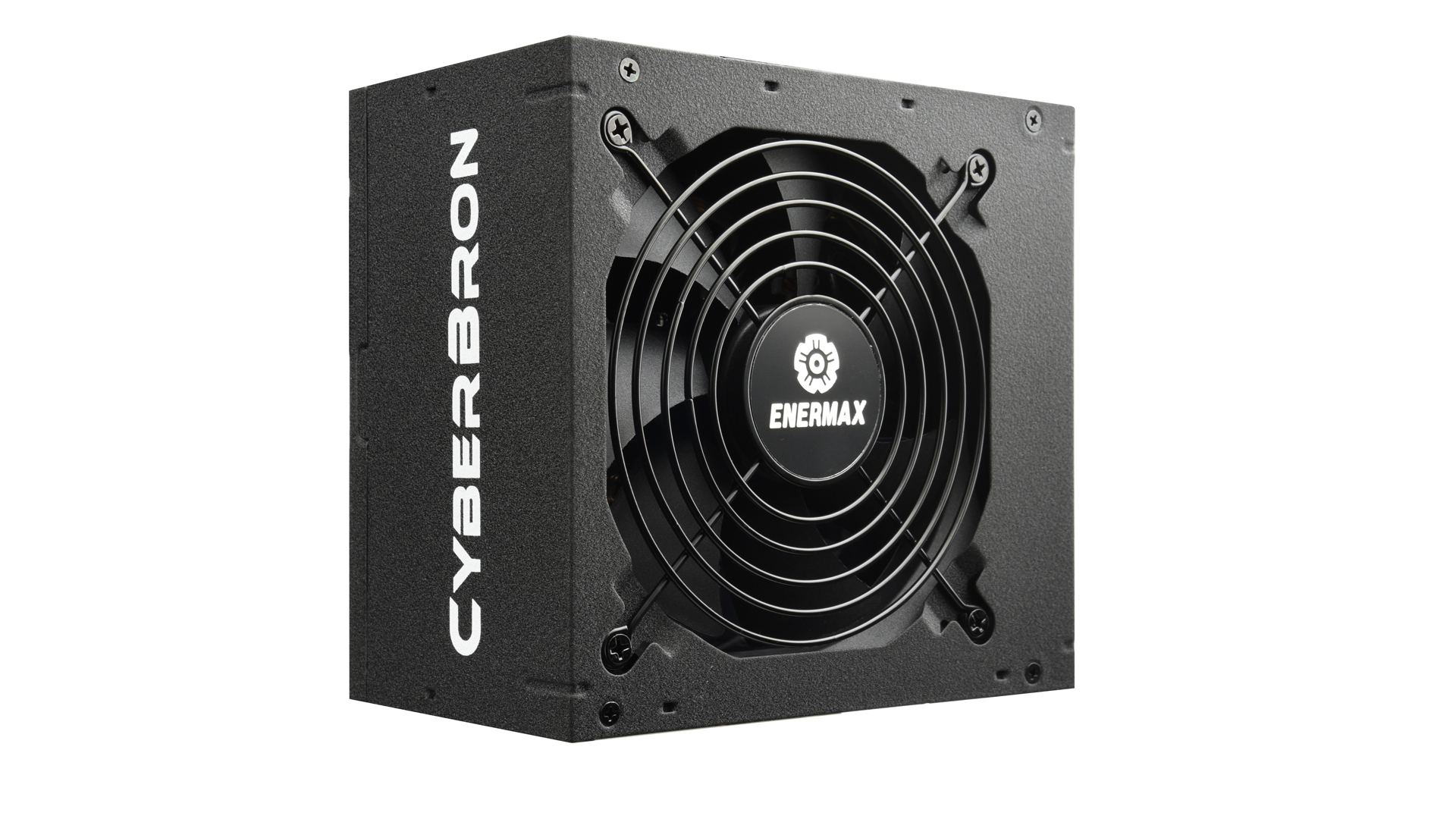

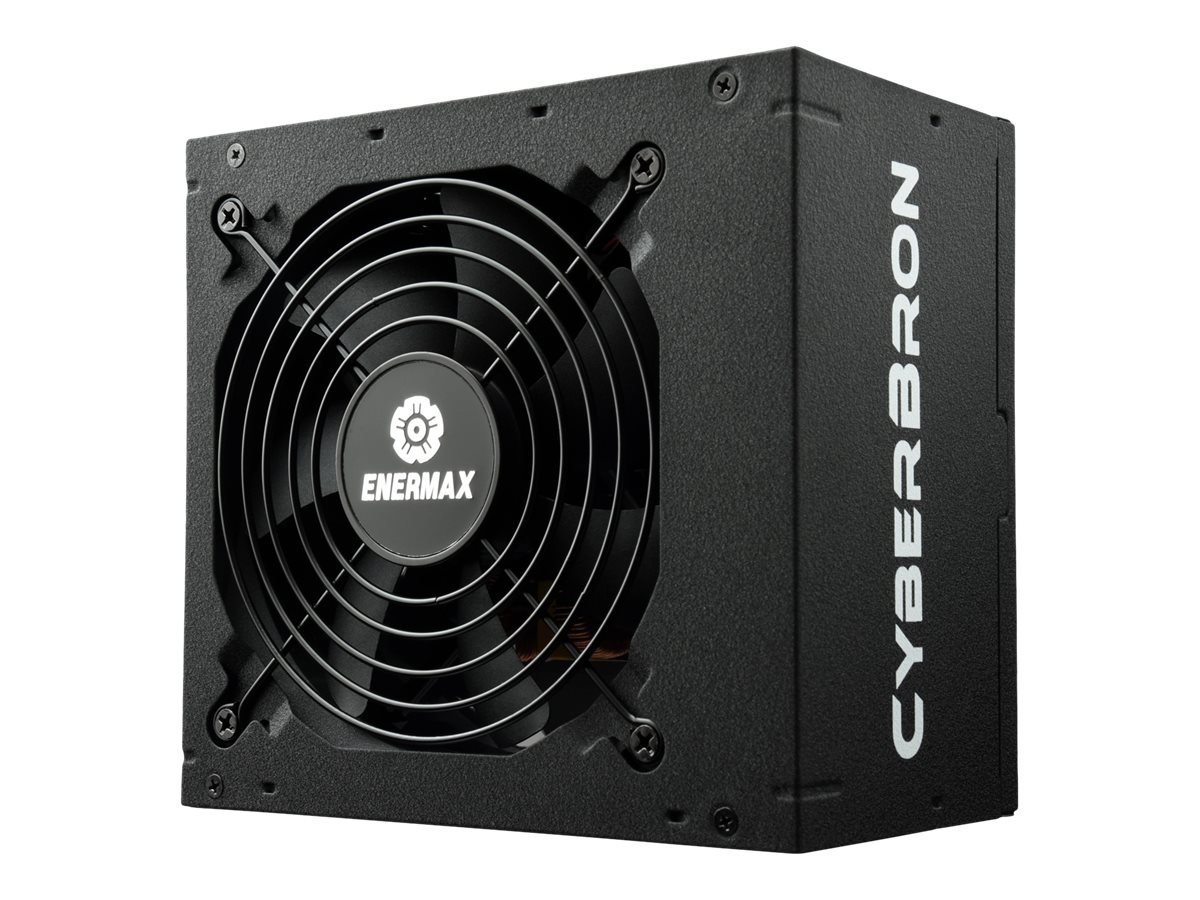

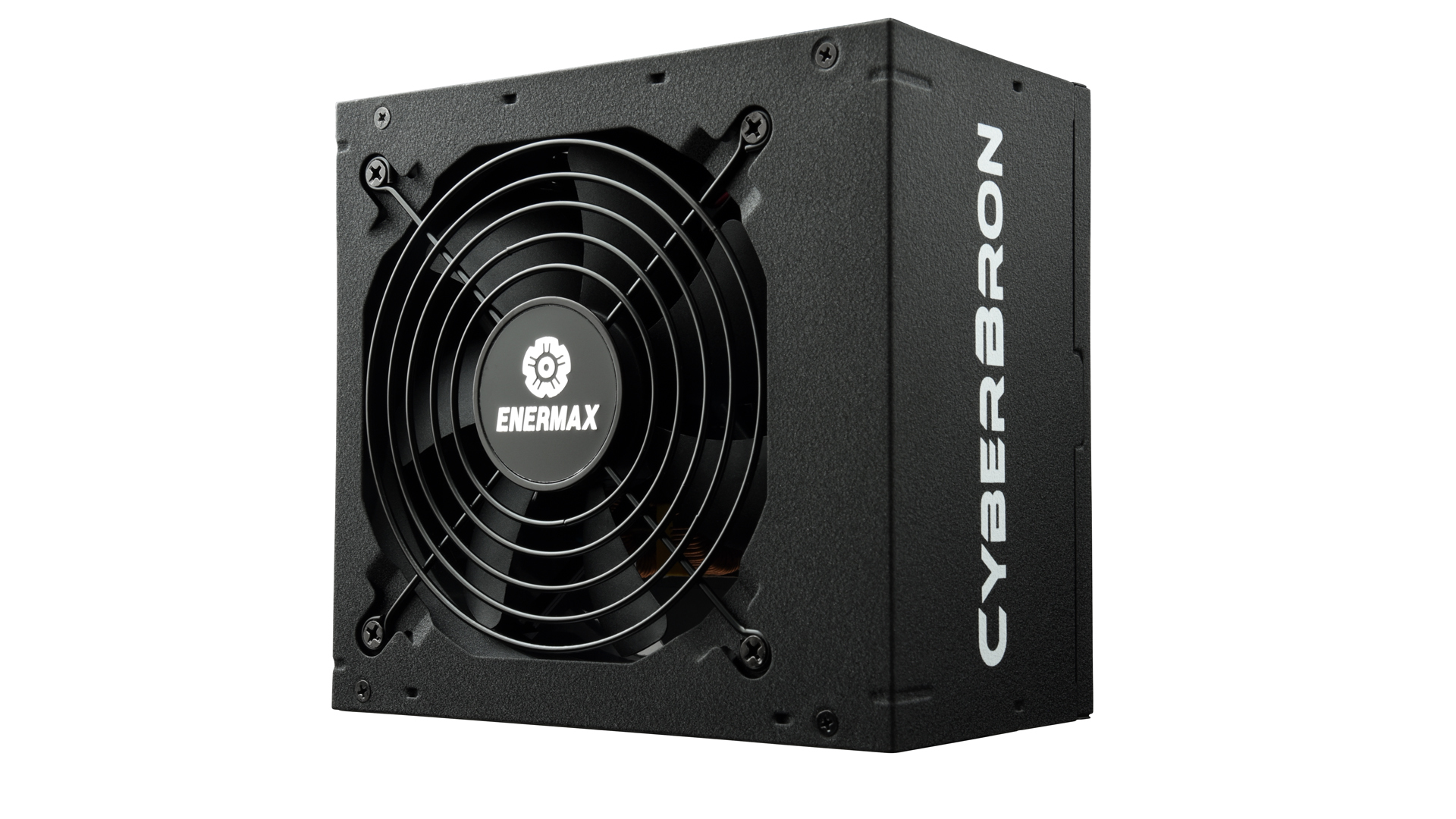

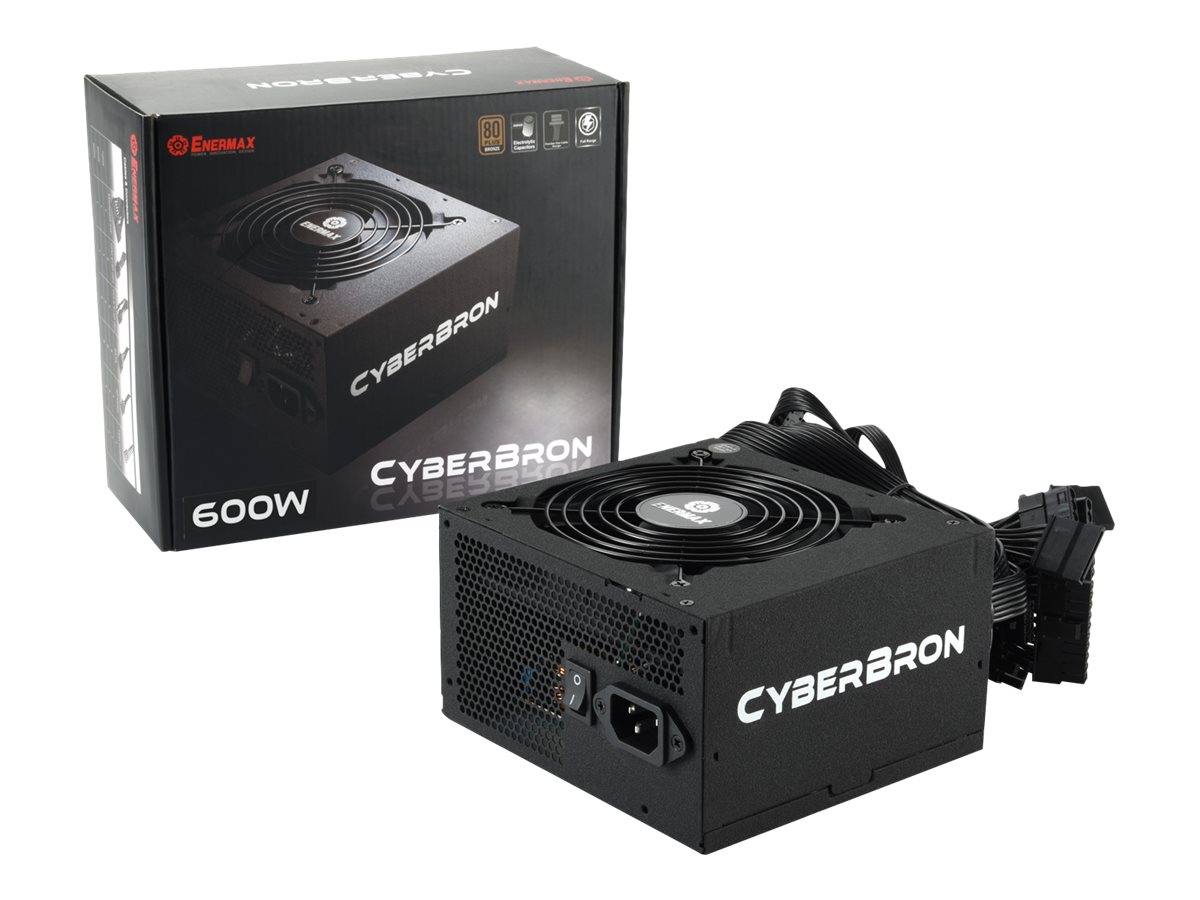

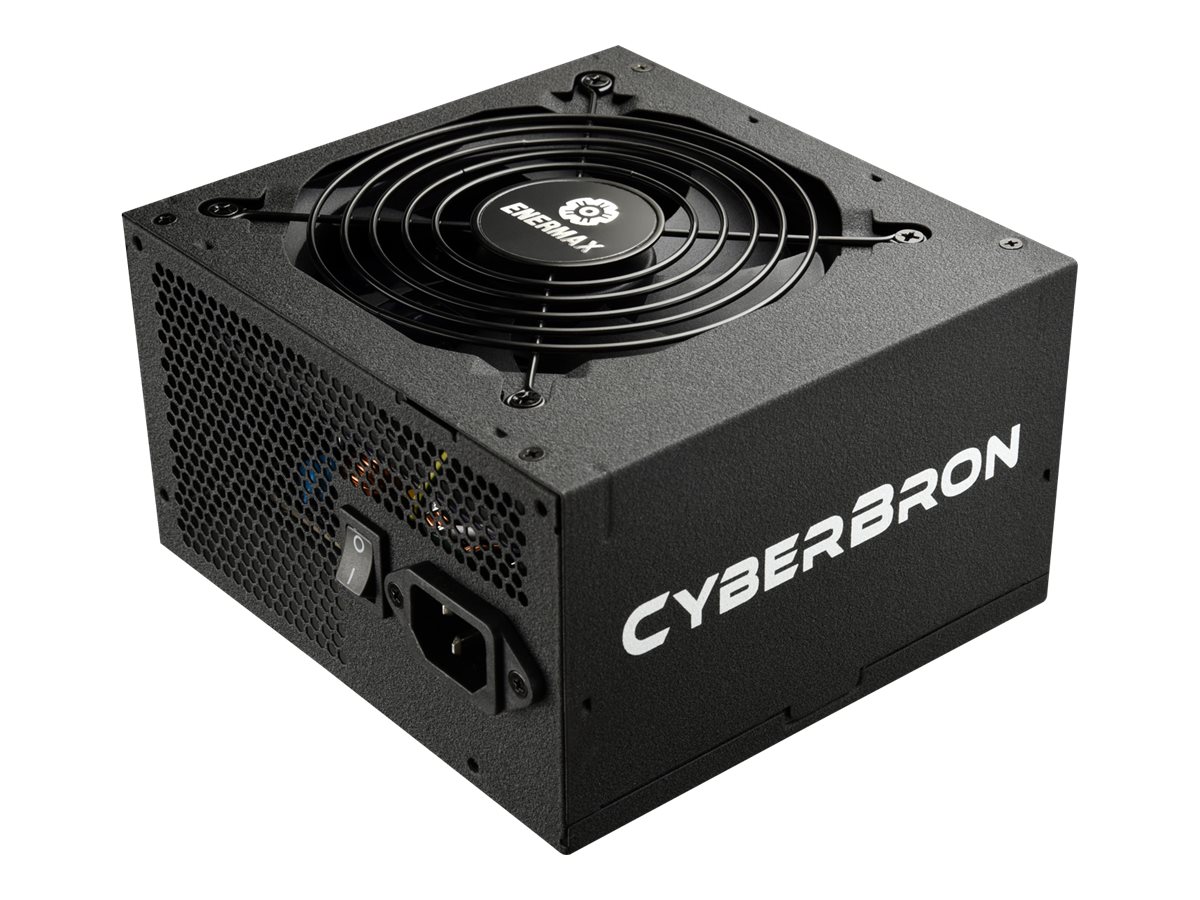

Enermax CyberBron power supply unit 600 W 24-pin ATX ATX Black

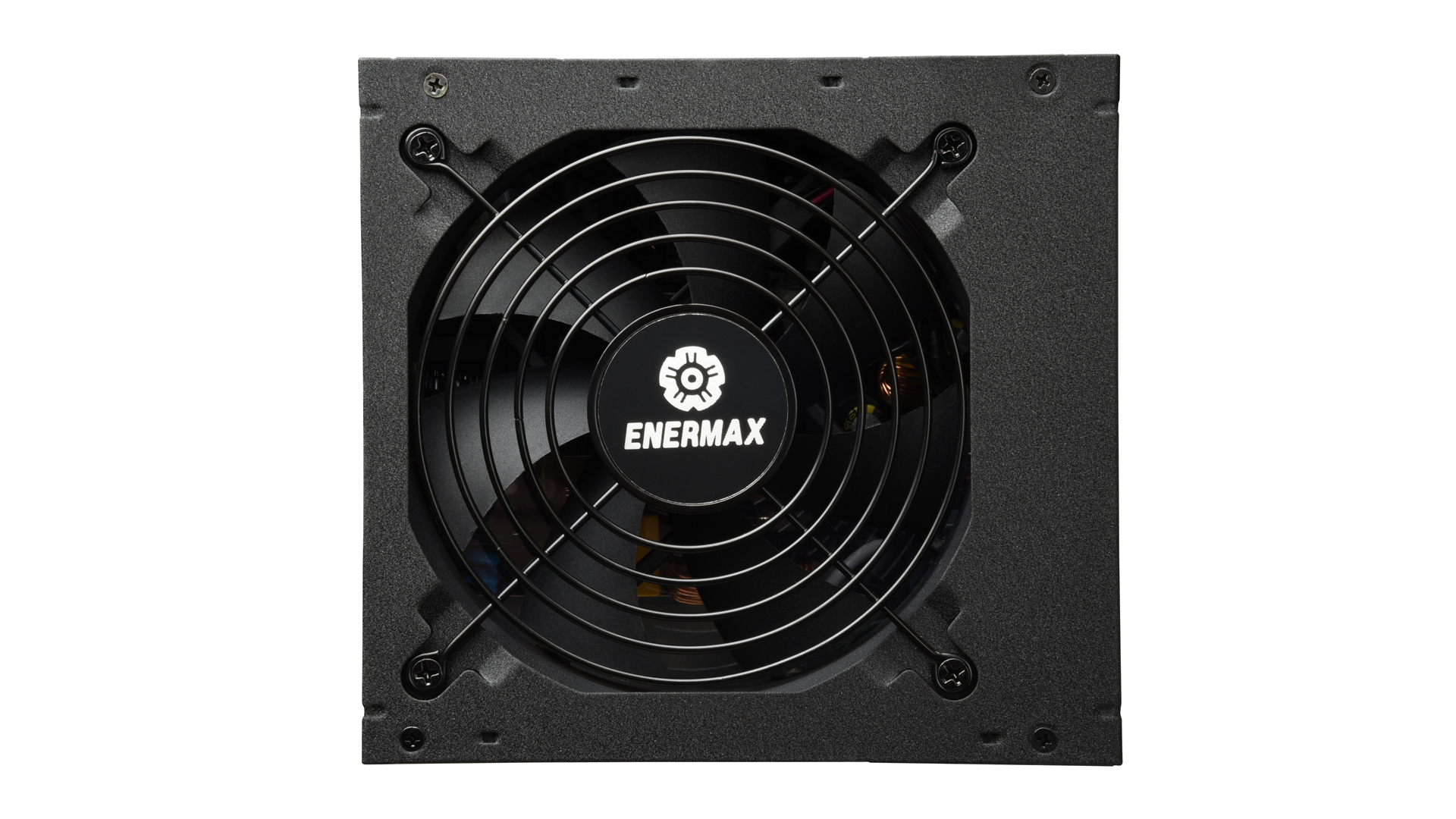

The CYBERBRON is an 80 PLUS Bronze certified power supply with first-class 105°C Japanese electrolytic capacitors for excellent reliability. A strong 12V rail and at least two PCI-E connectors allow the operation of power-hungry graphics cards. Flexible flat cables improve airflow inside the case and provide easy cable management. The 120mm fan with intelligent RPM control enables silent cooling with load-dependent regulation. The CYBERBRON is perfect for building affordable mainstream gaming, multimedia, and office systems.EfficiencyThe 80 PLUS® Bronze-certified power supply achieves up to 88% efficiency at 230VAC with a 50% load. This not only results in low heat generation but also reduces its own CO2 footprint.CYBERBRON helps systems to meet the EU eco-design directive 2010 ErP Lot 6 (< 1W in standby mode*) due to a high-efficient 5V standby (+5Vsb) circuitry. Moreover, it supports EU regulation no. 617/2013 demanding amongst others 85% efficiency at 50% load and 82% at 20% and 100% load.* only in combination with an ErP ready mainboardPowerA stable 12V rail to deliver power to high-performance processors and graphics cards without having to distribute the load over several rails.CoolingThe integrated 12 cm fan with intelligent RPM control can measure the load of the power supply and adjusts the speed accordingly to always ensures silent operation.Flat CablesThe flat cables are more flexible than conventional sheathed cables and can be routed more easily through narrow spaces. This allows clean cable management behind the case panel and contributes to improved airflow within the case.CompatibilityIntel ATX12V v2.3, compliant with the Intel Power Supply Design Guide for Desktop Platform Form Factors Revision 1.1.Full support of the C6/C7 energy-saving functions of Intel processors, first introduced with the Haswell generation.Worldwide compatibility with automatic 100-240VAC input and up to 0.99 with active Power Factor Correction (PFC).

Power
Total power:	600 W
AC input voltage:	100 - 240 V
AC input frequency:	47 - 63 Hz
Input current:	9 A
Power Factor Correction (PFC) type:	Active
Combined power (+3.3V):	110 W
Combined power (+12V):	552 W
Combined power (+5V):	110 W
Combined power (-12V):	3.6 W
Combined power (+5Vsb):	12.5 W
Max output current (+3.3V):	19 A
Max output current (+12V1):	46 A
Max output current (+5V):	17 A
Max output current (-12V):	0.3 A
Max output current (+5Vsb):	2.5 A
Power protection features:	Over voltage, Overload, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector:	24-pin ATX
Peripheral (Molex) power connectors (4-pin):	4
Number of SATA power connectors:	8
PCI Express power connectors (6+2 pin):	2
CPU power connector (4+4 pin):
ATX Power connector (24-pin):
Floppy drive power connector:	1
Floppy disk drive connector:
PCI Express connector:
Cabling type:	Non-Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Bronze
ATX version:	2.3
Certification:	CE, FCC, EAC, CCC
Design
Product colour:	Black
Cooling type:	Active
Fan diameter:	12 cm
Number of fans:	1 fan(s)
Fan location:	Top

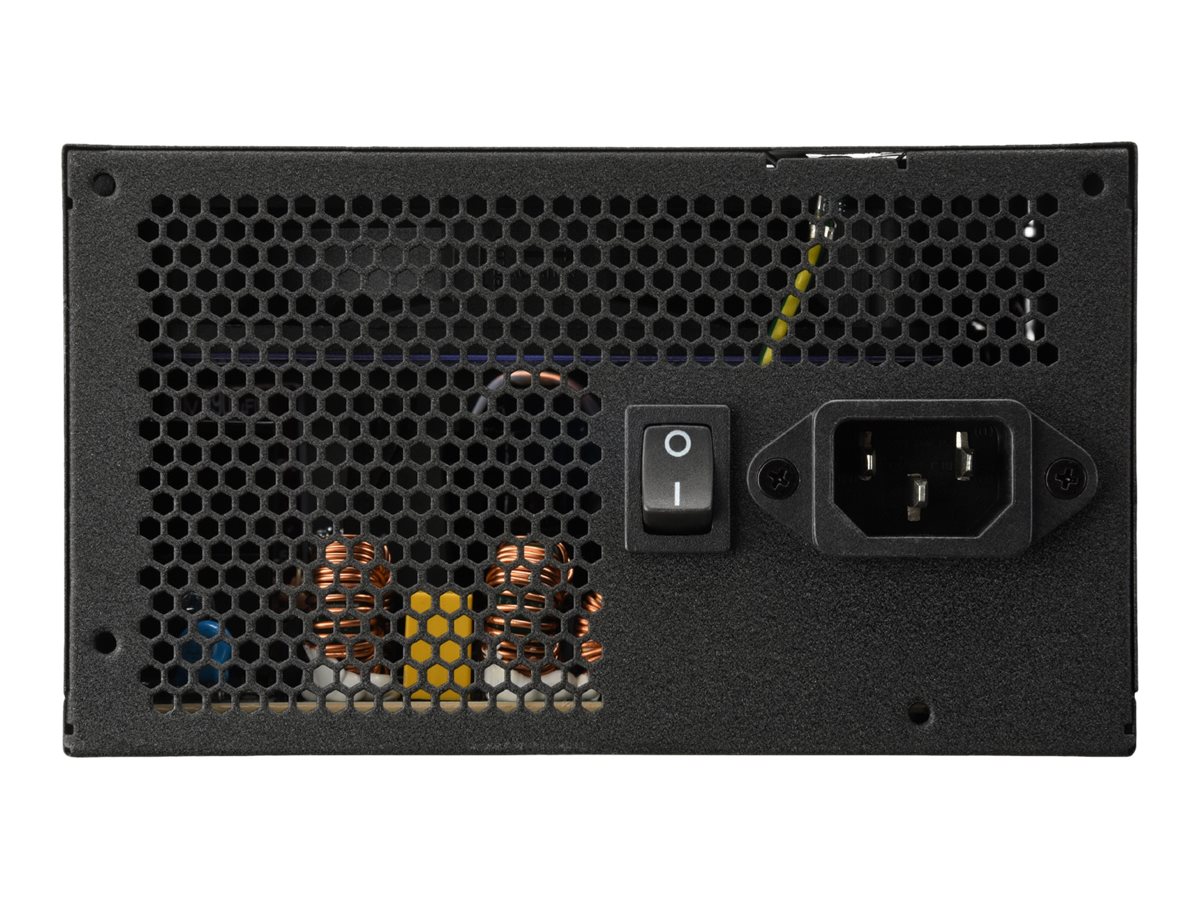

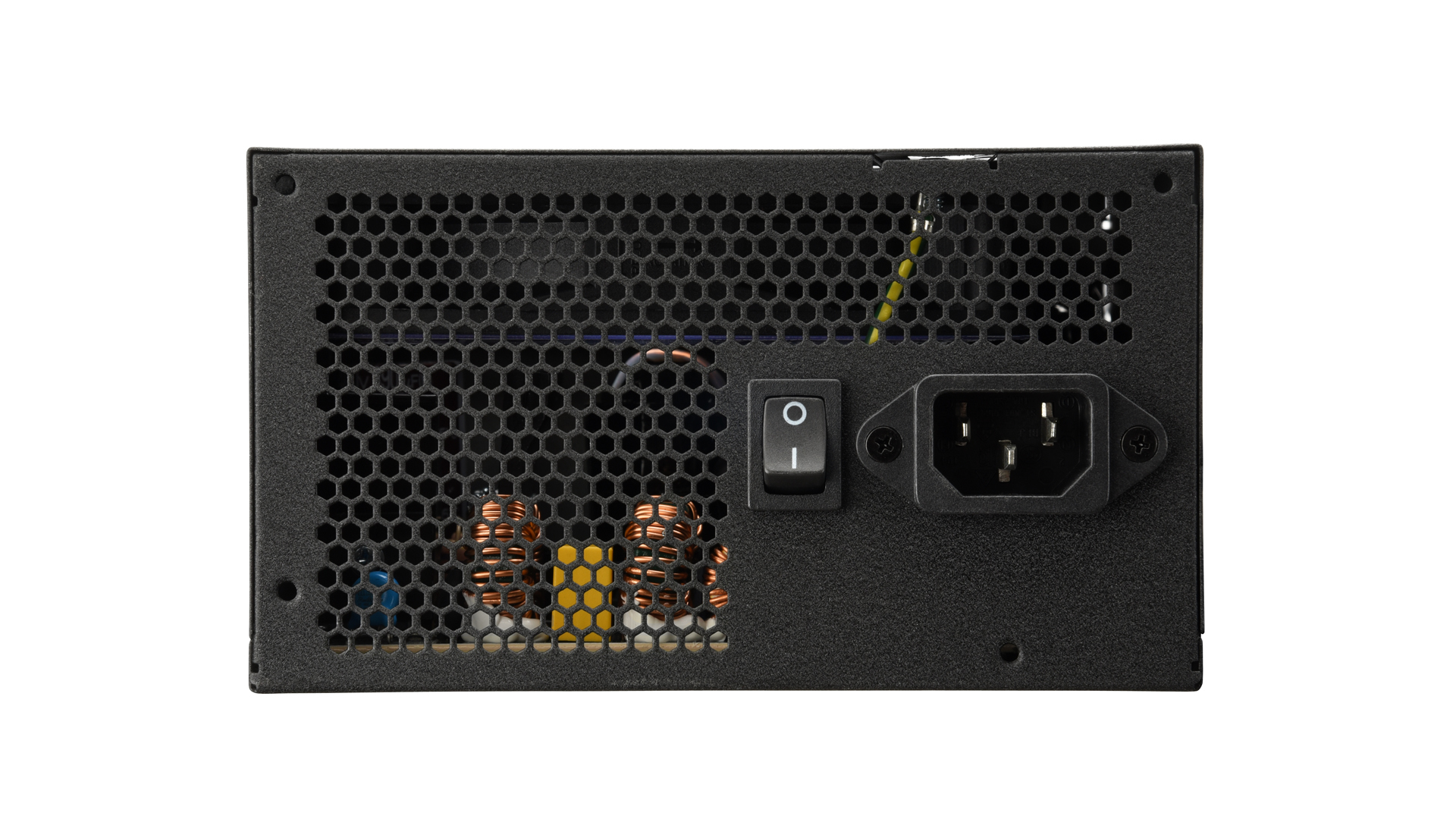

On/off switch:
Weight & dimensions
Width:	150 mm
Depth:	140 mm
Height:	86 mm
Packaging data
Package width:	230 mm
Package depth:	200 mm
Package height:	98 mm
Package weight:	2.1 kg
Package type:	Box
Logistics data
Harmonized System (HS) code:	84733020
