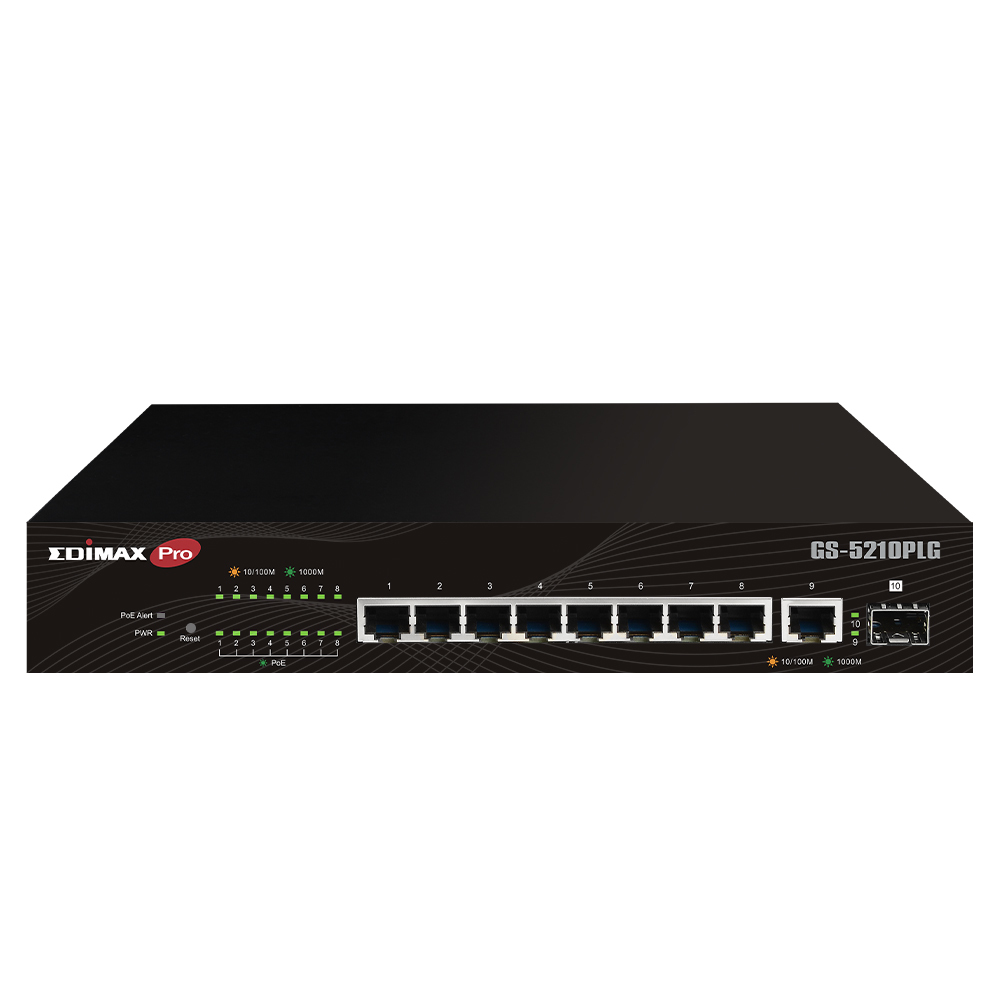

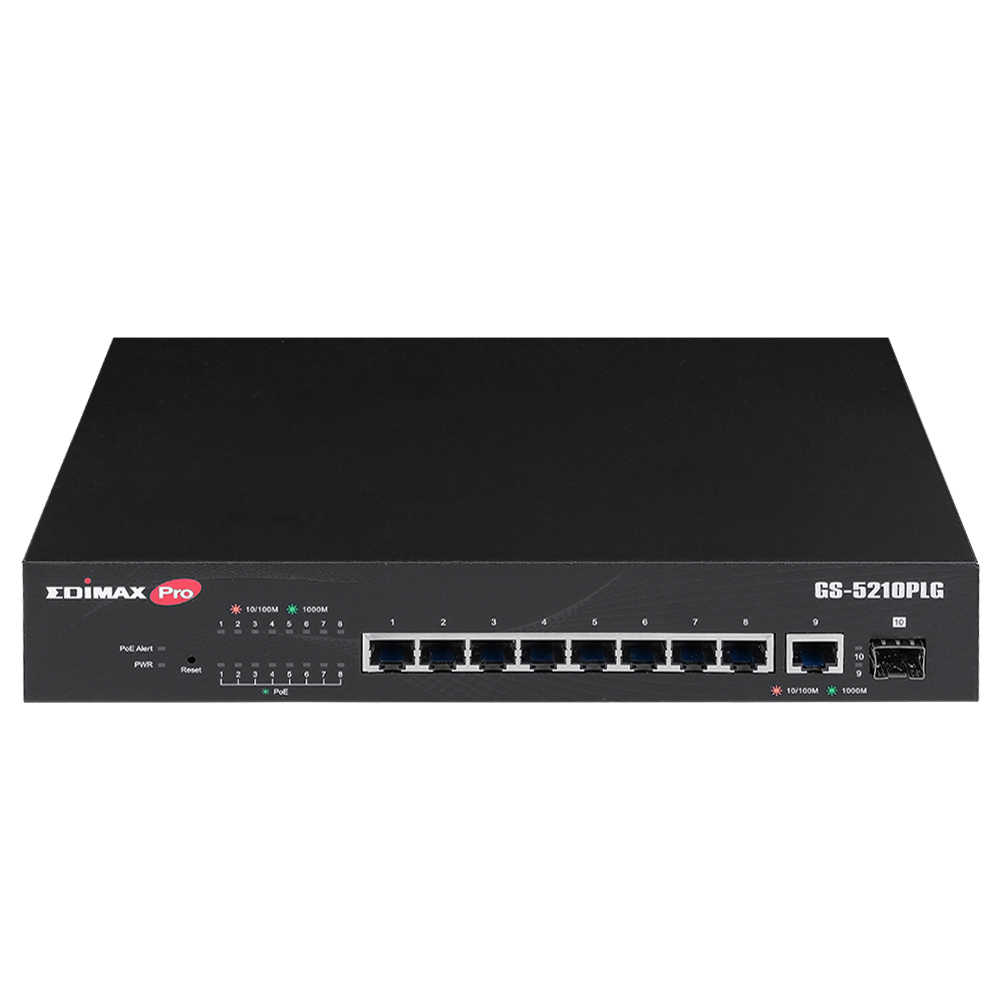

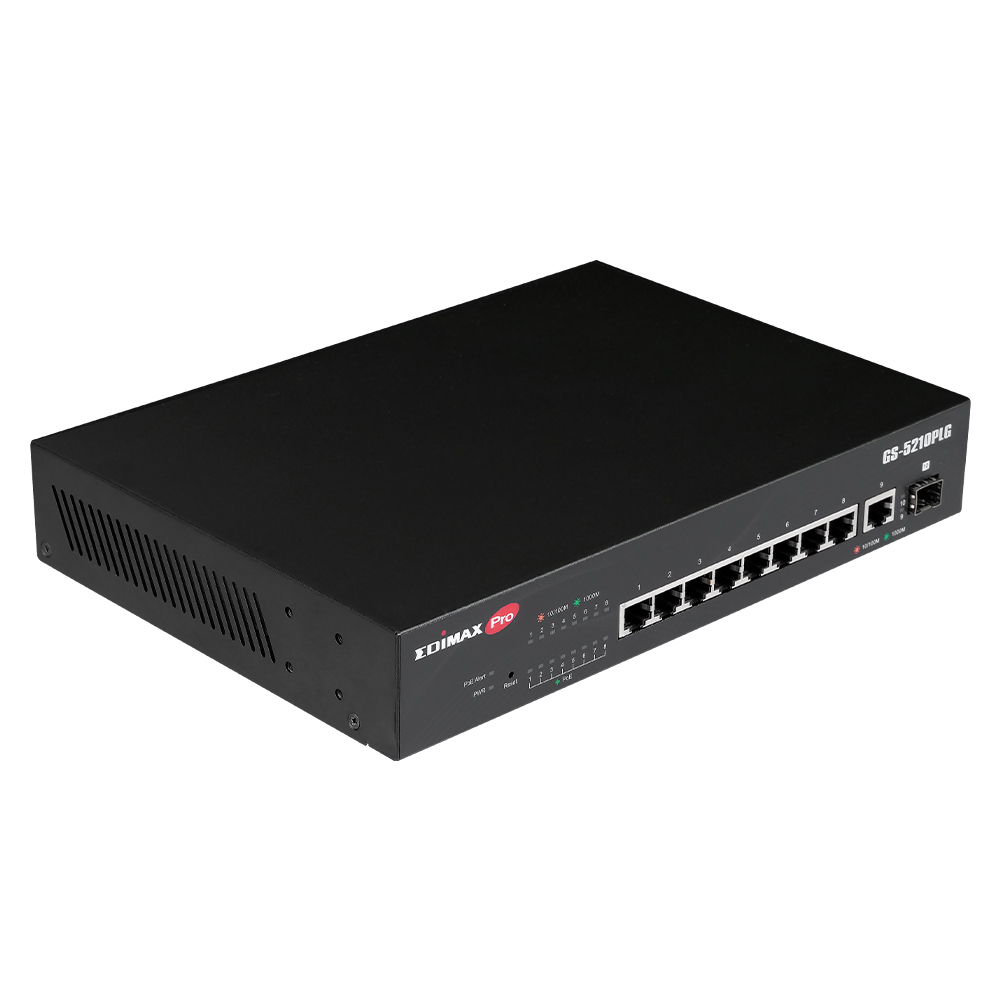

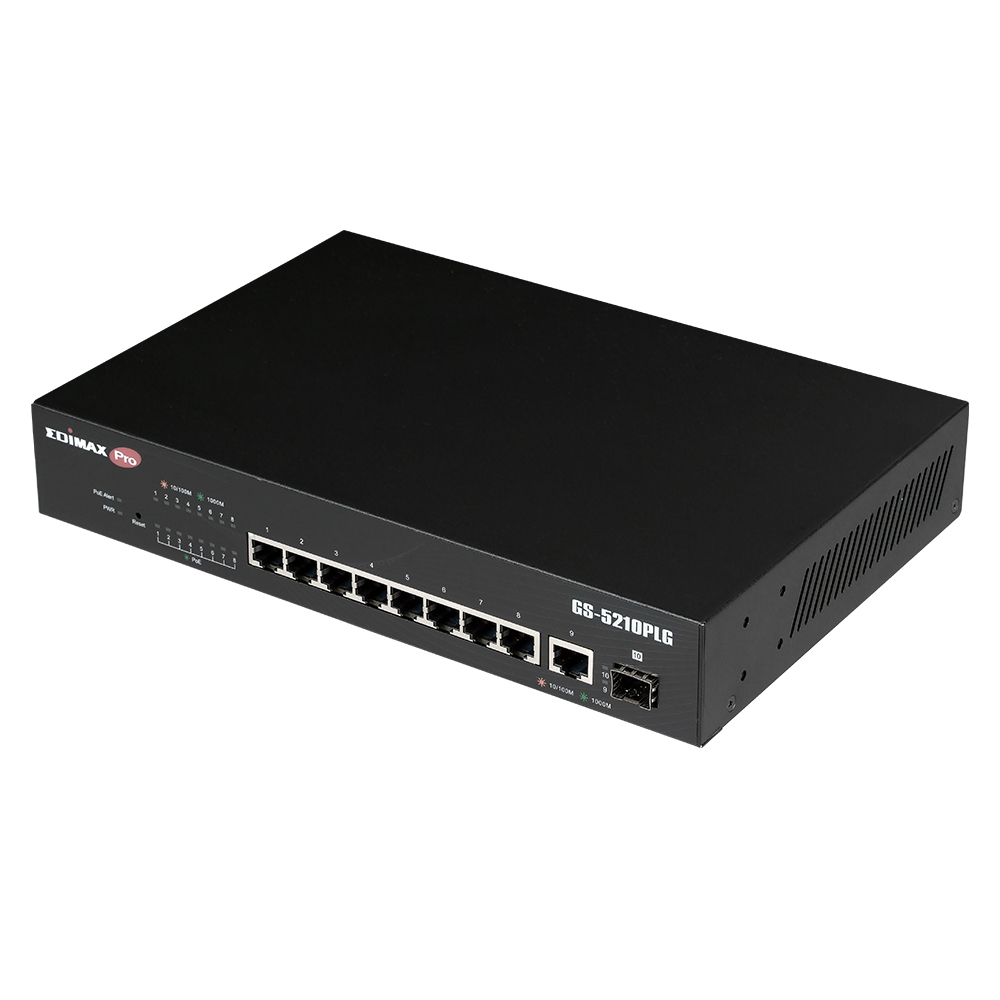

Edimax Switch GS-5210PLG Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Smartly Manage and Expand Your Gigabit Networks10-Port Gigabit Long Range PoE+ Web Smart Switch GS-5210PLGPoE Long Range Guaranteed 200MProvides the PoE long-range solution with guaranteed of 200 meters (656 ft.) , ideal for surveillance applications.PoE Power Backfeed ProtectionEach port is equipped with power backfeed protection to avoid damage done from the connected non-standard PSEs (Power Sourcing Equipments) to the switch.Flexible RJ45 and Fiber UplinksEquiped with 1 RJ45 and 1 SFP fiber-optic uplinking capability, allows the switch to be flexibly deployed in multiple physical locations, such as branches, retail, or remote workgroup environments for larger network connections.Intuitive and Powerful Smart ToolThe intuitive web-based management features include QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, etc.VLAN SupportHelps separate traffic within a business such as isolated resources between network administrations and general users or between employees and public guests users.Link AggregationCombining (aggregating) multiple network connections in parallel to make a single high-bandwidth data path for faster file transfer and enhanced connection reliability.Broadcast Storm ControlThe broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.Loop DetectionThe loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.IGMP SnoopingThe switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.QoS SupportSupports 802.1p QoS provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network.

Management features
Switch type:	Managed
Quality of Service (QoS) support:
Web-based management:
System event log:
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	9
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity:	1
Gigabit Ethernet (copper) ports quantity:	9
Fiber ports quantity:	1
Fiber optic connector:	SFP
Power connector:	AC-in jack
Network
Networking standards:	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support:
Copper ethernet cabling technology:	10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring:
Full duplex:
Flow control support:
Broadcast storm control:
Ethernet LAN data rates:	10,100,1000 Mbit/s
Optical fiber
Fiber ethernet cabling technology:	1000Base-X
Switching optical modules type:	Gigabit Ethernet
Data transmission
MAC address table:	4000 entries
Switching capacity:	20 Gbit/s
Forwarding rate:	14.88 Mpps
Jumbo frames support:
Jumbo frames:	9.2
Packet forwarding rate (1 Gbps):	1488000 pps
Packet forwarding rate (100 Mbps):	148800 pps
Packet forwarding rate (10 Mbps):	14880 pps
Packet buffer memory:	1.5 MB
Security
IGMP snooping:
Multicast features
Multicast support:
Number of multicast groups filtered:	128
Design
Rack mounting:
Stackable:
Product colour:	Black
Housing material:	Metal
Reset button:
LED indicators:	Activity, Link, PoE, Power, Status
Certification:	FCC, CE, BSMI
Power
Power source:	AC
Power supply included:
AC input voltage:	100 - 240 V
AC input frequency:	50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Power over Ethernet (PoE) ports quantity:	8
Power over Ethernet (PoE) power per port:	30 W
Total Power over Ethernet (PoE) budget:	100 W
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	10 - 90%
Weight & dimensions
Width:	265 mm
Depth:	184 mm
Height:	44 mm
Weight:	1.62 kg
Packaging data
Rack mount kit:
