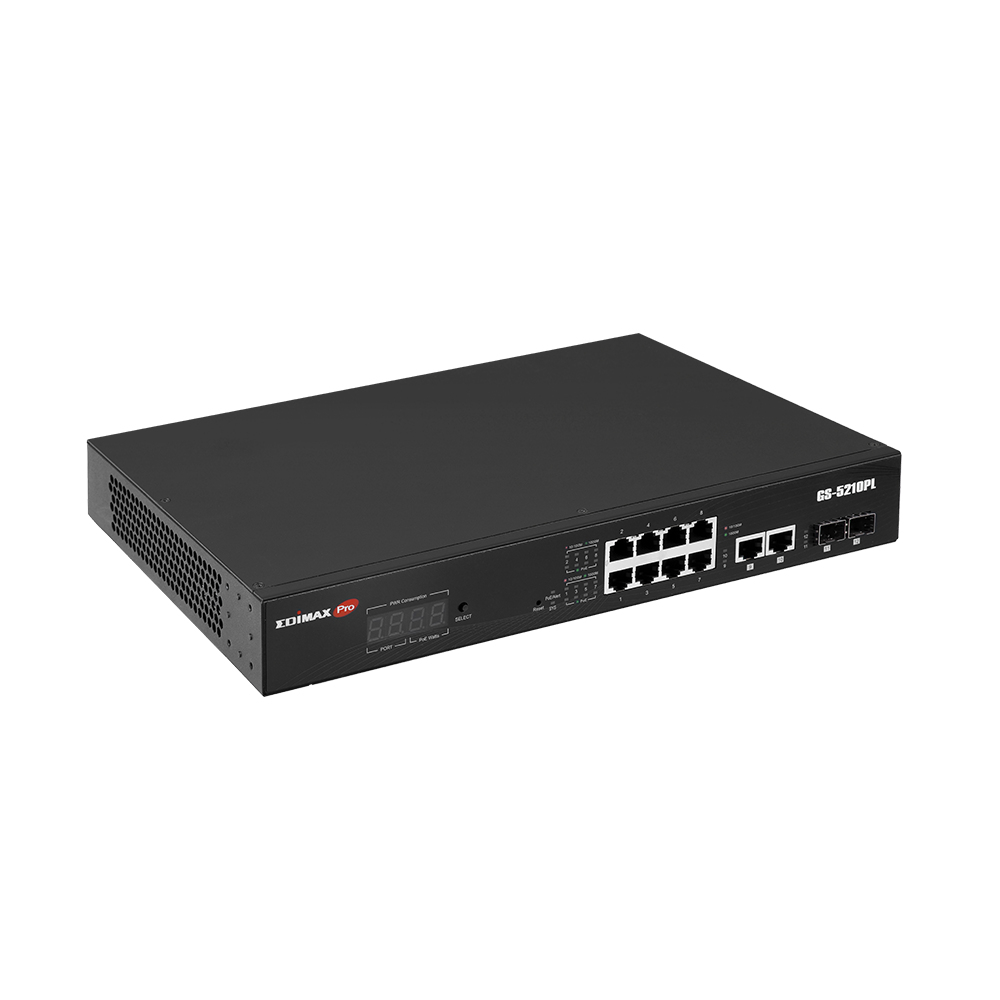

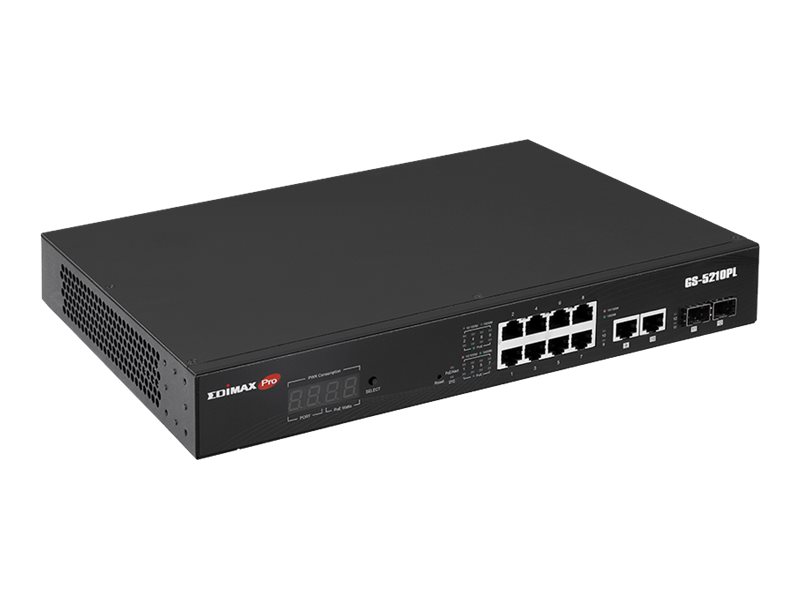

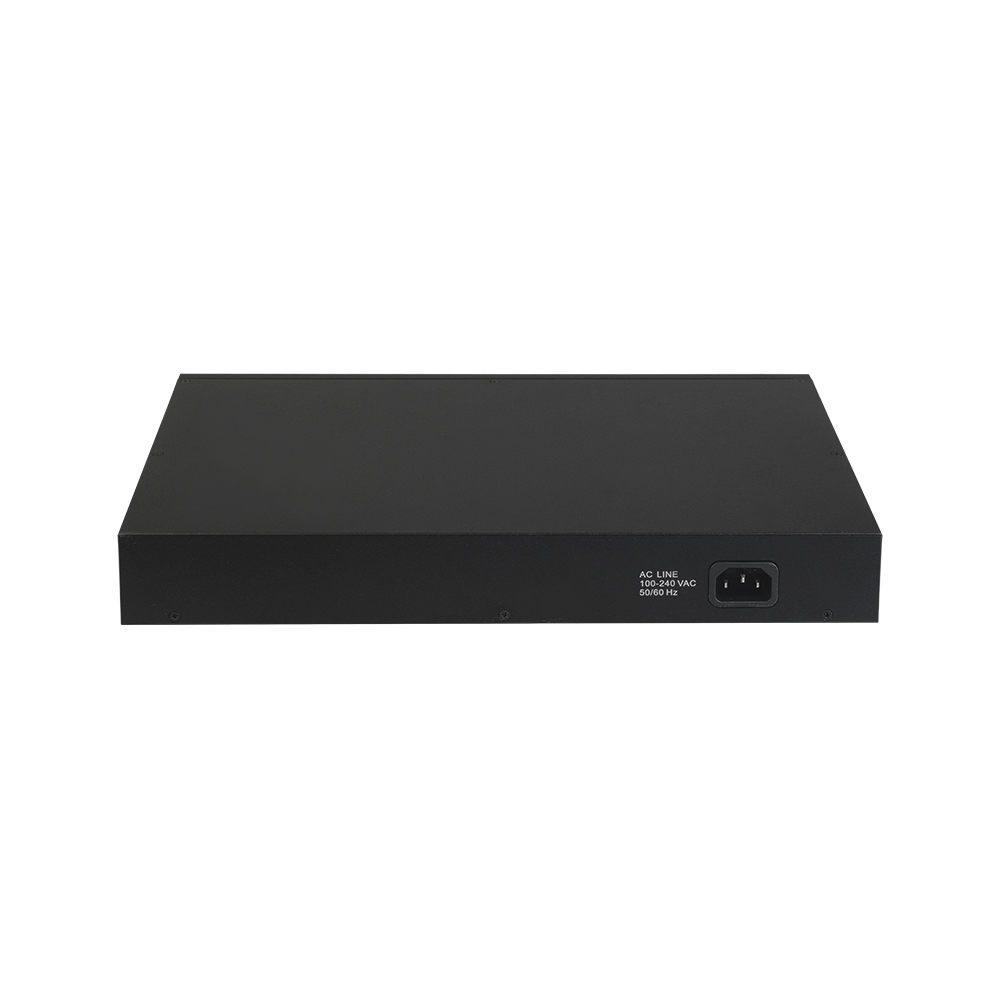

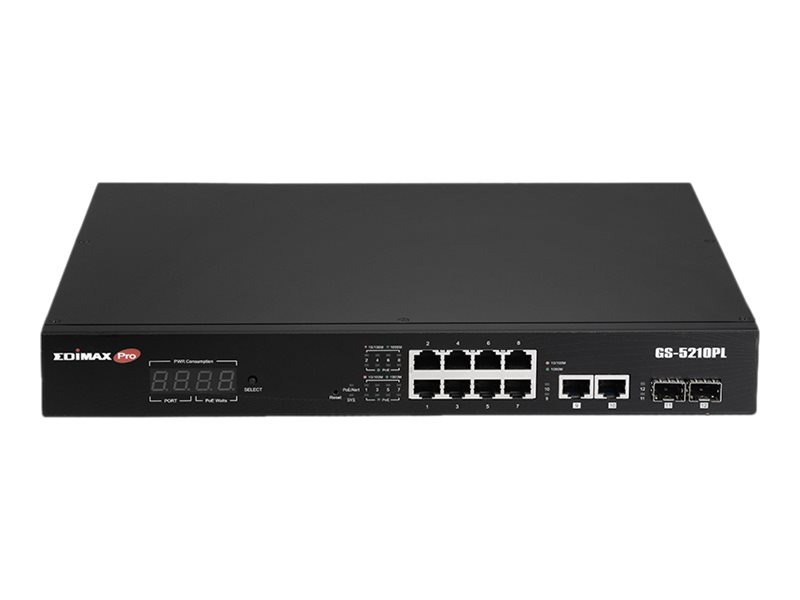

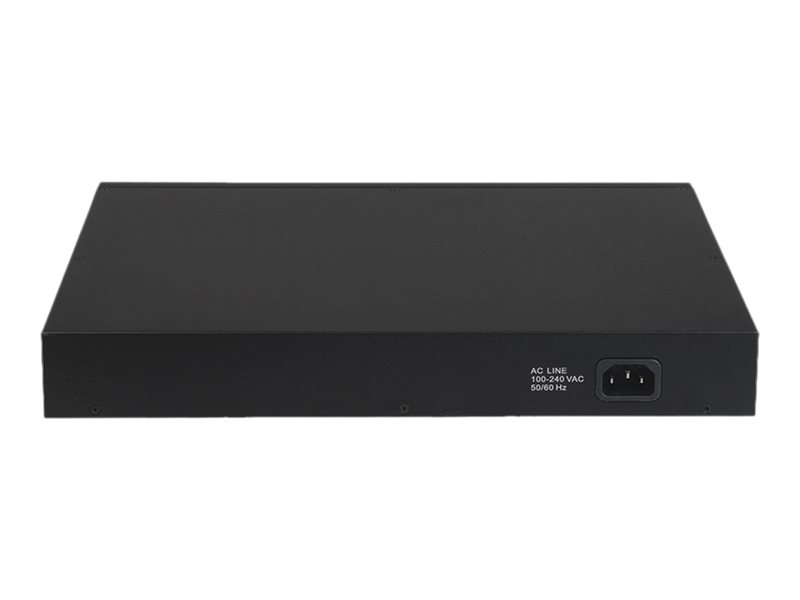

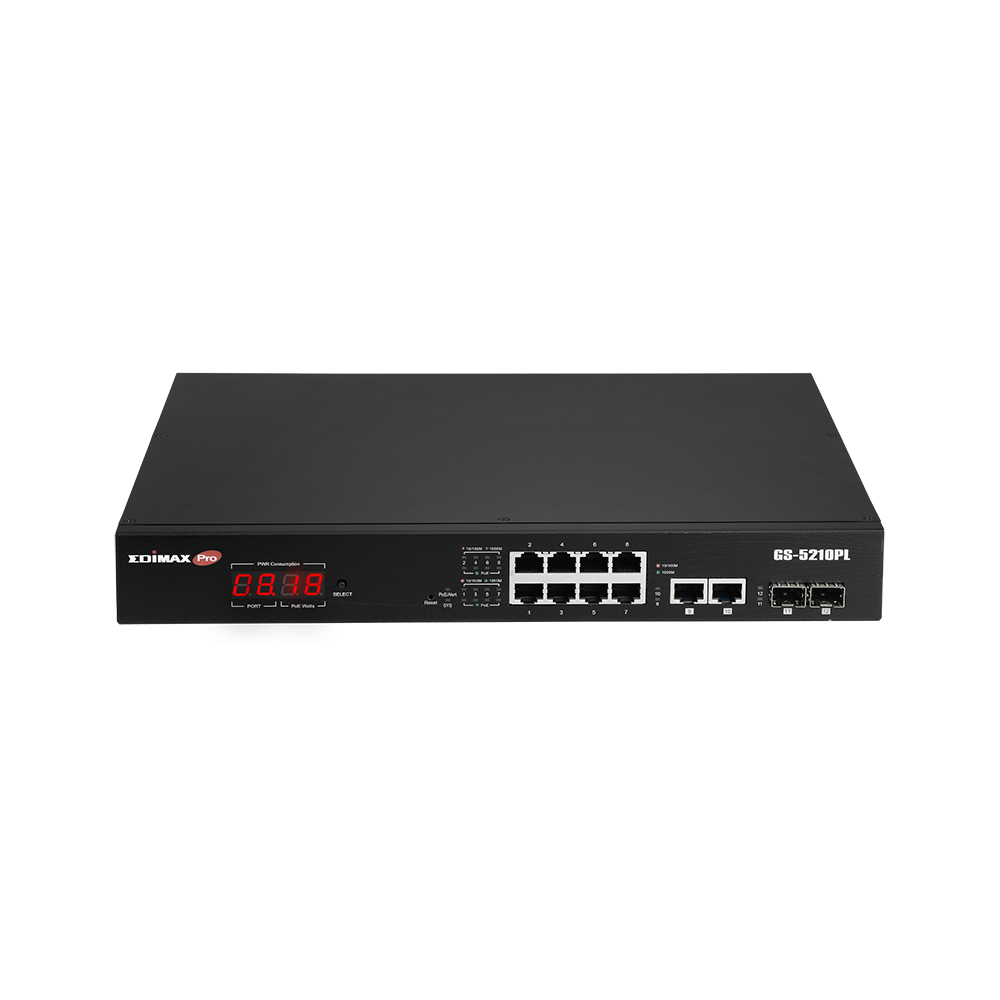

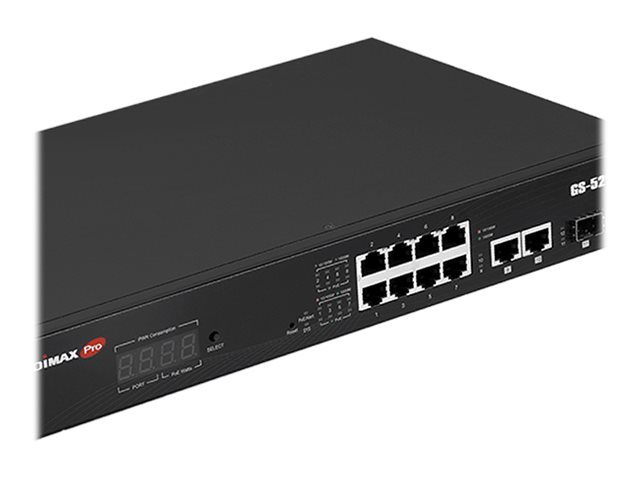

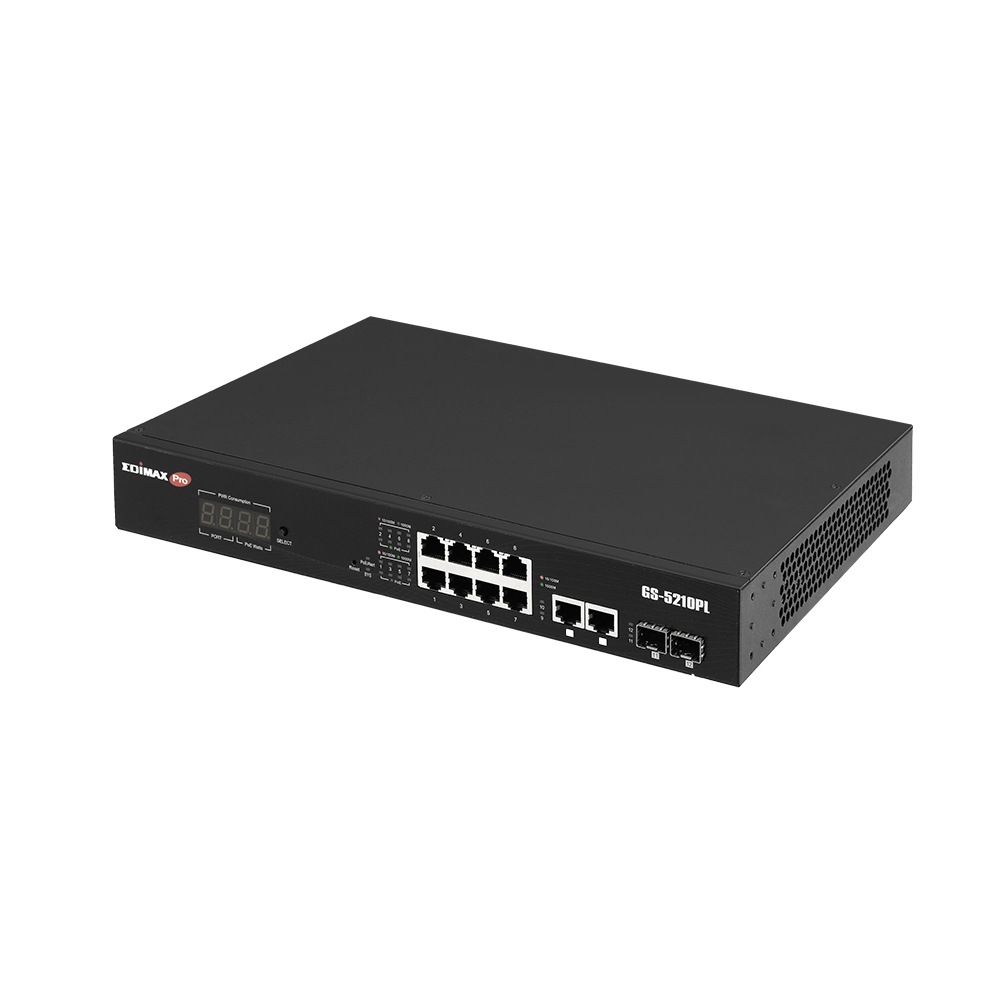

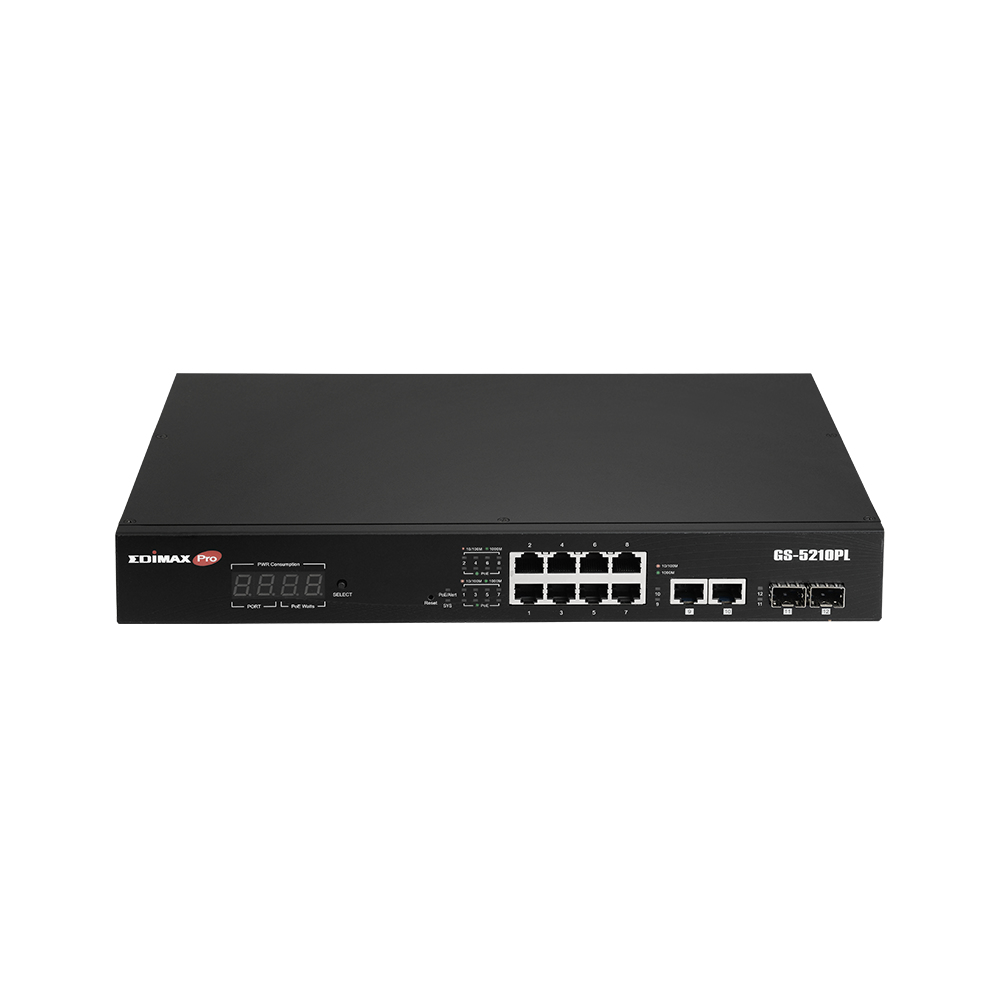

Edimax GS-5210PL network switch Managed Gigabit Ethernet (10/100/1000) Black

ONVIF Compliant | For Quick Install of Security DevicesWith ONVIF standards, the GS-5210PL provides system integrators easy setup, quick discovery, configuration, and control of ONVIF conformant products on the network. Just plug and play.Beyond Security | All Fit Together The EDIMAX ONVIF switches series greatly enhances IP surveillance network systems; it supports the ONVIF standard, which is compatible with working ONVIF compliant Profiles G/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication.Let Safety be KnownThe built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.Strong Ability to Proceed DataWith 24Gbps backplane bandwidth and a forwarding rate of 17.8Mpps, the GS-5210PL provides maximum available bandwidth without delay.Robust Failover Mechanisms The GS-5210PL has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.Guaranteed 200 Meters | Going the DistanceWhile general Ethernet switches have a distance restriction of 100 meters, the GS-5210PL long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.4-digit LED Display | Knowing Instant Power DataIn addition to a web-based GUI to keep track of port power, the GS-5210PL features an intuitive 4-digit LED display showing its power consumption. System integrators can check the total power budget, power consumption per port, and available power left. All with a single hardware select button.Safe Power Backfeed ProtectionEach port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.

Management features
Switch type:	Managed
Quality of Service (QoS) support:
Web-based management:
System event log:
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	10
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
SFP module slots quantity:	2
Network
Networking standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Port mirroring:
IPv6 routes:	8
VLAN support:
Virtual LAN features:	Interface-based VLAN, MAC address-based VLAN, Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN
Optical fiber
Switching optical modules type:	Gigabit Ethernet
Data transmission
MAC address table:	8000 entries
Switching capacity:	24 Gbit/s
Jumbo frames support:
Jumbo frames:	9000
Packet forwarding rate (1 Gbps):	1488000 pps
Packet forwarding rate (100 Mbps):	148800 pps
Packet forwarding rate (10 Mbps):	14880 pps
Security
DHCP features:	DHCP snooping
IGMP snooping:
Static port security:
Authentication type:	AAA, RADIUS
Design
Product colour:	Black
LED indicators:	Link, PoE
Certification:	FCC Class A, CE, ONVIF Compliant
Power
AC input voltage:	120 - 240 V
AC input frequency:	50 - 60 Hz
Power consumption (typical):	110 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Operational conditions
Operating temperature (T-T):	0 - 50 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	10 - 90%
Weight & dimensions
Width:	230 mm
Depth:	330 mm
Height:	44 mm
Weight:	2.3 kg
Logistics data
Harmonized System (HS) code:	85176990
