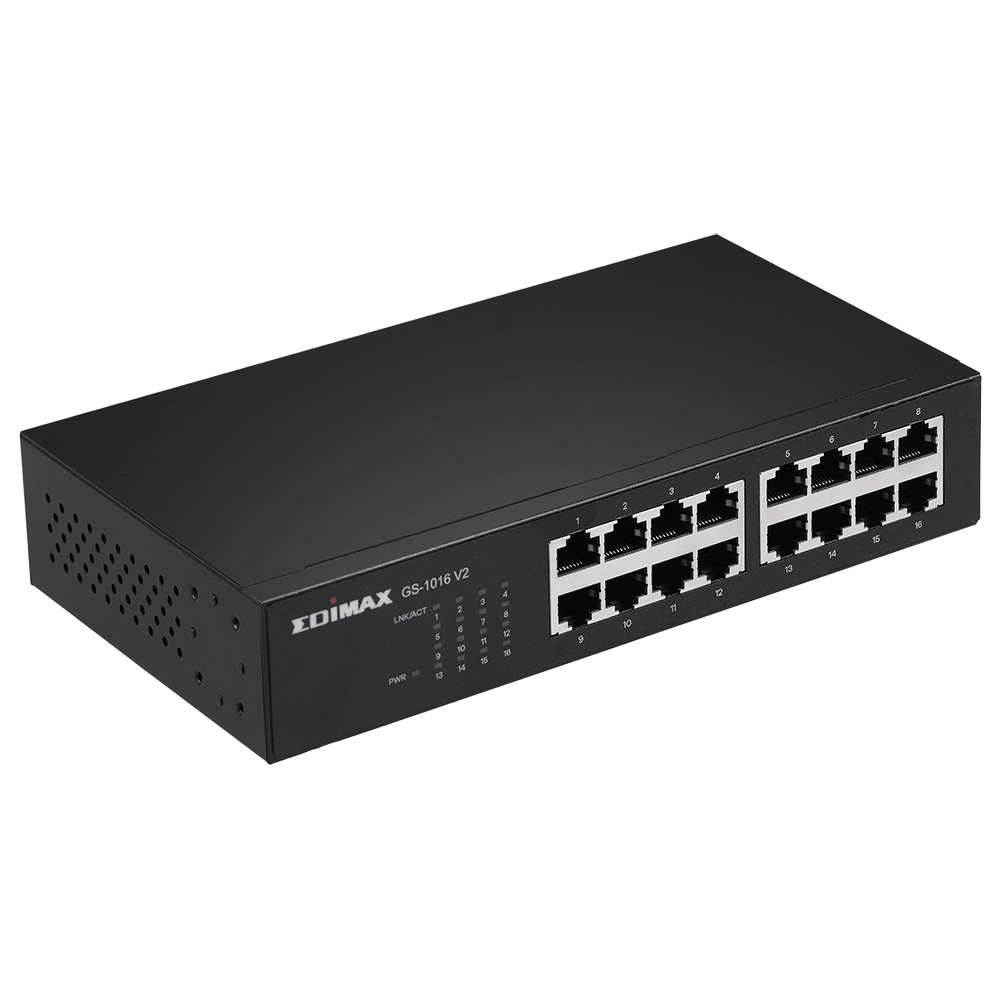

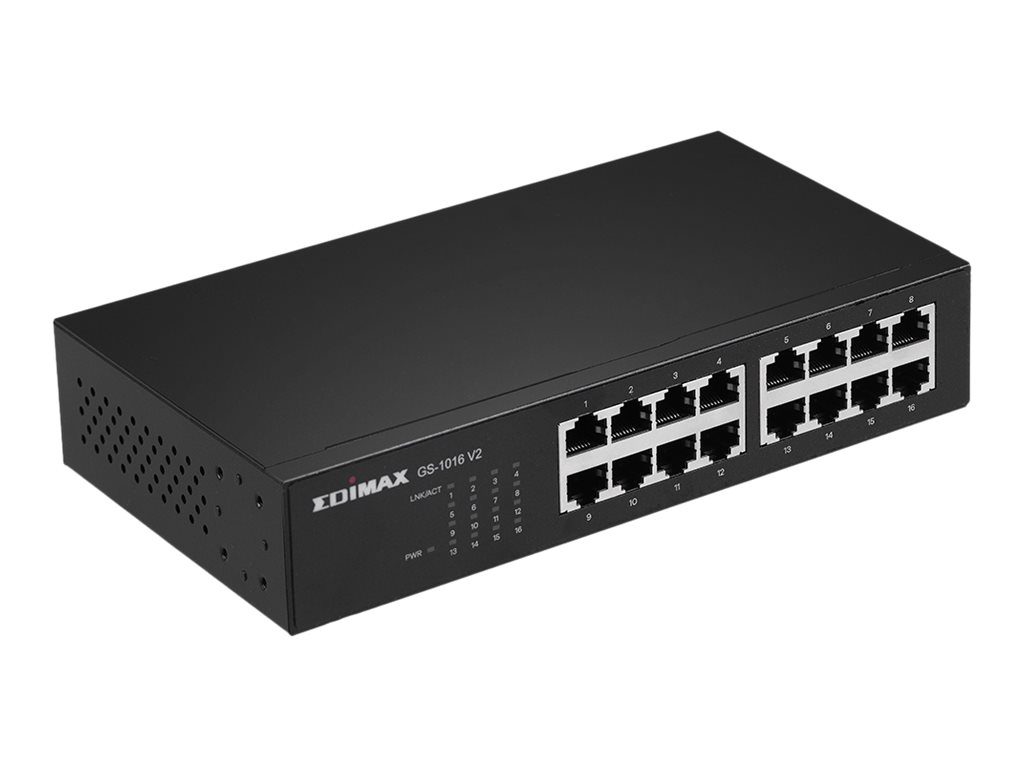

Edimax GS-1016 V2 network switch Managed Gigabit Ethernet (10/100/1000) Black

Efficiently Upgrade or Expand Networks with High-Performance Gigabit SpeedFor Home, Small Office and EnterpriseGigabit High-Speed NetworkDelivers up to 2000Mbps of throughput per port at full-duplex mode to servers, workstations and other attached devices to save time when transferring large files.QoS for Improved TrafficSupports 802.1p QoS for ensuring first priority for voice and video traffic for reduced package loss, lower latency and jitter on the network.High Performance and Reliable ConnectionFeaturing IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Loop Detection, Store-and-Forward Architecture which filters fragment & CRC error packets for maximizing network performance.Energy Efficient and Power SavingTo comply with the IEEE802.3az Energy Efficient Ethernet standard to reduce energy consumption and save costs.Plug-and-Play & Flexible DeploymentNo software or configuration required, designed for desktop, wall-mount or rack-mount for flexible deployment.

Management features
Switch type:	Managed
Quality of Service (QoS) support:
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	16
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Network
Networking standards:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology:	10BASE-T, 100BASE-T, 1000BASE-T
Full duplex:
Flow control support:
Auto MDI/MDI-X:
Ethernet LAN data rates:	10,100,1000 Mbit/s
Auto-negotiation:
Data transmission
MAC address table:	8000 entries
Switching capacity:	32 Gbit/s
Throughput:	2000 Mpps
Throughput:	1 Gbit/s
Jumbo frames support:
Jumbo frames:	10000
Transmission method:	Store and forward
Packet forwarding rate (1 Gbps):	1488000 pps
Packet forwarding rate (100 Mbps):	148800 pps
Packet forwarding rate (10 Mbps):	14880 pps
Packet buffer memory:	4.1 MB
Design
Rack mounting:
Product colour:	Black
Housing material:	Metal
LED indicators:	Activity, Link, Power
Wall mountable:
Performance
Fanless:
Power
Power supply included:

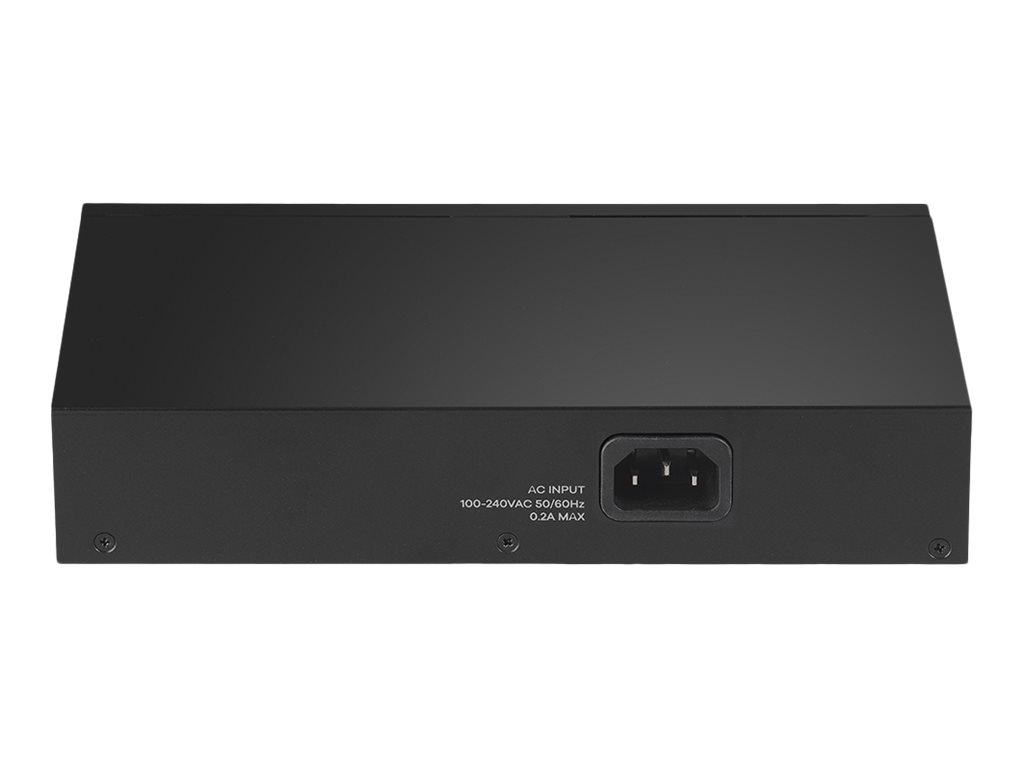

AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 90%
Weight & dimensions
Width:	215 mm
Depth:	133 mm
Height:	42 mm
Weight:	850 g
Packaging data
Rack mount kit:
Logistics data
Harmonized System (HS) code:	85176990
