EVGA 750 GQ power supply unit 750 W 20+4 pin ATX ATX Black

Ready for 4th Generation Intel Core Processors (C6/C7 Idle Mode)Introducing the latest in the EVGA power supply lineup; the GQ series. These power supplies take some of the best features from EVGA award winning power supplies, like EVGA ECO fan mode for near silent operation, Japanese Capacitor Design and a highly efficient design, at an excellent value. These new power supplies are 80 Plus Gold rated and offer an outstanding 5 Year Warranty thats backed by world class EVGA support.

Power
Total power:	750 W
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Input current:	10 A
Combined power (+3.3V):	120 W
Combined power (+12V):	748.8 W
Combined power (+5V):	120 W
Combined power (-12V):	6 W
Combined power (+5Vsb):	15 W
Max output current (+3.3V):	24 A
Max output current (+12V):	62.4 A
Max output current (+5V):	24 A
Max output current (-12V):	0.5 A
Max output current (+5Vsb):	3 A
Ports & interfaces

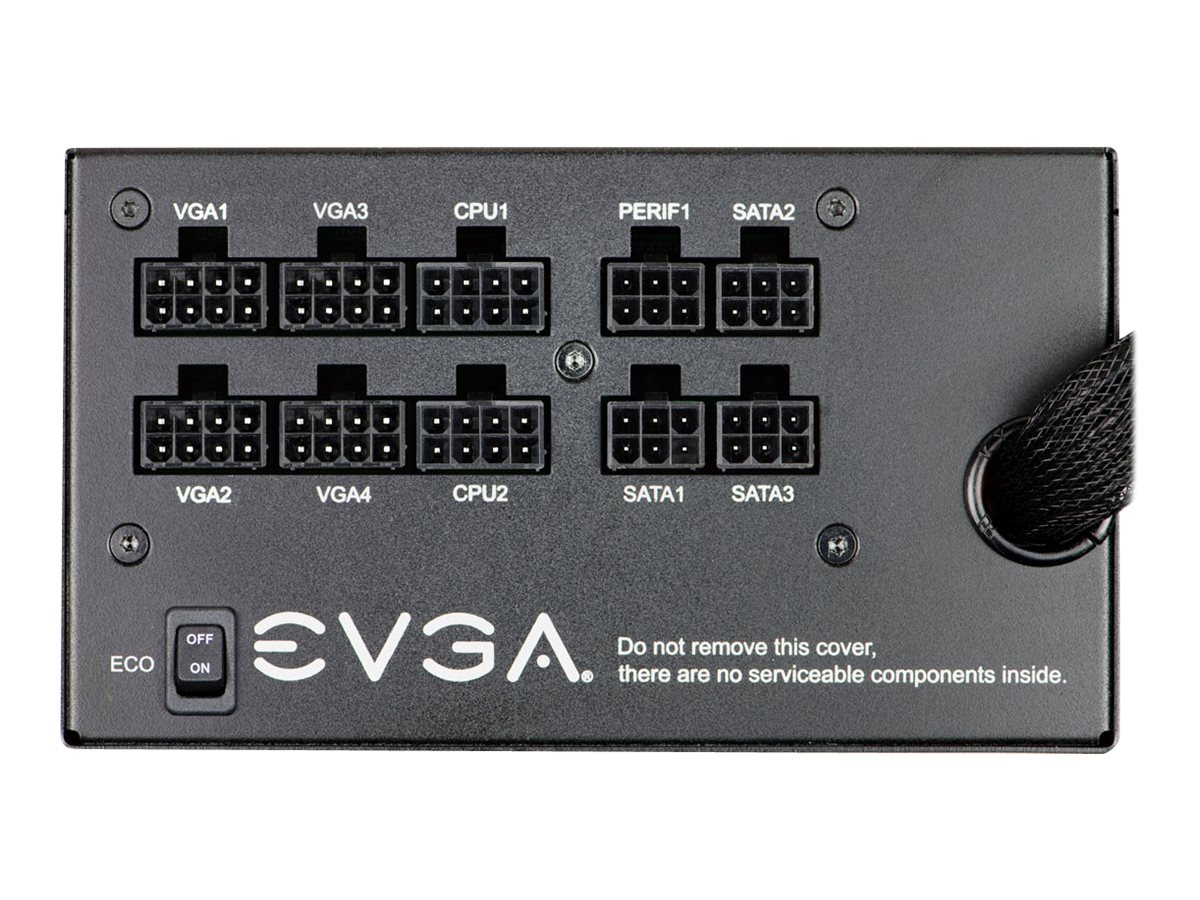

Motherboard power connector:	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin):	3
Number of SATA power connectors:	9
EPS power connector (8-pin):
PCI Express power connectors (6+2 pin):	6
CPU power connector (4+4 pin):
ATX Power connector (24-pin):
Floppy drive power connector:	2
PCI Express connector:
Cabling type:	Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Gold
Certification:	TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Design
Product colour:	Black
Cooling type:	Active
Fan diameter:	13.5 cm
Number of fans:	1 fan(s)
Fan location:	Top
On/off switch:
Operational conditions
Operating temperature (T-T):	0 - 50 °C
Weight & dimensions
Width:	150 mm
Depth:	165 mm
Height:	85 mm
Weight:	3.18 kg
Packaging data
Manual:
Technical details
Sustainability certificates:	RoHS
Logistics data
Harmonized System (HS) code:	84733020
Other features
Warranty card:
