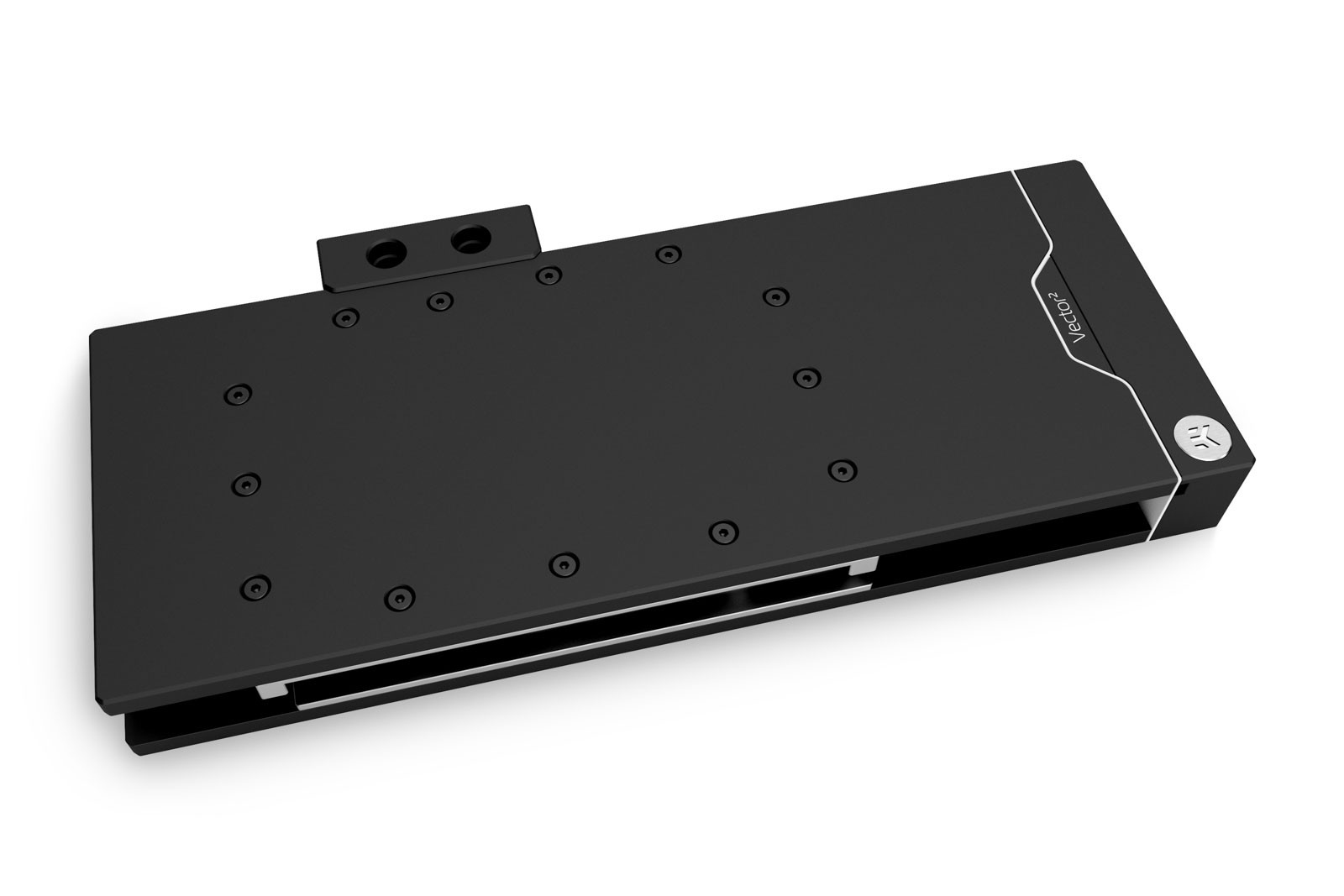

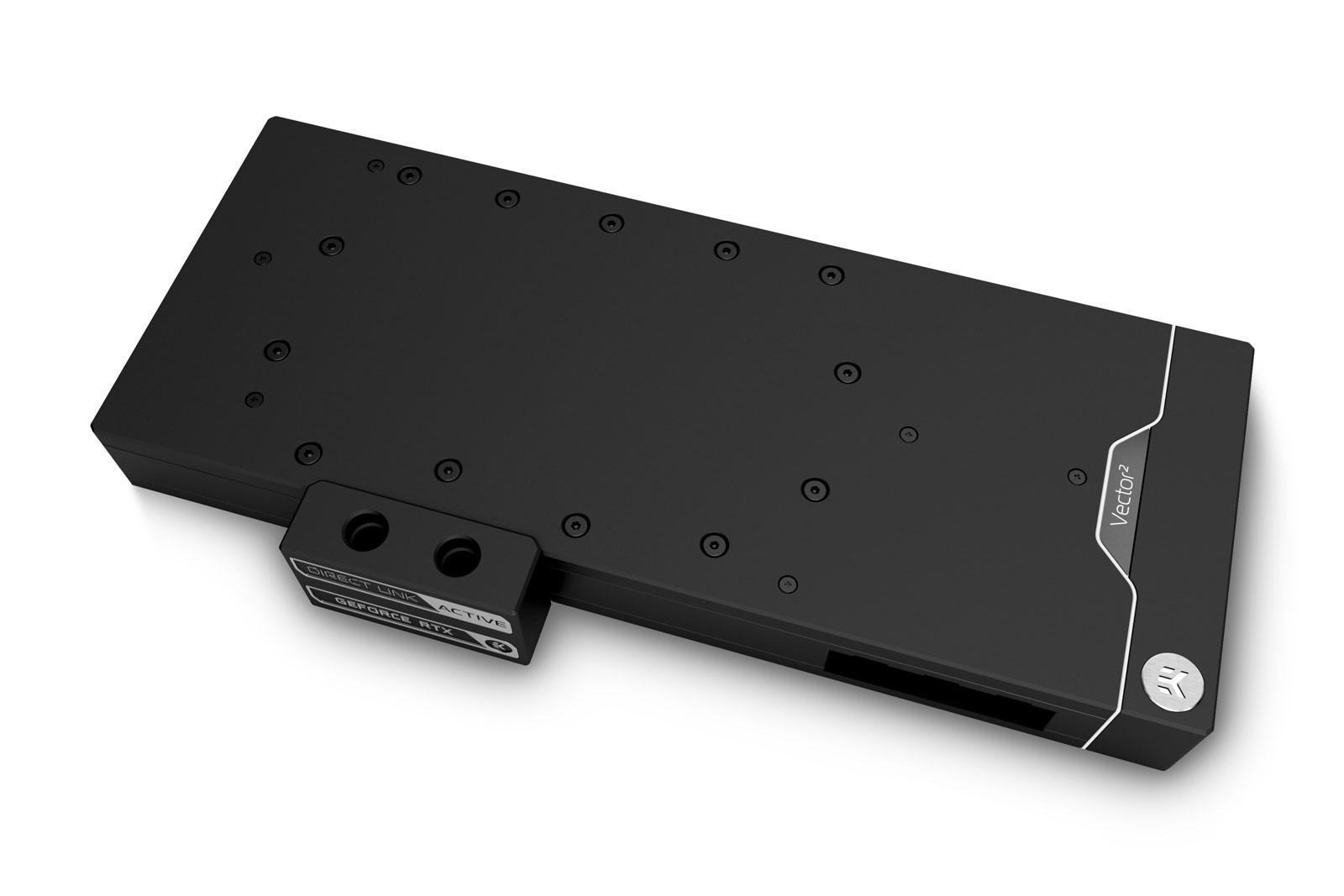

EK Water Blocks 3831109862575 computer cooling system part/accessory Water block

The Ultimate GPU Cooling Enclosure
This ultimate cooling set consists of a high-performance GPU water block and the latest generation of Active Backplate cooling solutions as a single enclosure. The GPU backside cooling is now provided by a full-blown water block with its own copper cold plate and a full-length acrylic top. The connectivity is also taken to another level with the "Direct Link" terminals that implement a conventional 4-port layout, that allows serial and parallel connections from adjacent or opposing sides of the block.

Technical and Visual Master Piece
The new look of the next-gen water blocks is dominated by minimalistic straight lines. An 11mm thick copper cold plate and a full-sized backplate water block are used for all Vector² GPU Active Backplate cooling enclosures. The Acetal version of the Vector² GPU water blocks are all black and stealthy but are still equipped with a sophisticated Addressable RGB light guide that goes around the entire water block, making an elegant visual effect even on the backside.

EK-Matrix7 Support
Matrix7 standardizes the dimensions of the products, including the port position and spacing, making liquid cooling loop assembly more intuitive and easier. EK-Quantum Vector² GPU cooling enclosures follow the EK-Matrix7 standard, making them seamlessly integrate with EK-Quantum Reflection² distribution plates. This brings compatibility with the EK vertical GPU mount l perfect alignment of ports in both horizontal and vertical positions, meaning less time used for planning of the loop, bending tubes, and the end result will still be an epic build.

What is Included in the Package
It includes an EK-Quantum Vector² Trio RTX 3080/90 D-RGB - Nickel + Acetal water block, EK-Quantum Vector² Trio RTX 3080/90 ABP - D-RGB - Nickel + Acetal, and the EK-Quantum Vector² Trio RTX 3080/90 ABP Side Cover - Black along with the mounting gear and necessary TIM.

EK-Quantum Vector² Trio RTX 3080/90 ABP Set D-RGB - Nickel + Acetal
The EK-Quantum Vector² Trio RTX 3080/90 ABP Set D-RGB - Nickel + Acetal GPU water block enclosure is compatible with MSI Trio as well as Suprim RTX 3080, 3080 Ti, and 3090 graphics cards. The Vector water block actively cools the GPU, VRAM (on the front), power stages, and chokes in the VRM (voltage regulation module), the PCB hotspots that are found on the backside of the GPU core, and the VRM (voltage regulation module). On the RTX 3090, the VRAM located on the backside is actively cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas.

Direct Link Terminal
These new Vector² GPU water block and active backplate sets feature a Direct Link flow solution - the first multiple block solution to implement a conventional 4-port terminal layout. That allows serial and parallel connections from adjacent or opposing sides of the block. It was made possible by the addition of a machined brass insert in the terminal itself that diagonally links the water block directly to the active backplate inside the acetal terminal. Direct Link proves invaluable when flexibility is required for the right setup, like in a case of a distribution plate or vertical GPU mount.

Rotatable Magnetic Covers
Sleek magnetic covers are used to conceal the terminal screws, which allows rotating the branding when the GPU water block and active backplate enclosure is inverted in the case, or being used on a vertical GPU mount.

Addressable D-RGB Compatibility
A dense D-RGB LED strip illuminates the parting line of the stand-out element on both sides of the block. This subtle effect allows vivid displays of color while the block remains entirely black. The individually addressable RGB LED is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header (Pinout: +5V | Data | Blocked | Ground).

Vector² Water Blocks Won an iF Design Award
EK s premium water blocks from the Quantum Vector² product line boast an iF Design Awards for 2022. These prestigious awards signify top-tier design levels delivered by our products to both consumers and the design community. Not only do Vector² water blocks have aesthetically pleasing looks to deserve these awards, but they also bring patent-pending technologies and valuable features to the table.
