EK-Quantum Vector N+ RX 6800XT/6900XT is a 2nd generation Vector GPU water block from the EK Quantum Line. It is made for SAPPHIRE NITRO+ 6800XT and 6900XT graphics cards based on the latest AMD RDNA2 architecture. For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.

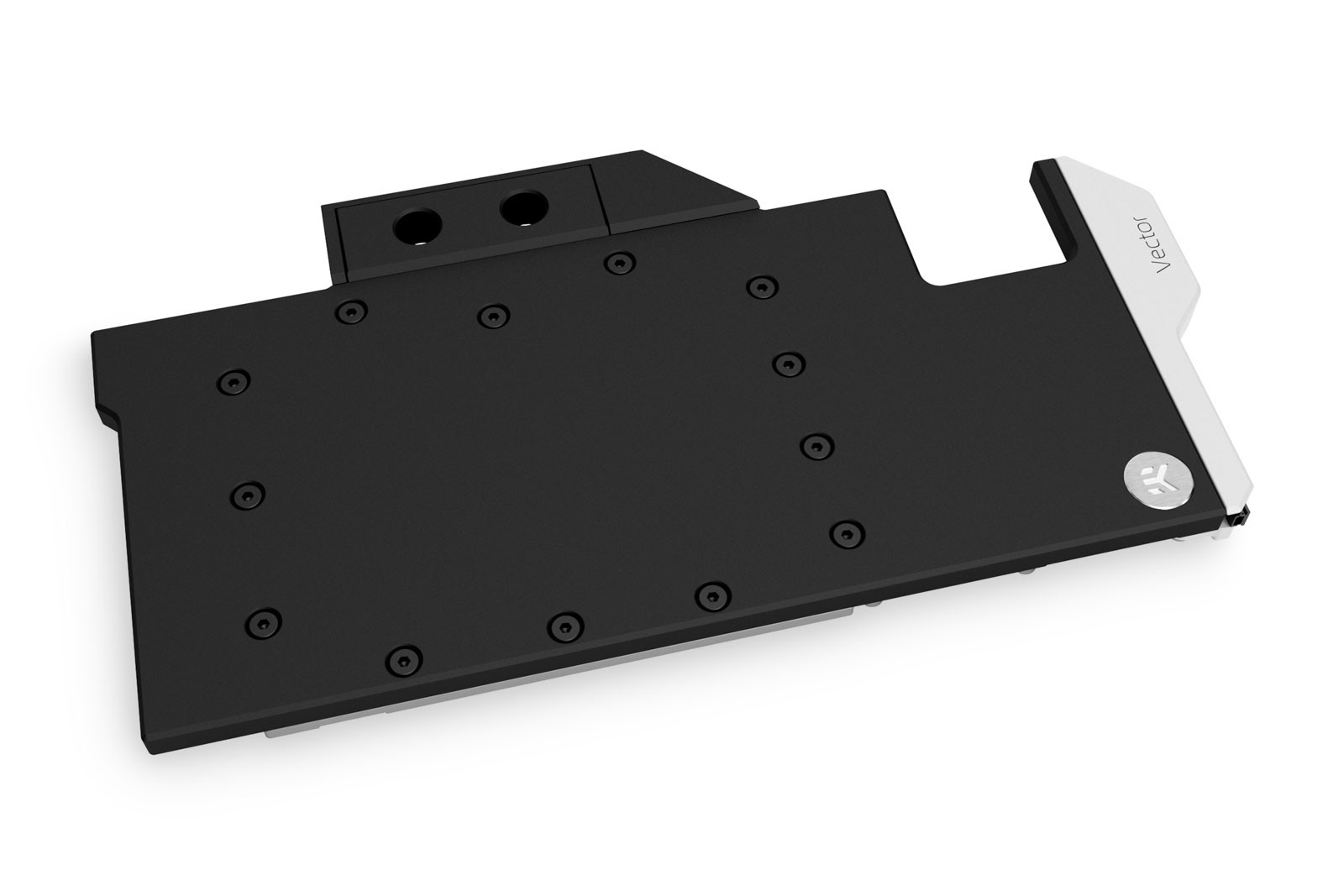

EK-Quantum Vector N+ RX 6800XT/6900XT water block for SAPPHIRE NITRO+ GAMING RX 6800 XT and 6900 XT GPUs

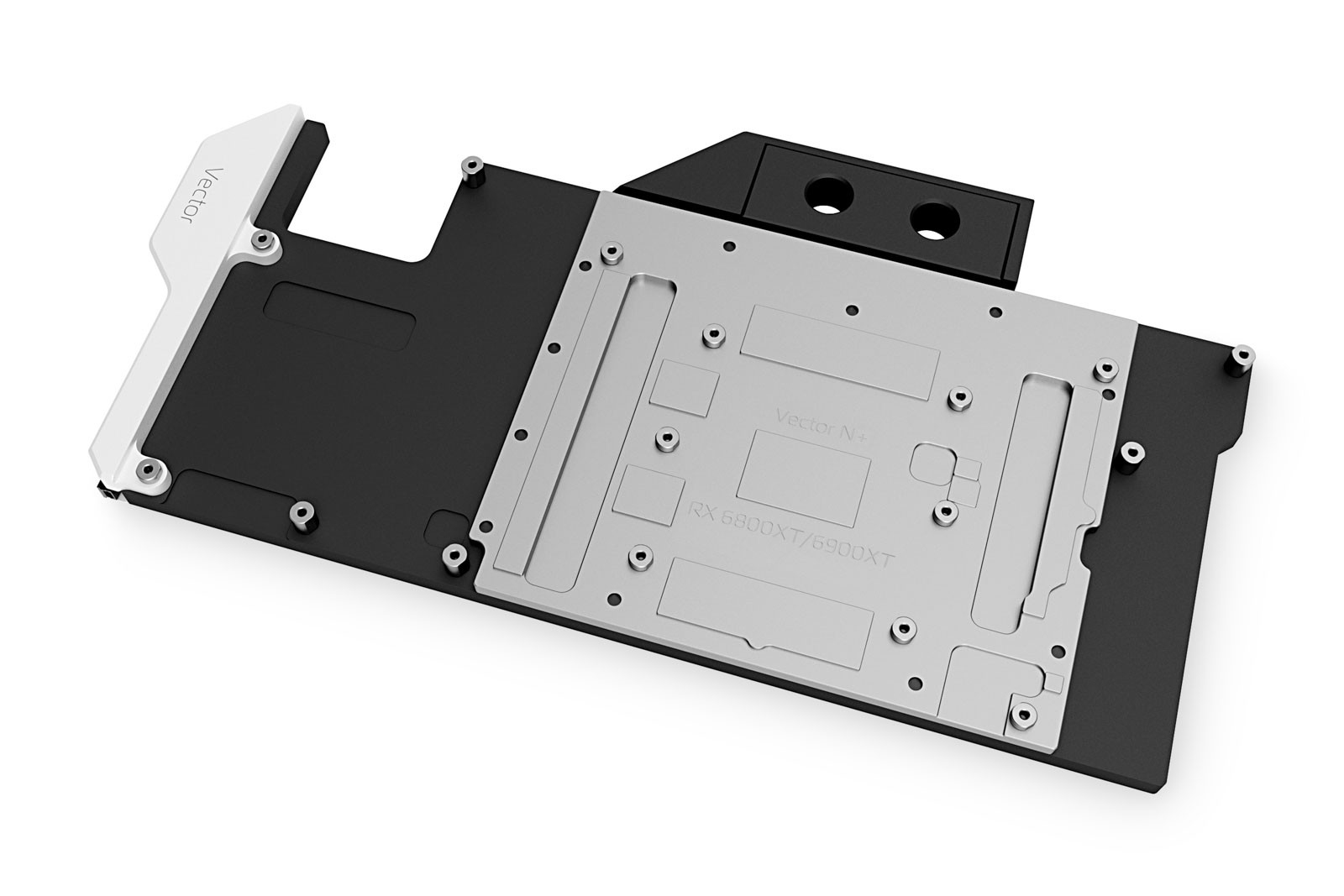

EK-Quantum Vector N+ RX 6800XT/6900XT water block is compatible with SAPPHIRE NITRO Radeon RX 6800XT, and 6900XT graphics cards. The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with power stages as well as Inductor chokes to maximize cooling and minimize the chances of coil whine.

These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.

D-RGB lighting on EK-Quantum N+ Vector RX 6800XT/6900XT D-RGB water block
The aesthetic end-piece is housing the addressable D-RGB LED strip. These water blocks boast a total of 9 individually addressable RGB LEDs, and a LED-lit terminal. They are compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.

Backplate for the N+ 6800XT/6900XT water block
EK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core and backside of the printed circuit board VRM and VRAM sections.
