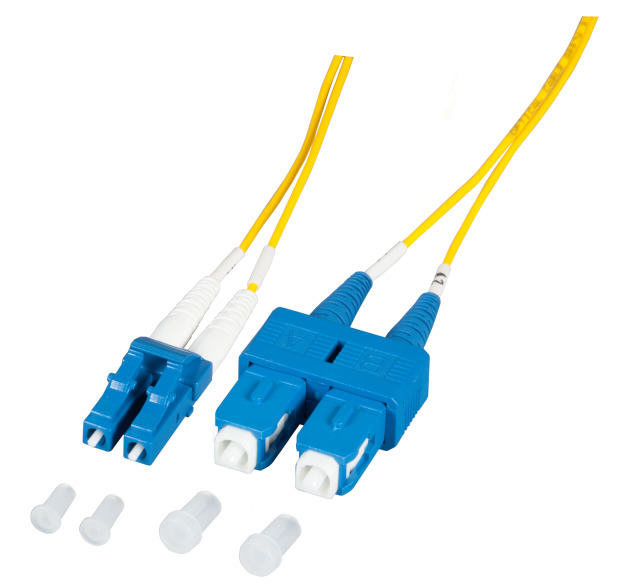

EFB Elektronik O0360.10-1.2 fibre optic cable 10 m 2x LC 2x SC OS2 Yellow

The 1.2 mm Duplex Jumper are characterized due to the small outer diameter. This is an advantage for the installers when they have limited space for cable management. The small outer diameter is also useful in projects with high density areas.

Characteristics
Space-saving installation due to the small outer diameter
Halogen free and flame retardant according to IEC-60754-2, IEC-60332-1 and IEC-61034
Connector in colour of category (OS2 is blue)
LC connector in Compact design
EFB fiber connectors meet the quality class Grade A/1 for Multimode according to IEC-61753-122-2 (Draft)
pre-coded
100% tested and with individuell measuring protocol

Features
Cable length:	10 m
Fibre optic type:	OS2
Connector 1:	2x LC
Connector 2:	2x SC
Connector 1 gender:	Male
Connector 2 gender:	Male
Product colour:	Yellow
Jacket material:	Low smoke zero halogen (LSZH)
Full duplex:
Core diameter:	9 µm
Cladding diameter:	125 µm
Fiber mode structure:	Single-mode
Insertion loss:	0.25 dB
Certification:	IEC-60754-2, IEC-60332-1, IEC-61034, IEC-61753-1, EN 50265-2-1
Technical details
Sustainability certificates:	RoHS
Doesn't contain:	Halogen
Operational conditions
Operating temperature (T-T):	-20 - 75 °C
Storage temperature (T-T):	-20 - 85 °C
Weight & dimensions
Cable diameter:	1.2 mm
Bending radius:	3.8 mm
Logistics data
Harmonized System (HS) code:	85447000
