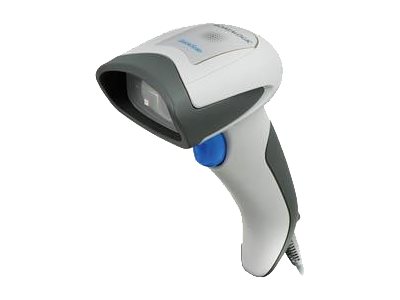

Datalogic QuickScan I QD2430 Handheld bar code reader 2D White

The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.The QuickScan QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure without sacrificing Datalogic s well-known durability.Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code. The result is a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency.The QuickScan QD2400 imager reads typical printed linear bar codes as well as complex 2D bar codes displayed on the screen of a mobile device or loyalty cards. The QD2400 imager provides a fast, reliable scan from an elegant and robust 2D imager.Imaging technology meets or exceeds the productivity compared to laser scanners and provides the additional advantages of a lower cost-of-ownership and greater product reliability over the long term.- Outstanding snappiness.- Omnidirectional reading.- Reduced visual stress with LED-based aiming system.- Datalogic s patented Green Spot technology for good-read feedback.- Advanced motion tolerance optics.- Host download capability ready.

Scanning
Type:	Handheld bar code reader
Scanner type:	2D
2D (matrix & stacked) barcodes supported:	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
Wavelength:	650 nm
Tilt reading angle:	0 - 360°
Pitch reading angle:	0 - 65°
Yaw reading angle:	0 - 60°
Ports & interfaces
Connectivity technology:	Wired
Standard interfaces:	RS-232, USB, Keyboard wedge
Performance
Product colour:	White
International Protection (IP) code:	IP42
Protection features:	Shock resistant
Power
Power source type:	DC
Input voltage:	4.5 - 14 V
Power consumption:	140 mA
Weight & dimensions
Weight:	145 g
Width:	41 mm
Depth:	91 mm
Height:	163 mm
Packaging data
Cables included:
Operational conditions
Operating temperature (T-T):	0 - 50 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	0 - 95%
Technical details
Sustainability certificates:	RoHS
Logistics data
Harmonized System (HS) code:	84716070
