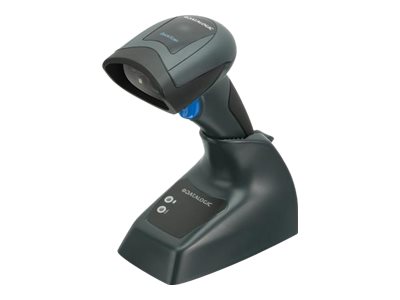

Datalogic QuickScan QBT2430 BT Handheld bar code reader 1D/2D Black

Ideally suited for applications at the point-of-sale (POS), the QuickScan QBT2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code.Featuring Bluetooth® Wireless Technology, the QuickScan QBT2400 2D imager can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v3.0 compliant device.The QBT2400 2D imager can also be connected to any tablet using either iOS or Android operating systems via the Bluetooth HID profile.With the popularity of 2D bar codes spreading across all market segments of the data capture industry, the QuickScan QBT2400 2D imager enters the arena with more affordable pricing and virtually no drawbacks with area imaging technology. It is also capable of reading mobile phone displays and loyalty cards at the POS, as well as being used for shelf replenishment, receiving goods and price checking.Features- Bluetooth® Wireless Technology with up to 25.0 m / 82.0 ft range- Compatible with Android and iOS devices through the Bluetooth HID profile- Easy, tool-free, user-replaceable long lasting Lithium-Ion battery- Alternative battery recharging through USB / Micro USB cable- Latch mechanism secures the reader in the cradle providing stable mobility for use on carts- Reduced visual stress with LED-based aiming system- Datalogic s patented Green Spot technology for good-read feedback- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Scanning
Type:	Handheld bar code reader
Scanner type:	1D/2D
Linear (1D) barcodes supported:	EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN, U.P.C.
2D (matrix & stacked) barcodes supported:	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Working distance:	16 cm
Light levels (direct sunlight):	0 - 100000 lx
Wavelength:	650 nm
Pitch reading angle:	-65 - 65°
Yaw reading angle:	-60 - 60°
Ports & interfaces
Connectivity technology:	Wired & Wireless
Standard interfaces:	Bluetooth, RS-232
Wireless range:	25 m
Bluetooth version:	3.0+HS
Operating frequency:	2400 MHz
Performance
Product colour:	Black
Housing material:	Plastic
Keys quantity:	1 keys
LED indicators:
Buzzer:
Built-in display:
Power
Power source type:	Battery
Battery technology:	Lithium-Ion (Li-Ion)
Battery type:	Built-in battery
Number of batteries supported:	1
Battery capacity:	1400 mAh
Number of reads per charge:	30000
Charging time:	3 h
Input voltage:	4.75 - 14 V
Weight & dimensions
Weight:	200 g
Width:	41 mm
Depth:	91 mm
Height:	163 mm
Base weight:	230 g
Packaging data
Cables included:	RS-232
Charging base:
Operational conditions
Operating temperature (T-T):	0 - 50 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	5 - 95%
Technical details
Sustainability certificates:	RoHS
Logistics data
Harmonized System (HS) code:	84716070
Other features
Compatible operating systems:	Android, iOS
