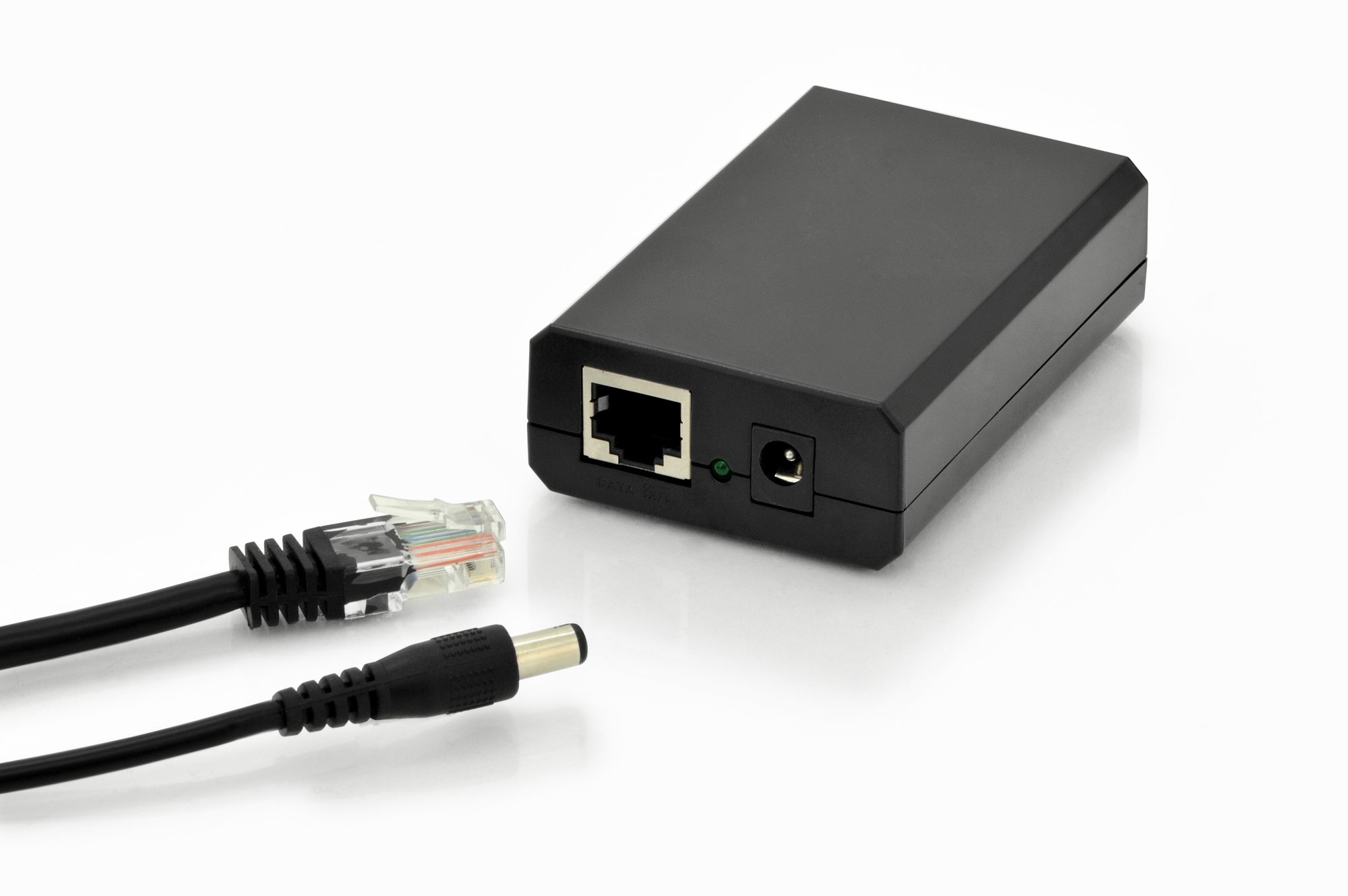

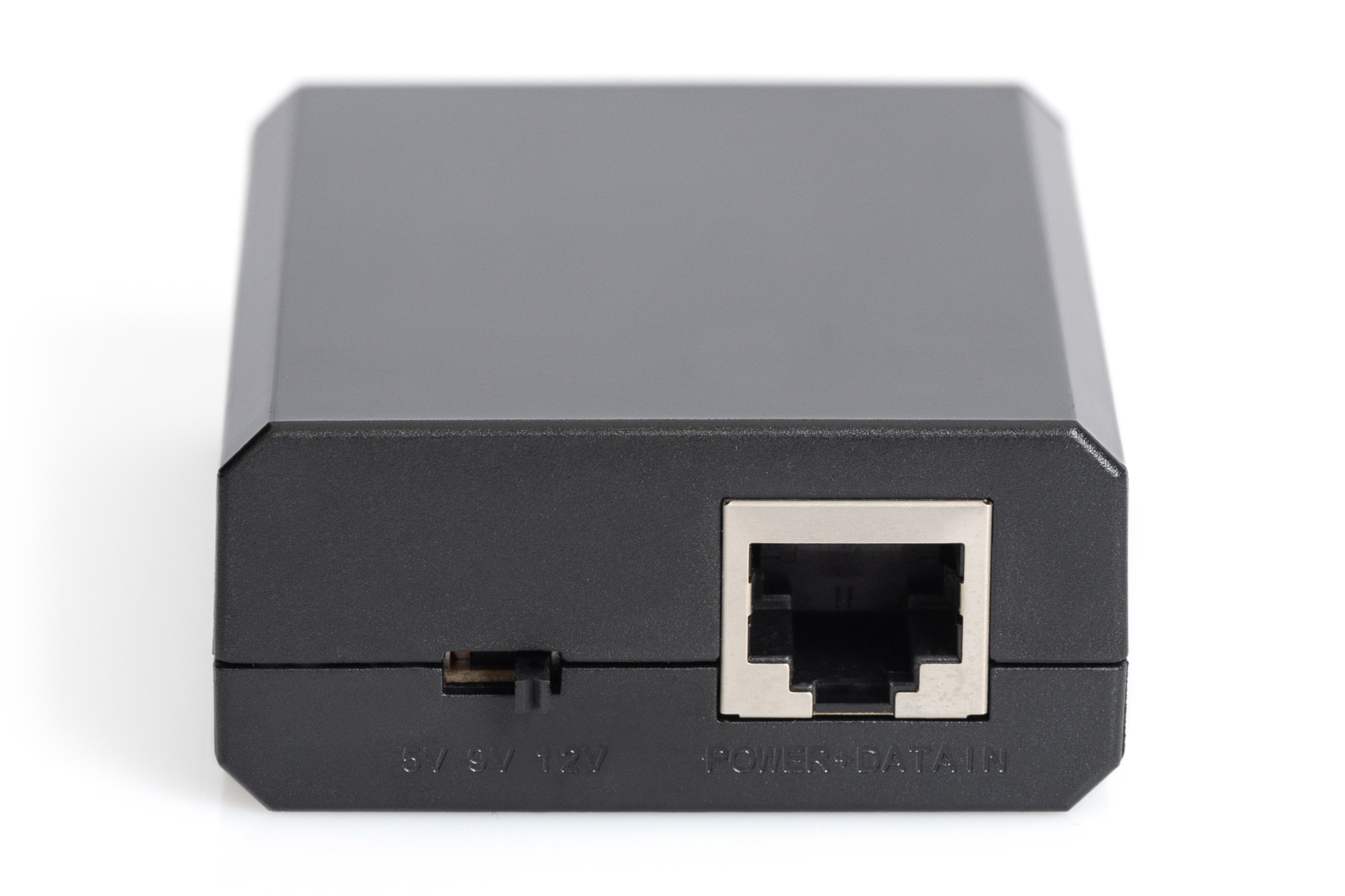

Integrates Power over Ethernet technology to older non PoE network devices- Gigabit Ethernet Speed- Fanless design ensures a quiet operation- Requires no external power supply unit- Adjustable output: 5V/2A , 9V/1A, 12V/1A- Support 5.5mm and 3.5mm power jackThe DIGITUS PoE Splitter provide data and power via a single Ethernet Cable to devices, which are not supporting Power over Ethernet. Just connect the input of the Splitter to a PoE Switch or a PoE Injector and the output side to a non-PoE network device such as an access point, IP Phone or a Camera to provide Power and Data. The Extender is self powered by PoE, so there is no additional power supply needed. The output voltage can be regulated via a dip switch to 5V , 9V or 12V. So this Splitter expand your network where you wish to place network device where are no power outlets available.
| Network | |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE): |  |
| Networking standards: | IEEE 802.3af |
| Features | |
| Product colour: | Black |
| LED indicators: | PoE, Ready |
| Country of origin: | China |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports: | 2 |
| DC-in jack: | |
| Power | |
| Output power: | 12 W |
| Input voltage: | 34 - 57 V |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Weight & dimensions | |
| Weight: | 80 g |
| Dimensions (WxDxH): | 55 x 80 x 23 mm |
| Packaging data | |
| Package length: | 15.3 cm |
| Package width: | 80 mm |
| Package depth: | 153 mm |
| Package height: | 25 mm |
| Package weight: | 130 g |
| Package volume: | 306 cm³ |
| Package type: | Box |
| Packaging content | |
| Number of products included: | 1 pc(s) |
| Power cord included: | |
| Manual: | |
| Logistics data | |
| Harmonized System (HS) code: | 85044095 |
| UK Trade Tariff code: | 85176200 |
