- Details

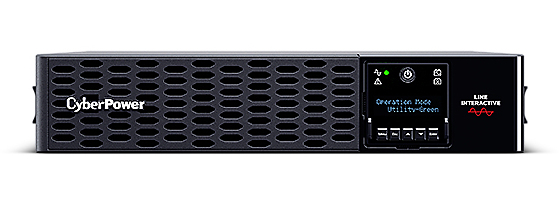

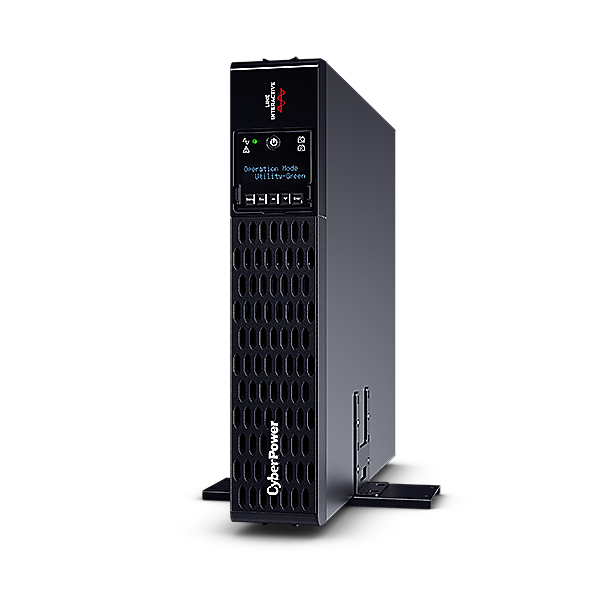

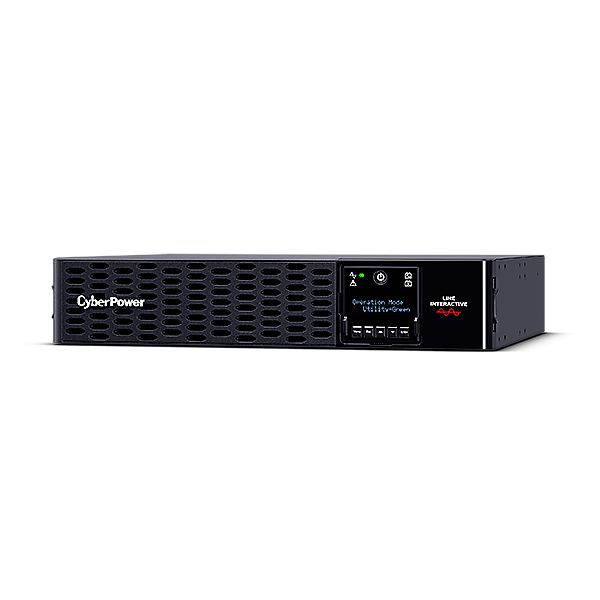

PR1500ERTXL2UCN
CyberPower PR1500ERTXL2UCN with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality. The UPS s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. The quick charging technology allows fast and safe battery charging. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
| Features | |
| UPS topology: | Line-Interactive |
| Output power capacity: | 1.5 kVA |
| Output power: | 1500 W |
| Waveform: | Pure sine |
| Input operation voltage (min): | 131 V |
| Input operation voltage (max): | 302 V |
| Input frequency: | 50/60 Hz |
| Output operation voltage (min): | 200 V |
| Output operation voltage (max): | 240 V |
| Output frequency: | 50/60 Hz |
| Automatic Voltage Regulation (AVR): | Yes |
| Surge energy rating: | 2430 J |
| Response time: | 6 ms |
| Heat dissipation: | 96.7 BTU/h |
| Output power factor: | 1 |
| Emergency Power Off (EPO): | Yes |
| EMI/RFI noise filtering: | Yes |
| Noise level: | 55.5 dB |
| Surge protection: | Yes |

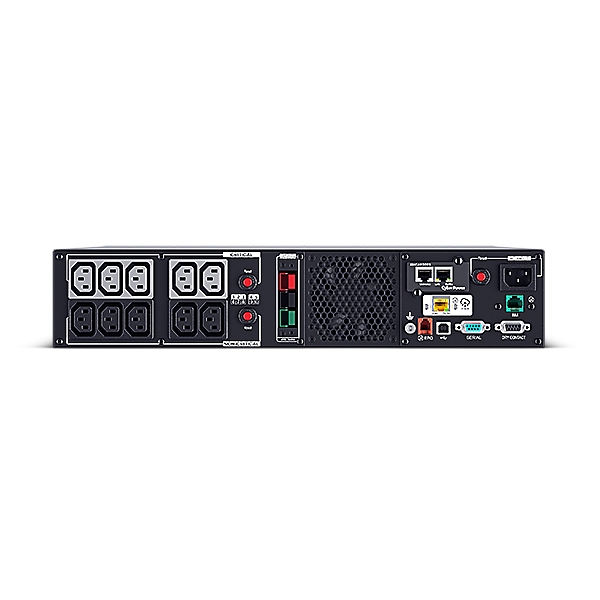

| Ports & interfaces | |
| AC outlet types: | C13 coupler, C19 coupler |
| Power plug: | C14 coupler |
| AC outlets quantity: | 10 AC outlet(s) |
| USB port: | Yes |
| USB port type: | USB Type-B |
| Serial interface: | Yes |
| Serial interface type: | RS-232 |
| Serial ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| Battery | |
| Battery technology: | Sealed Lead Acid (VRLA) |
| Typical backup time at full load: | 6.5 min |
| Typical backup time at half load: | 19.3 min |
| Battery recharge time: | 3 h |
| Hot-swap battery: | Yes |
| Replacement battery cartridge: | RBP0129 |
| Design | |
| Form factor: | Rackmount |
| Product colour: | Black |
| Rack capacity: | 2U |
| Display type: | LCD |
| LED indicators: | Yes |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | 0 - 95 °C |
| Certificates | |
| Compliance certificates: | RoHS, CE, Federal Communications Commission (FCC), cUL, UL, VCCI |
| Weight & dimensions | |
| Width: | 433 mm |
| Depth: | 500 mm |
| Height: | 86.5 mm |
| Weight: | 32 kg |
