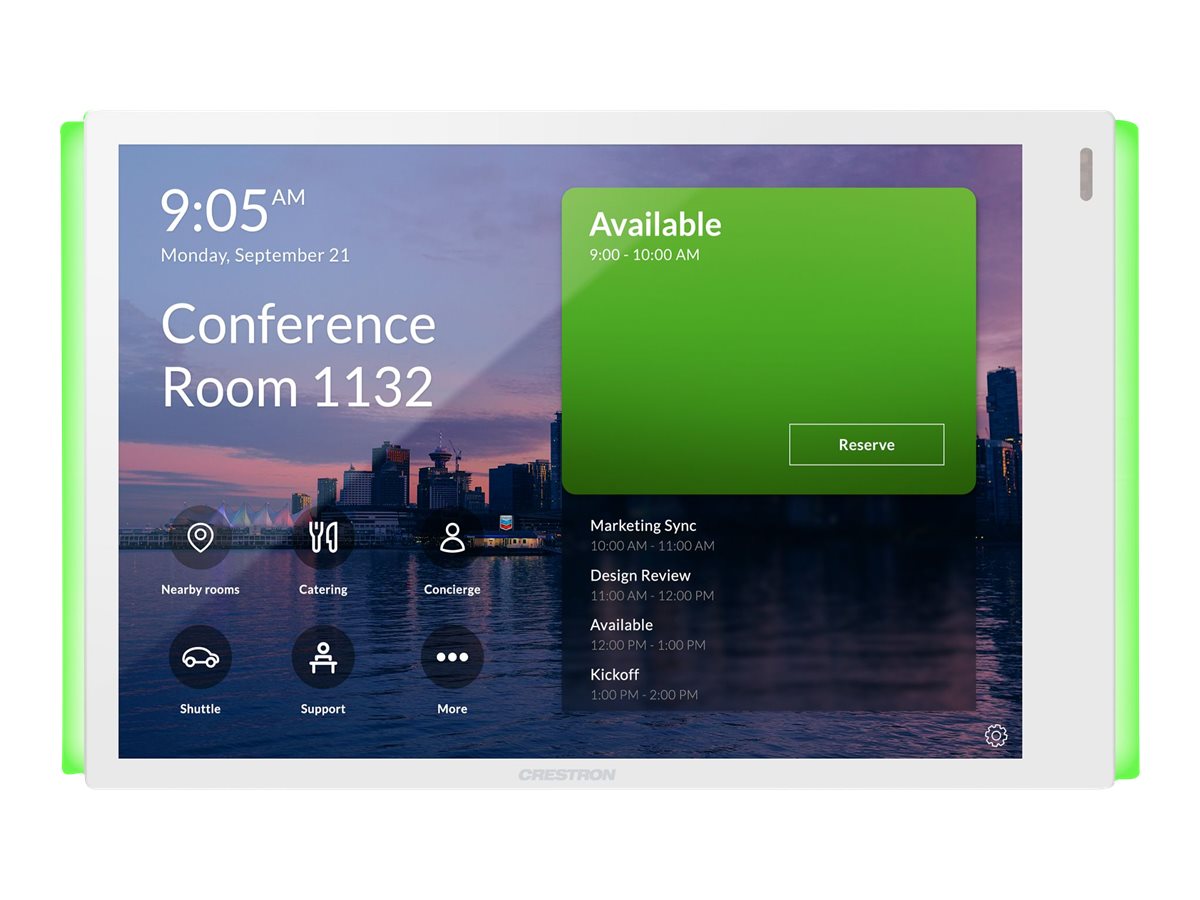

Crestron TSS-770-T-W-S-LB KIT touch control panel 17.8 cm (7") 1280 x 800 pixels

A stylish and versatile wall mount touch screen designed specifically to run the Microsoft Teams® Panels scheduling application. Installs quickly and easily, with simple web-based configuration and cloud-based management and requires no control system or programming.Includes one TSW 770 LB series room availability light bar with the touch screen for a complete room scheduling solution.Crestron TSS-770 series touch screens are designed to enhance and simplify room scheduling across an enterprise. The TSS-770 installs near a meeting room or huddle space to provide a clear indication of its availability and scheduling and integrates seamlessly with the Microsoft Teams Panels scheduling application.Microsoft Teams PanelsThe native Microsoft Teams Panels scheduling application helps to maximize productivity and manage usage for meeting spaces via Microsoft Teams. The touch screen can be configured to use the Microsoft Teams scheduling calendar, allowing users to book meetings through their Microsoft Teams account. If desired, the room can be reserved on the spot for an ad hoc meeting.Built for Enterprise Scheduling ApplicationsThe TSS-770 is engineered to meet the demands of a corporate office, conference center, or education environment. Its 7 in. (178 mm) capacitive display provides an intuitive user interface. A larger 10.1 in. (257 mm) version (TSS 1070 series) is also available.FunctionalThe TSS-770 provides a compact unit for scheduling applications that mounts over a standard electrical box or cutout. The TSS-770 offers high speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected to the network over Wi Fi® communications via a local wireless access point (WAP).Reliable The TSS-770 is purpose built for permanent installation and years of reliable 24/7 operation in a commercial environment. To ensure the latest features are available, the TSS-770 checks nightly for app updates and loads the latest version automatically.Secure The TSS-770 employs enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration. These features protect your network against service interruptions and malicious intrusions.Manageable The TSS-770 features cloud based provisioning and management, which streamlines configuring, monitoring, and updating the touch screen on the network. The TSS-770 also supports SNMP, so it can be monitored by your IT administrator.Status Indicator OptionsThe TSS-770 provides dual high-speed USB 2.0 ports for connecting Crestron room scheduling accessories (sold separately) to the touch screen that enhance an enterprise room scheduling solution.The included TSW-770-LB series light bar provides a 180° visual indication of a room s availability status, illuminating green if the room is available and red when reserved, with options for custom color mixing and programming.The optional SSW, SSW EL, SSC, and SSC EL series hallway signs feature a two sided acrylic sign face that can be custom engraved with the room name or number. The SIW 100 offers a lower profile wall mount status indicator.Bluetooth BeaconThe built in Bluetooth proximity detection beacon works with the Crestron Go App and Crestron App to determine when a mobile device is in or near the same room as the beacon, and signals the mobile app to automatically display the appropriate controls and information for the room.Proximity Sensor and Brightness ControlsThe TSS-770 provides a built-in proximity sensor that wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.Power over EthernetPoE (Power over Ethernet) eliminates the need for a local power supply or any dedicated power wiring. Crestron PoE switches (CEN SW POE 5 or CEN SWPOE 16, sold separately) offer a total networking solution with built in PoE for multiple touch screens. A PoE Injector (PWE 4803RU, sold separately) is also available to support a single touch screen.XiO Cloud ServiceThe TSS-770 is compatible with the XiO Cloud® service, which remotely provisions, monitors, and manages Crestron devices across an enterprise or an entire client base. Built on the Microsoft® Azure® software platform and utilizing Microsoft's Azure IoT Hub technology, XiO Cloud enables installers and IT managers to deploy and manage thousands of devices simultaneously. Unlike other virtual machine based cloud solutions, Azure services provide unlimited scalability.Wall Mount OptionsUsing the bracket provided, the TSS-770 is easily installed over a 2 gang or 3 gang US electrical box, or a 2 gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.

Display
Display diagonal:	17.8 cm (7")
Display resolution:	1280 x 800 pixels
Display type:	TFT
Display brightness:	350 cd/m²
Backlight type:	LED
Aspect ratio:	16:10
Colour depth:	24 bit
Contrast ratio:	850:1
Viewing angle, horizontal:	80°
Viewing angle, vertical:	80°
Audio
Built-in speaker(s):
Performance
Purpose:	Meeting room
Mounting type:	In tabletop
Wi-Fi:
Product colour:	White
Ethernet LAN:
Ethernet LAN data rates:	100 Mbit/s
Cabling technology:	10/100Base-T(X)
Wi-Fi standards:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Housing material:	Plastic
Ports & interfaces
USB 2.0 Type-A ports quantity:	2
RJ-45 ports quantity:	1
Operational conditions
Operating relative humidity (H-H):	10 - 90%
Operating temperature (T-T):	5 - 40 °C
Weight & dimensions
Width:	185 mm
Depth:	57 mm
Height:	106 mm
Weight:	400 g
