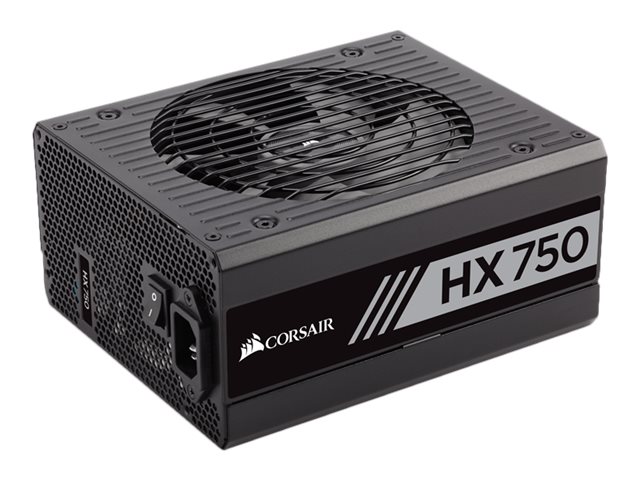

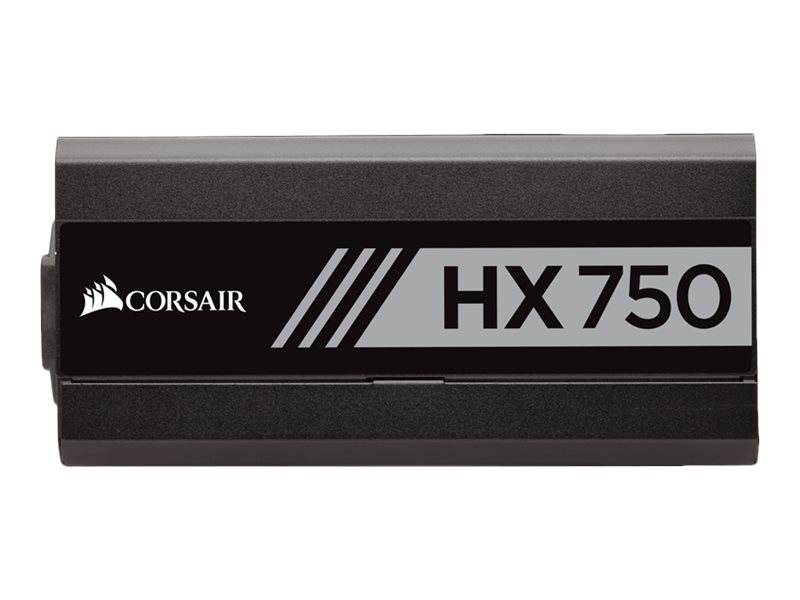

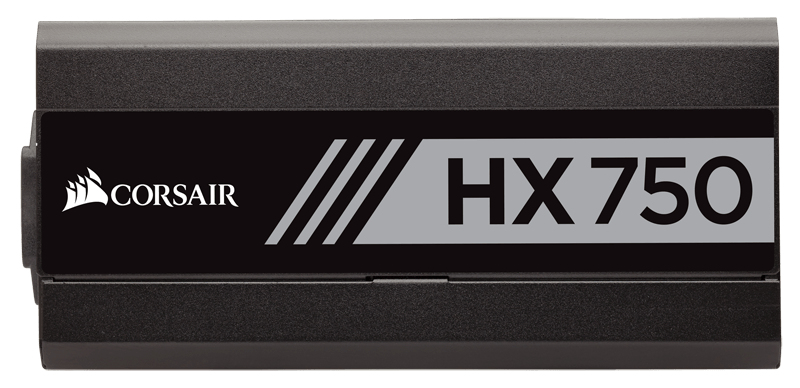

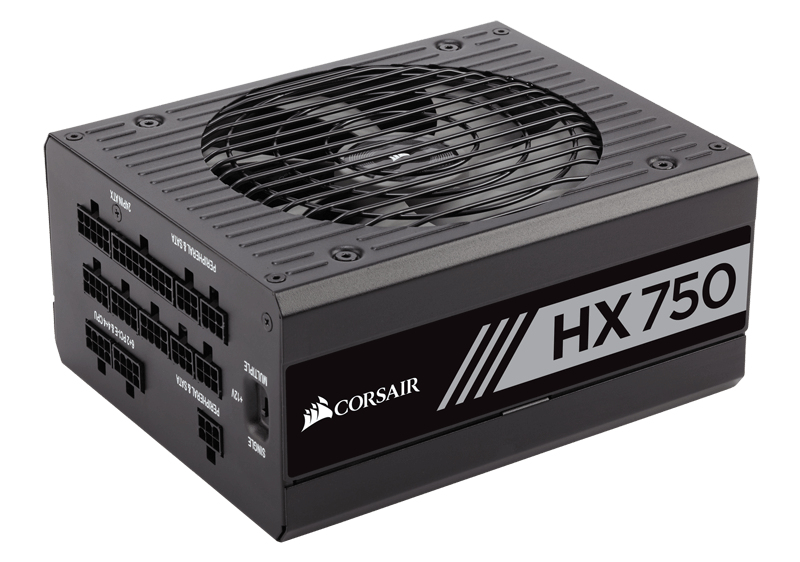

Corsair HX750 power supply unit 750 W 20+4 pin ATX ATX Black

Platinum efficiency, fully modular and virtually silentCORSAIR HX series power supplies give you extremely tight voltage regulation, quiet operation, Platinum-certified efficiency, and a fully modular cable set. Built with all Japanese 105°C capacitors, they re a great choice for high performance PCs where reliability is essential.Quiet, efficient operation80 PLUS Platinum efficiency reduces operating cost and excess heat, and Zero RPM fan mode ensures virtual silence at low and medium loads.100% Japanese 105°C capacitorsPremium internal components ensure solid power delivery and long term reliability.Zero RPM Fan ModeSince the fan doesn t turn on until it s needed, you ll enjoy virtually silent operation at low and medium loads.

Power
Total power:	750 W

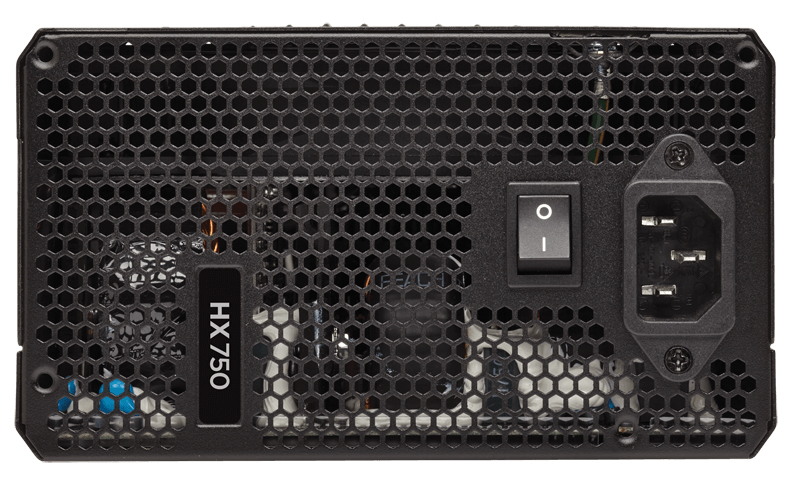

AC input voltage:	100 - 240 V
AC input frequency:	47 - 63 Hz
Input current:	10 A
Combined power (+3.3V):	150 W
Combined power (+12V):	750 W
Combined power (+5V):	150 W
Combined power (-12V):	9.6 W
Combined power (+5Vsb):	15 W
Max output current (+3.3V):	25 A
Max output current (+12V):	62.5 A
Max output current (+5V):	25 A
Max output current (-12V):	0.8 A
Max output current (+5Vsb):	3 A
Power protection features:	Over power, Over voltage, Overheating, Short circuit, Under voltage

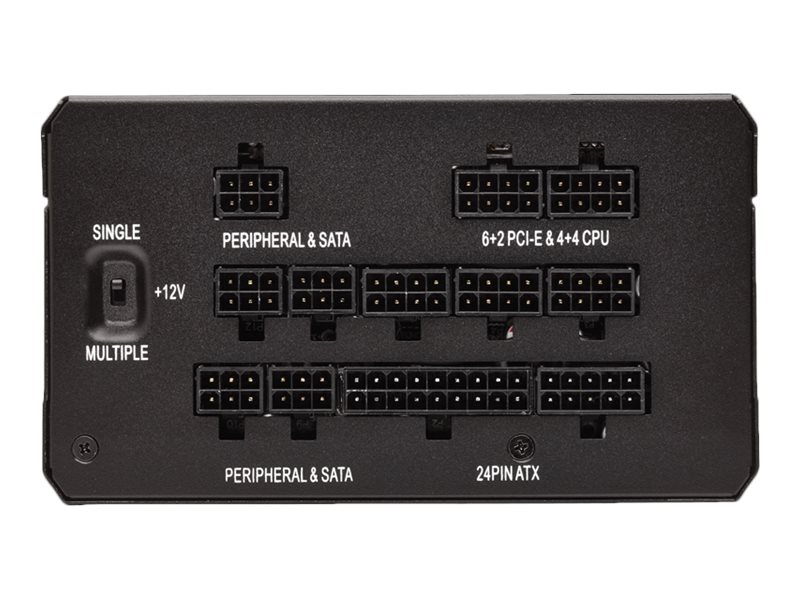

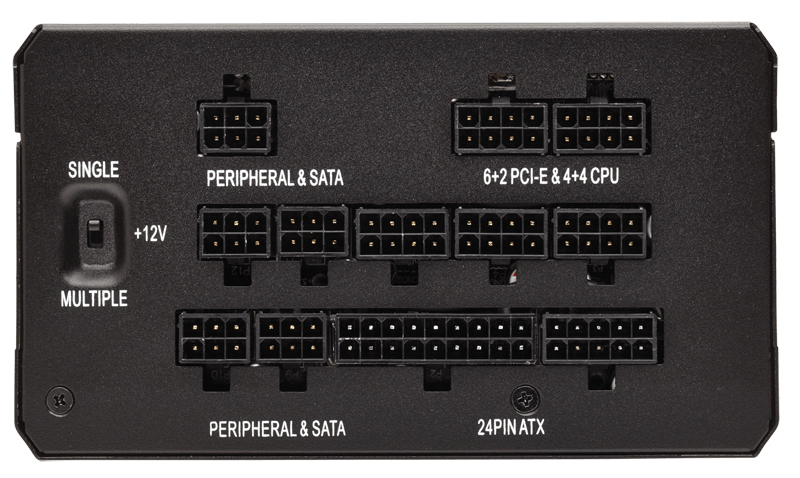

Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin):	4
Motherboard power cable length:	61 cm
Number of SATA power connectors:	8
SATA power cable length:	450 mm
Peripheral (Molex) power cable length:	450,550,650,750 mm
EPS power connector (8-pin):
PCI Express power connectors (6+2 pin):	4
PCI Express power cable length:	67.5 cm
Floppy drive power connector:	1
Floppy disk drive cable length:	10.1 cm

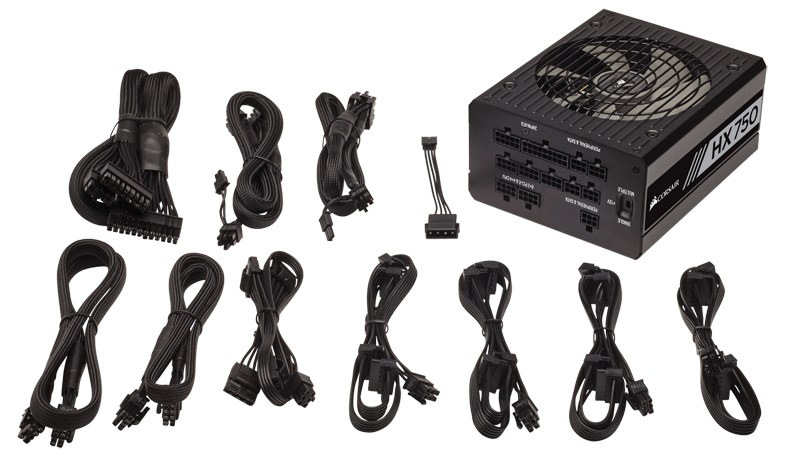

Cabling type:	Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Platinum
ATX version:	2.4
EPS version:	2.92
Certification:	FCC, ICES, CE, UL / CUL, CSA, C-Tick/RCM, TUV, CB, CU, KC Mark, WEEE, RoHS (China), REACH
Design
Product colour:	Black
Cooling type:	Active

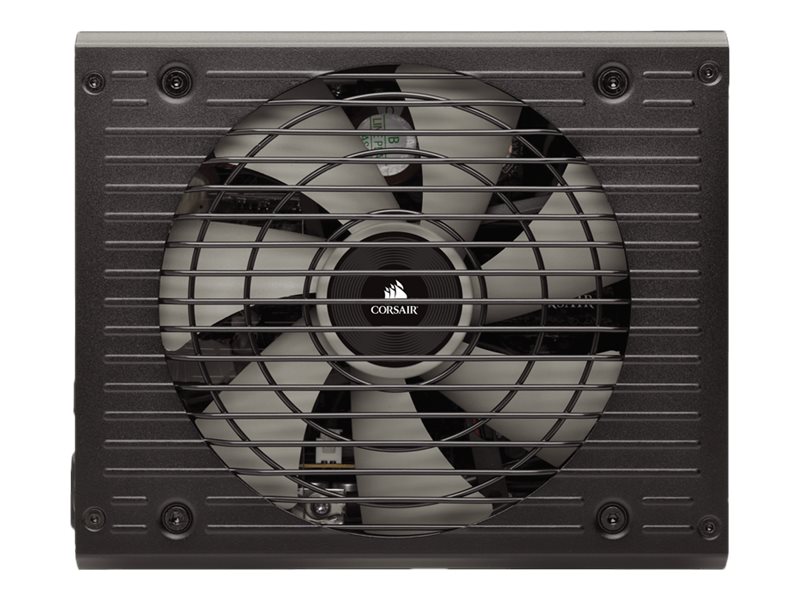

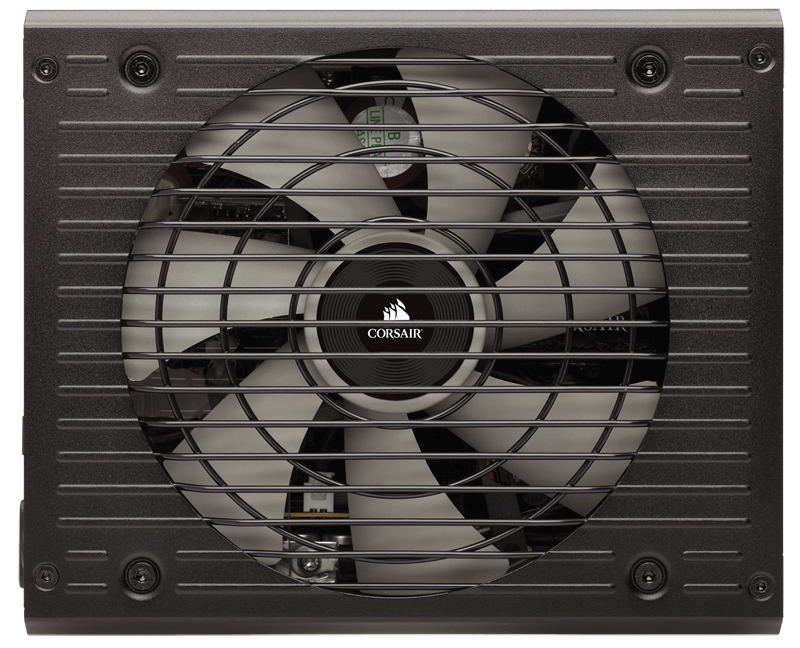

Fan diameter:	13.5 cm
Number of fans:	1 fan(s)
Fan location:	Top
Weight & dimensions
Width:	150 mm
Depth:	180 mm
Height:	86 mm
Weight:	1.92 kg
Packaging data
Manual:
Package type:	Box
Technical details
Sustainability certificates:	RoHS
Logistics data
Harmonized System (HS) code:	84733020
Other features
Warranty card:
